Hygienic Quarter-Turn Latches for Certified Equipment

Hygienic Quarter Turn Latches for Food and Pharmaceutical Machinery

Hygienic quarter turn latches provide secure closure for machine doors, access panels and protective covers in production areas with demanding cleaning requirements. Typical applications include food-processing equipment, beverage production, pharmaceutical machinery, packaging systems and hygienic stainless steel enclosures.

MOVET supplies 3-A-certified stainless steel cam latches with rounded external contours and blue silicone seals. Different actuation types, handles and closing depths allow the latch to be matched to the enclosure design and the required access concept.

Which Hygienic Turn Latch Suits the Application?

The appropriate design depends on how frequently the access point is opened, whether tool-free operation is required and how access to the machine enclosure should be controlled.

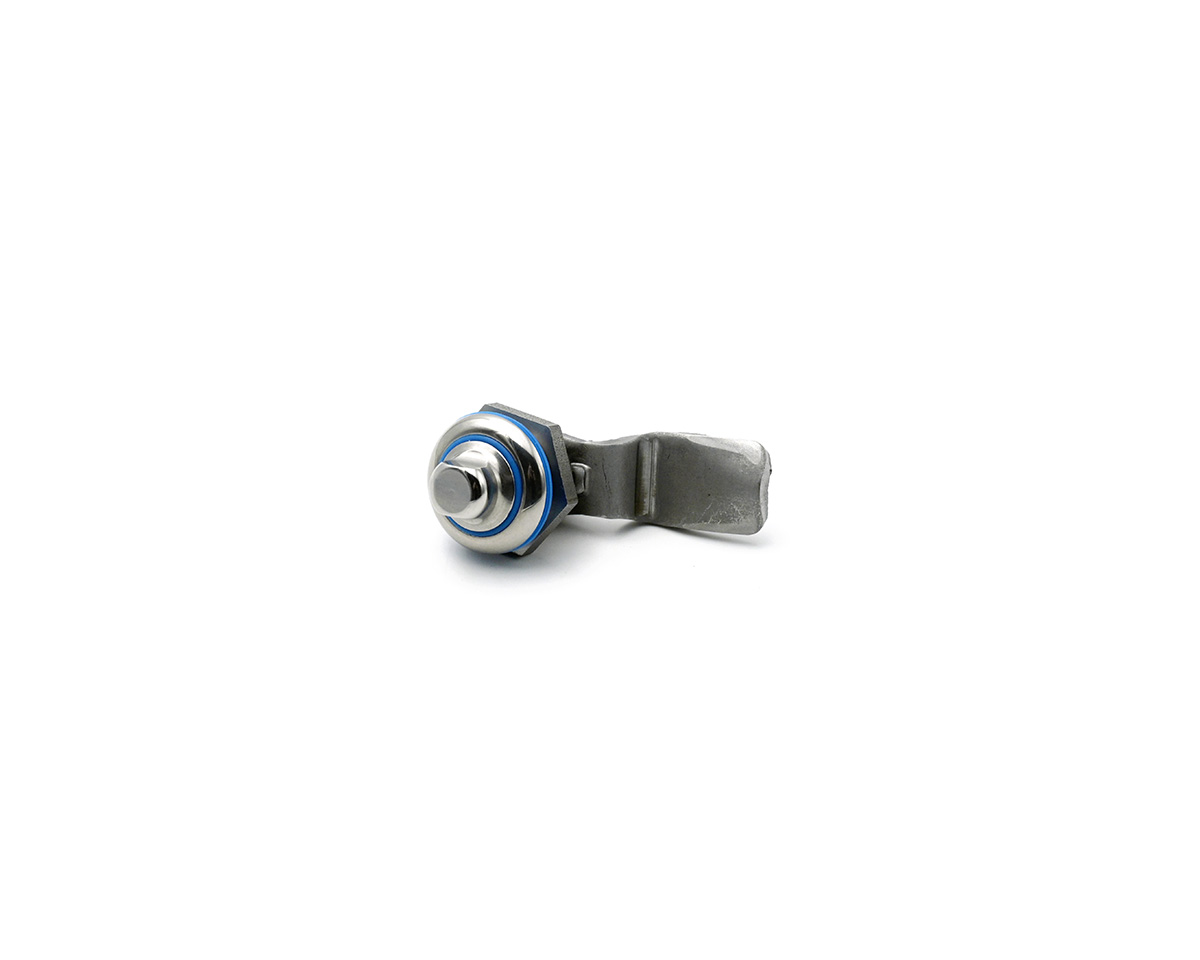

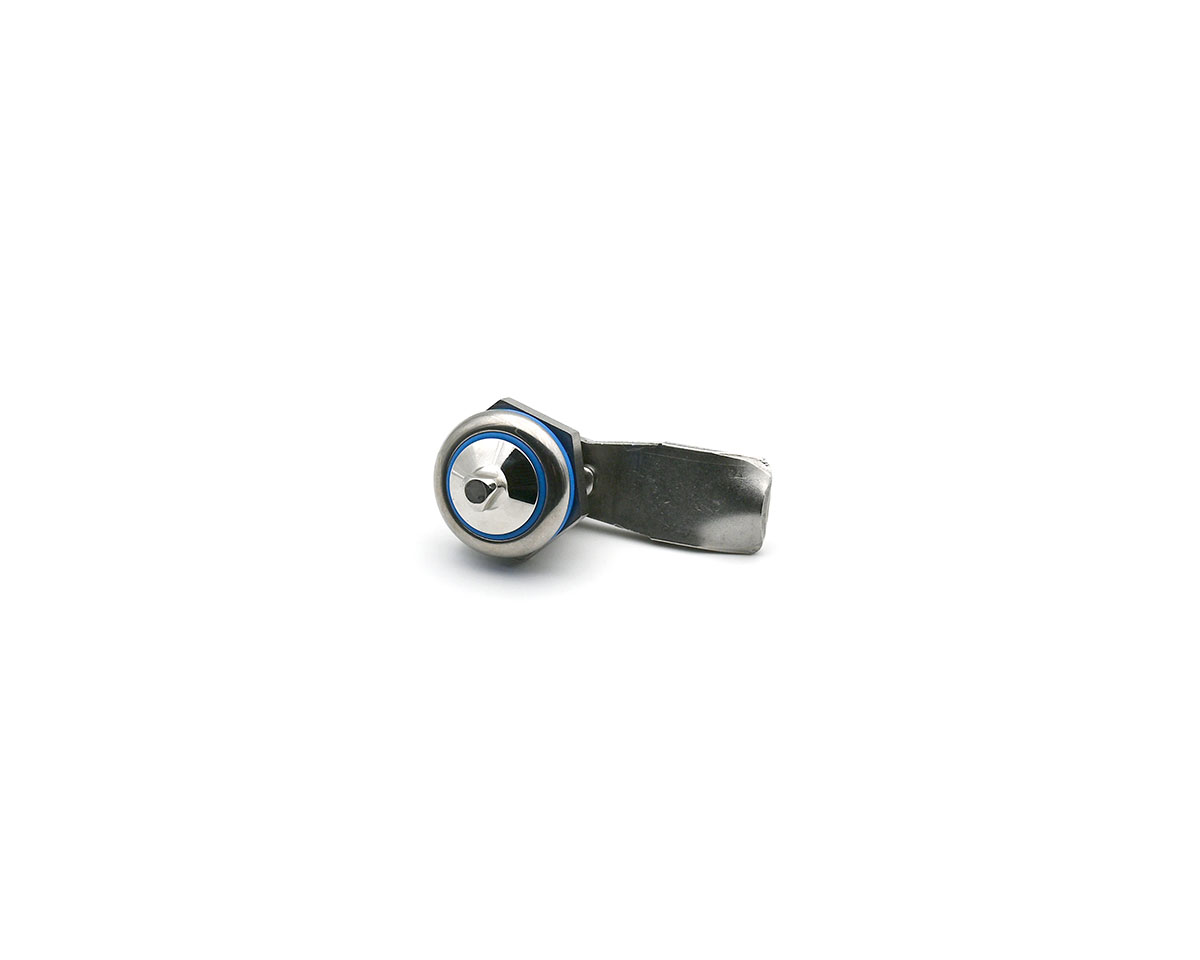

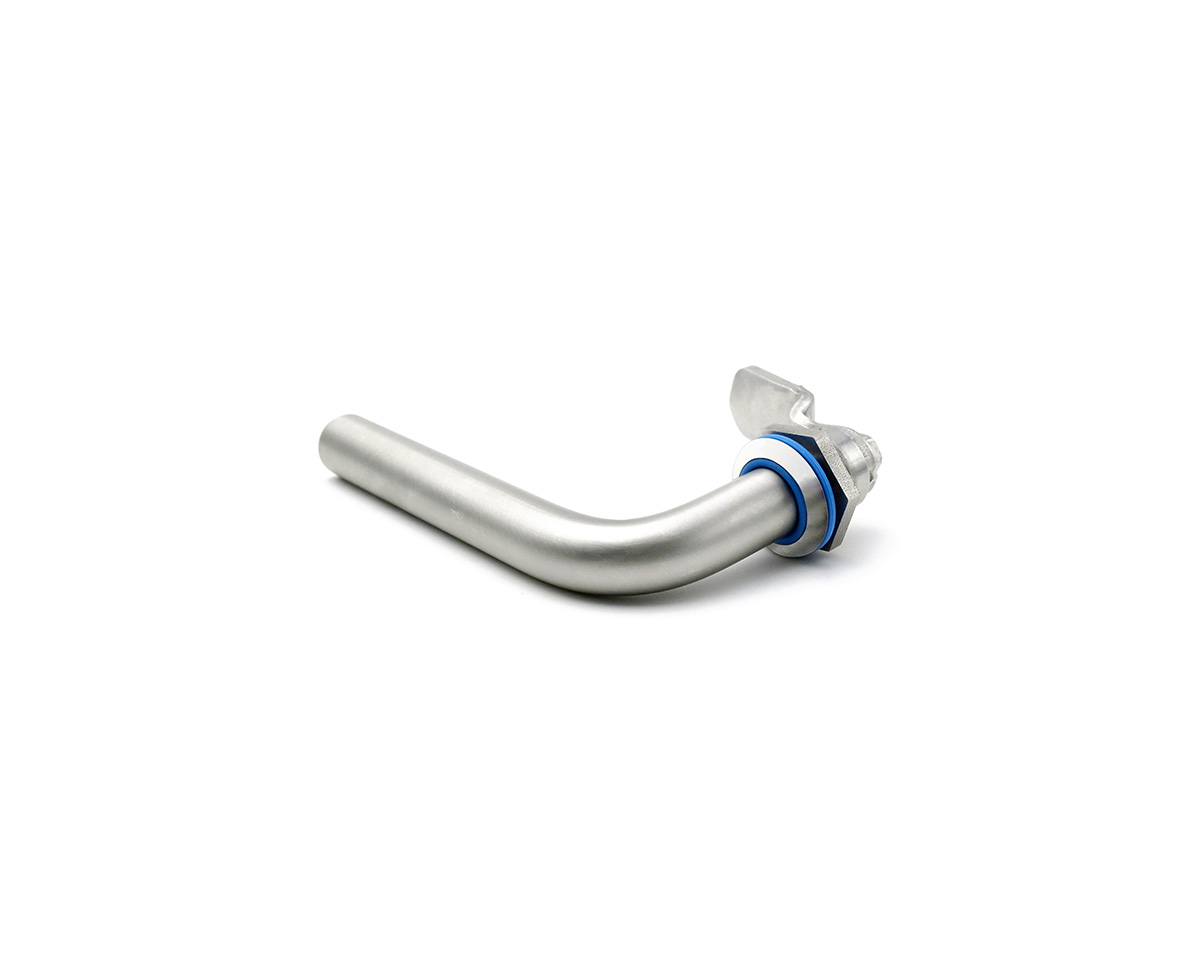

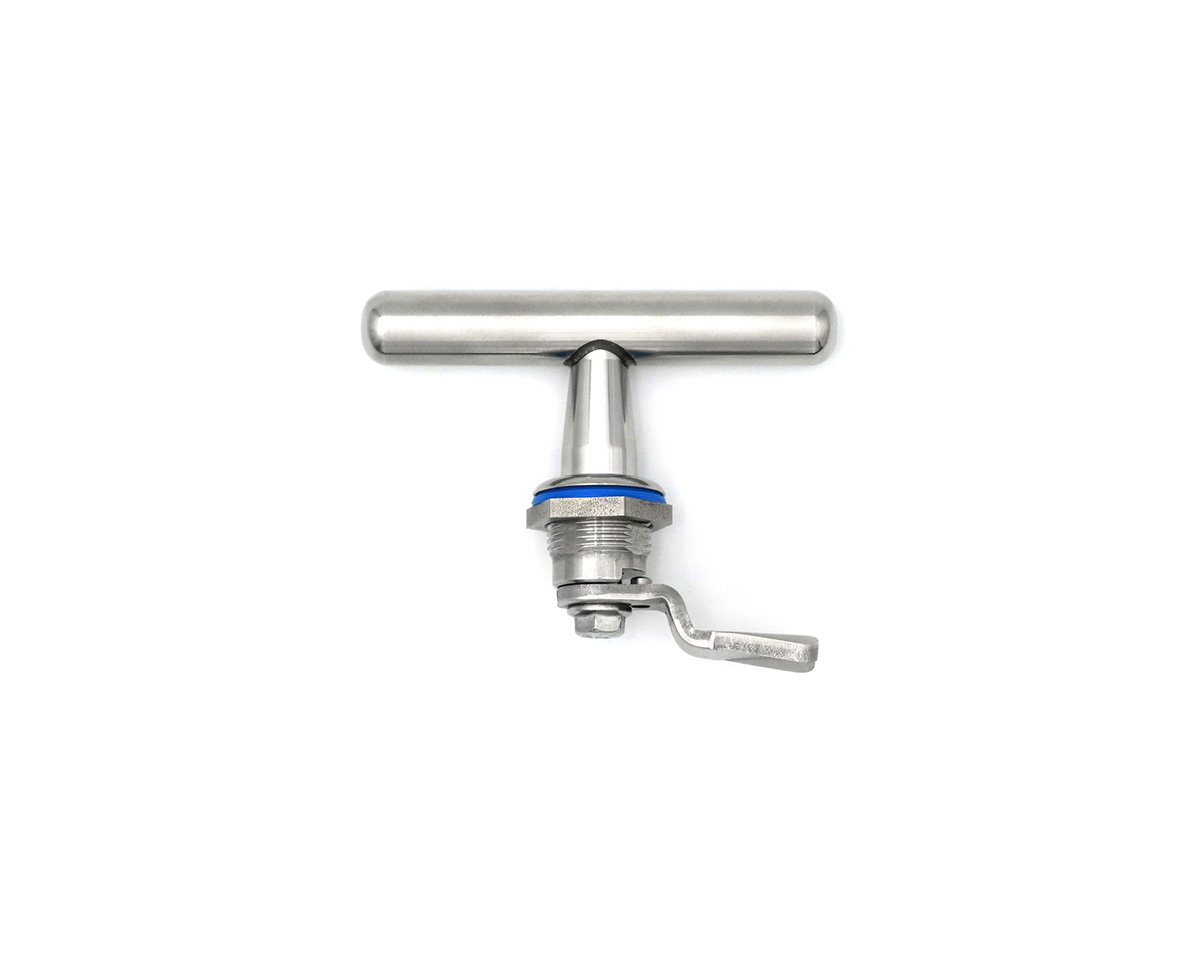

A quarter turn latch with a T-handle or L-handle can be operated without a separate key. Tool-operated types limit immediate access and minimise permanently projecting operating elements. The selected key and actuation profile must correspond exactly to the latch type.

How a 90-Degree Quarter Turn Latch Works

The hygienic latches use a 90-degree rotary locking mechanism. Turning the operating element moves the internal cam behind the enclosure frame or strike surface, securing the door or cover with a quarter turn.

The compact mechanism is suitable for control cabinets, machine guards, inspection doors and maintenance panels. The cam, locking edge and installation orientation must be coordinated so that the latch can engage securely.

Sufficient clearance must also be available for the internal cam and for any T-handle or L-handle. Adjacent components must not restrict the complete closing and opening movement.

Selecting the Correct Closing Depth

Closing depth describes the distance between the outer mounting surface and the position at which the cam engages behind the frame. It is one of the most important dimensions when selecting a hygienic quarter turn latch.

Before ordering, determine the panel thickness, seal thickness, distance to the locking edge and required compression. Insufficient closing depth may prevent secure engagement, while excessive depth can prevent complete closure or place unnecessary pressure on the enclosure seal.

3-A-Certified Latches for Hygienic Machine Design

The hygienic quarter turn latches in this category are certified according to the 3-A Sanitary Standard. They are intended for machine areas where accessible surfaces and cleanable transitions are required.

Rounded external contours reduce sharp transitions around the operating side. Special silicone seals close the areas between the latch, mounting surface and internal locking mechanism.

Certification of the latch alone does not confirm that the complete enclosure is hygienically designed. The door surface, mounting opening, cam, frame, fasteners and adjacent components must also be suitable for the intended cleaning process.

IP69K Latches with Blue Silicone Seals

Most regular MOVET 3-A hygienic quarter turn latches are specified with an IP69K rating. They are therefore designed for machine areas exposed to intensive washdown procedures and high-pressure cleaning conditions.

The protection rating applies to the individual latch under the specified test conditions and should not automatically be transferred to the complete machine enclosure. The mounting opening, door gasket, mating surface and correct installation all influence the sealing performance of the complete assembly.

The blue silicone seals should be inspected regularly for damage, permanent deformation and correct positioning. Suitable replacement and complementary components are available under hygienic gaskets .

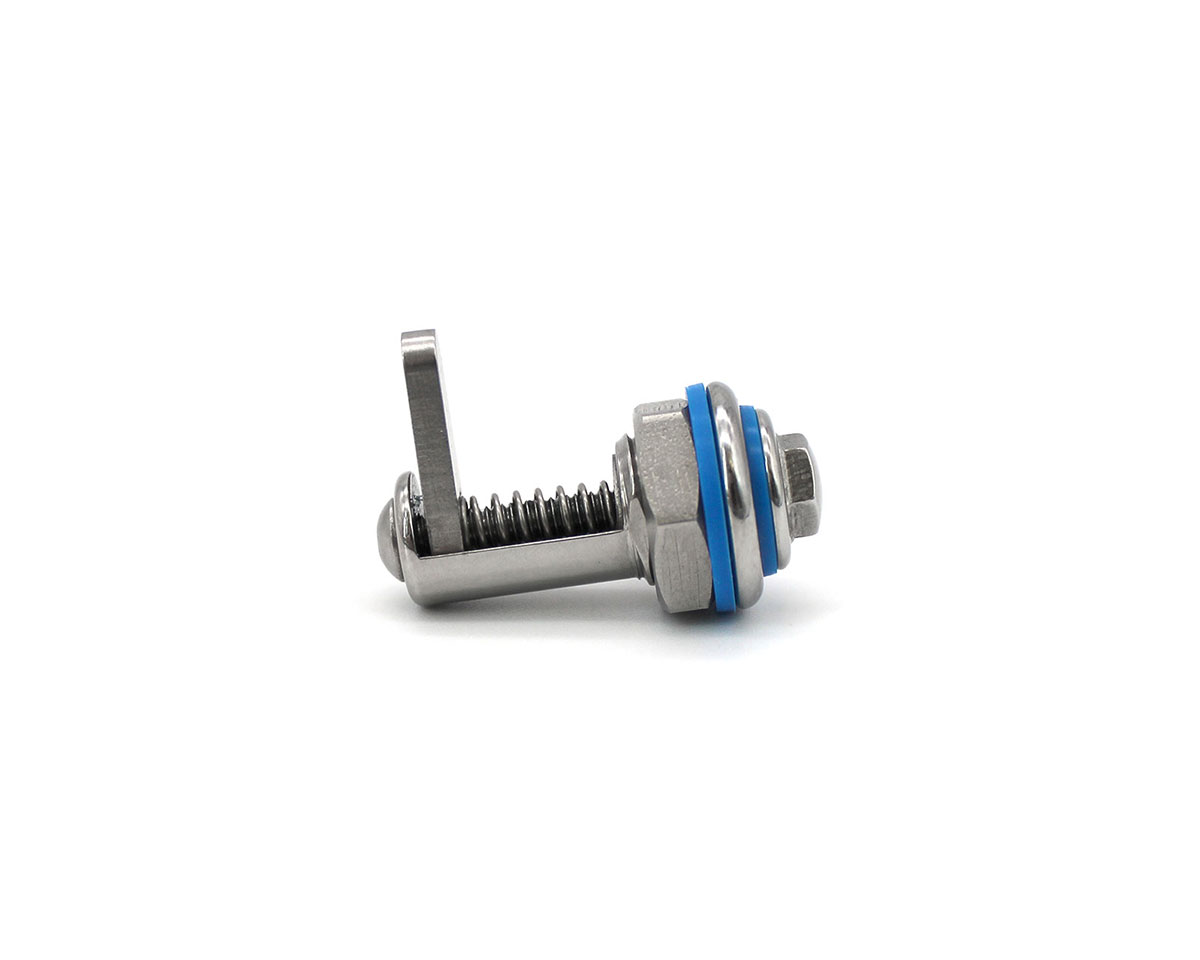

Self-Compressing Hygienic Compression Latches

A hygienic compression latch creates an additional pulling movement as it closes. This draws the enclosure door towards the sealing frame and can produce more uniform pressure on the door gasket than a simple cam latch.

MOVET self-compressing versions use an adjustable cam to accommodate the installation geometry. Two seals protect the locking mechanism, while inclined contact surfaces support the closing movement.

Compression latches can be considered for control cabinets, inspection doors and hygienic machine enclosures where defined gasket compression is required. Adjustment must be set so that the door closes securely without overloading the seal or distorting the panel.

AISI 304 Stainless Steel Latches for Washdown Areas

MOVET hygienic turn latches are manufactured from AISI 304 stainless steel. The material provides corrosion resistance for many wet and regularly cleaned industrial environments and supports a durable machine-enclosure design.

Depending on the handle design, polished or brushed surfaces may be available. Smooth polished versions are particularly suitable where easily accessible external surfaces are required, while brushed designs provide a uniform matt appearance.

Actual corrosion resistance depends on the cleaning agent, concentration, temperature, exposure time and possible chloride content. AISI 304 should therefore not be regarded as universally resistant to every chemical or washdown process.
