Accessories for Wheels
MOVET accessories for wheels and castors complete your mobility solutions with precisely engineered components. Our range includes mounting hardware, spindles and plates designed for industrial use and long service life. Corrosion-resistant materials and hygienic designs make these accessories ideal for applications with high demands on cleanability, safety and durability, especially in sensitive production environments.
TEKNOCLEAN plate for spindle for wheel, Ø 60 suitable for male pin M12

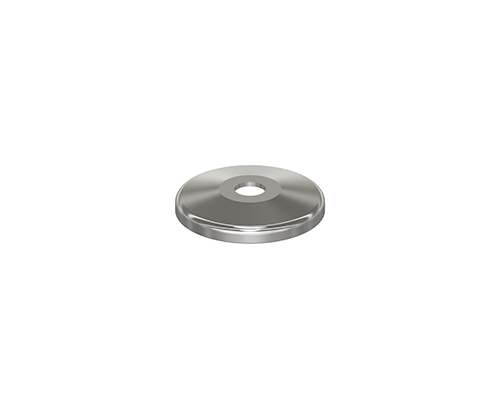

TEKNOCLEAN plate for spindle for wheel, Ø80 suitable for male pin M12
Accessories for Castors and Wheels in Mechanical Engineering
Suitable accessories extend castors and wheels with additional mounting, adjustment and support options. Stainless steel spindles allow the installation height of mobile frames, machinery and industrial equipment to be adjusted. Complementary support plates provide a defined contact surface and can support the structure when it is positioned at its operating location.
MOVET supplies accessories for castors and wheels in different dimensions and connection designs. The range includes standard stainless steel spindles as well as hygienic TEKNOCLEAN versions for production environments with increased requirements for cleanability and corrosion resistance.
Stainless Steel Spindles for Castors
Stainless steel castor spindles combine a robust threaded connection with controlled height adjustment. Their corrosion-resistant material makes them suitable for industrial applications exposed to moisture, regular cleaning or other demanding operating conditions.
Depending on the design, the spindle can be used to adjust the installation height or create an additional adjustable support point. Before selecting a spindle, check the existing threaded connection, required overall height and the connection dimensions of the castor or support plate.
Castor Spindles in M16, M20 and M24
The MOVET range includes stainless steel castor spindles with M16, M20 and M24 threads and spindle lengths of 150 or 200 mm. The appropriate dimensions depend on the existing mounting point, required adjustment range and structural loads of the application.
A larger thread diameter can provide increased rigidity when used in a suitably designed structure. However, the complete system must always be considered. The spindle, castor, frame, mounting points and any support plate must all be suitable for the expected forces.

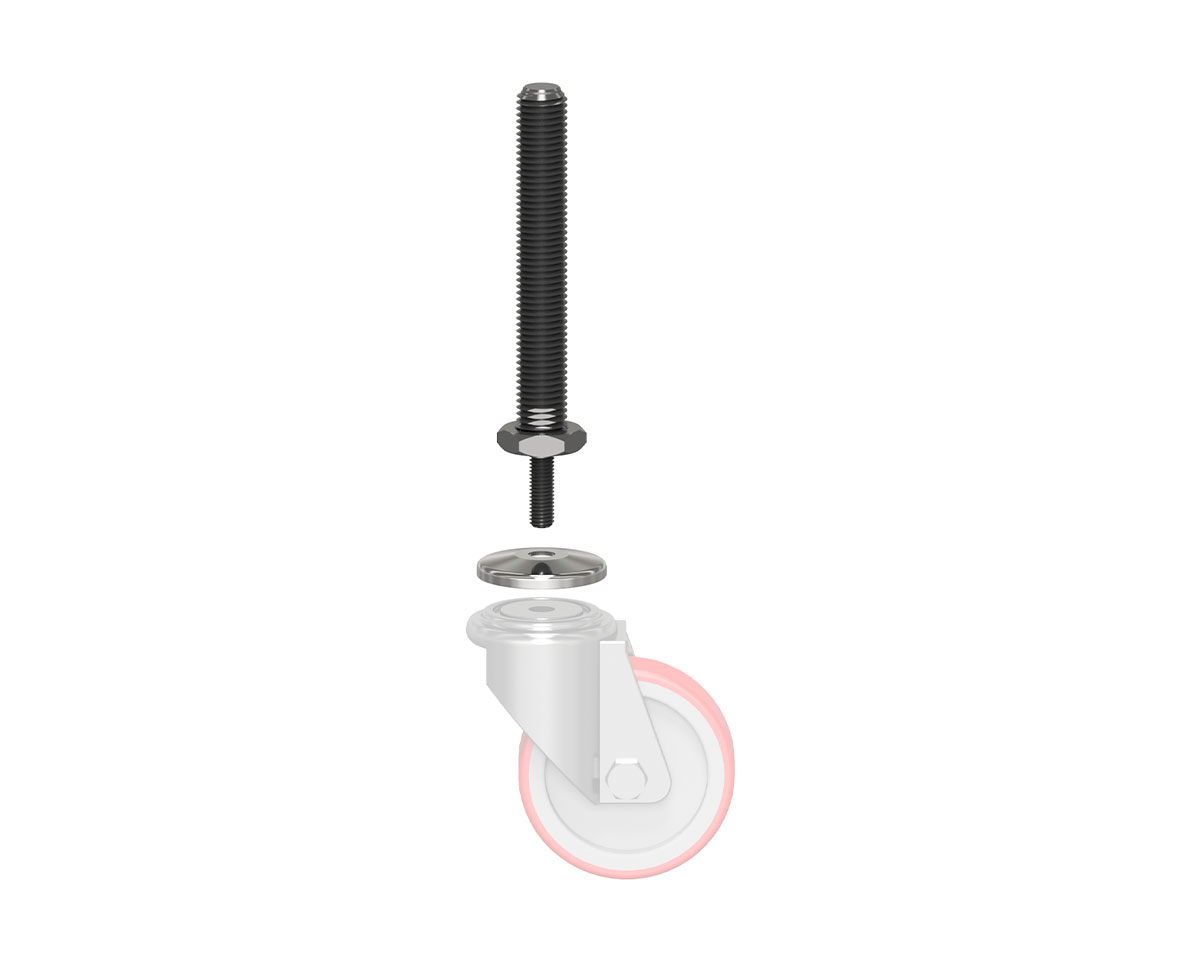

Spindles with Male or Female M12 Connections
Depending on the version, the spindles are available with a male M12 pin or a female M12 threaded connection. The male pin can be connected to a compatible castor component or a suitable support plate. Female versions are intended for constructions in which the corresponding component has a matching threaded pin.
The main spindle thread is therefore not the only dimension that must be checked. The connection at the opposite end must also match the installed component. Technical drawings and product dimensions help compare the pin length, thread, overall height and available installation space.

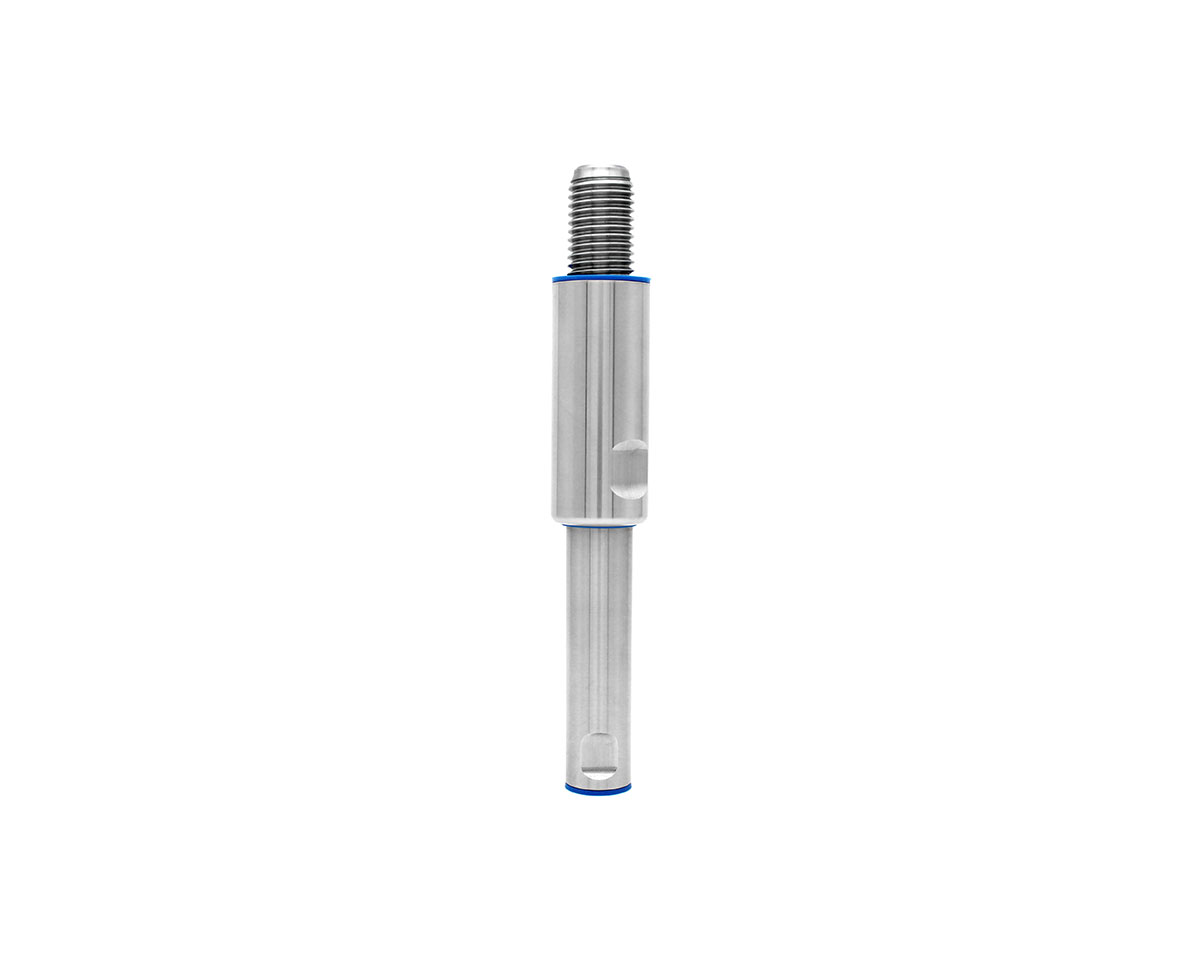

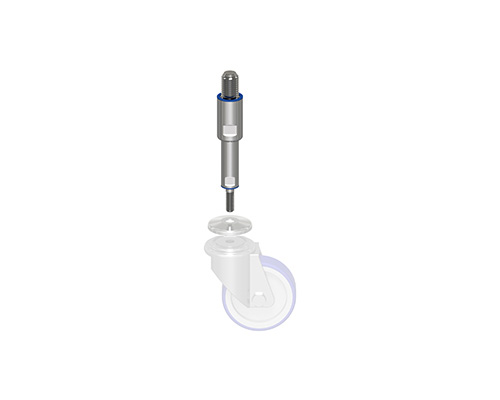

TEKNOCLEAN Accessories for Hygienic Castor Solutions
TEKNOCLEAN castor spindles are designed for applications with increased hygiene and cleaning requirements. They are made from stainless steel and feature an integrated blue silicone gasket, which helps seal the transition area against moisture and contamination.
The USDA-certified components are particularly suitable for machinery, mobile frames and industrial equipment used in hygiene-sensitive production areas. Typical applications include the food and beverage industry and equipment that undergoes regular wet cleaning. Compatibility with the specific cleaning agents and operating conditions should be checked before use.
Support Plates for Castor Spindles
Compatible support plates extend TEKNOCLEAN spindles with a male M12 pin by providing a defined floor contact surface. MOVET supplies versions with diameters of 60 and 80 mm. The suitable size depends on the available installation space and the required distribution of forces across the floor.
For a reliable connection, the support plate and spindle pin must have compatible dimensions. Floor conditions, load and the arrangement of the individual support points should also be considered. A larger contact surface can be beneficial on sensitive or less load-resistant floors.
Levelling Mobile Machinery and Frames
Castors allow machinery, worktables and frames to be moved flexibly. At the intended operating position, however, the structure may also require stable and even support. Adjustable castor spindles can help compensate for differences in floor height and align the equipment with the available installation surface.
The total weight, load distribution and number of castors and support points should be assessed together. Dynamic forces generated during movement and braking must also be considered. The spindle selection does not replace a technical assessment of the complete castor and frame construction.
Select and Buy Accessories for Castors and Wheels
Use the product filters to narrow down the available castor accessories by spindle diameter, spindle length, support plate diameter and hygiene design. Before ordering, compare the main thread, M12 connection, required length and installation dimensions with the existing construction.
Suitable products for mobile machinery, industrial equipment and transport frames can be found under castors and wheels. For hygienically demanding machine installations, MOVET also supplies hygienic stainless steel levelling feet . If the required dimensions are not available as a standard product, MOVET can assist with evaluating a suitable customised solution.
