Star Knobs for Machinery and Operating Elements
Star grips offer comfortable and safe handling for machine and system controls. Thanks to their robust materials and ergonomic shape, they enable precise and effortless operation in industrial applications.
Stainless Steel Star Knobs for Machinery and Equipment
Stainless steel star knobs are manually operated machine components used for clamping, fixing and adjusting movable parts. Their star-shaped grip provides several contact points for the hand and allows settings to be changed without using a separate tool.
The MOVET range includes polished stainless steel star handles with female threads, threaded studs or plain bores. Different handle diameters and connection sizes make them suitable for machinery, fixtures, guards, guide systems and adjustable production equipment.
Selecting the Right Star Knob Design
The appropriate connection type depends on how the star knob is to be fitted to the machine component. The following overview provides initial guidance:
| Design | Typical use |
|---|---|
| Female thread | Screwing onto an existing threaded bolt or stud |
| Threaded stud | Screwing directly into an existing threaded hole |
| Plain bore | Individual connection to a shaft, pin or customised component |
| Hygienic 3-A design | Frequently cleaned machinery in hygiene-sensitive production areas |

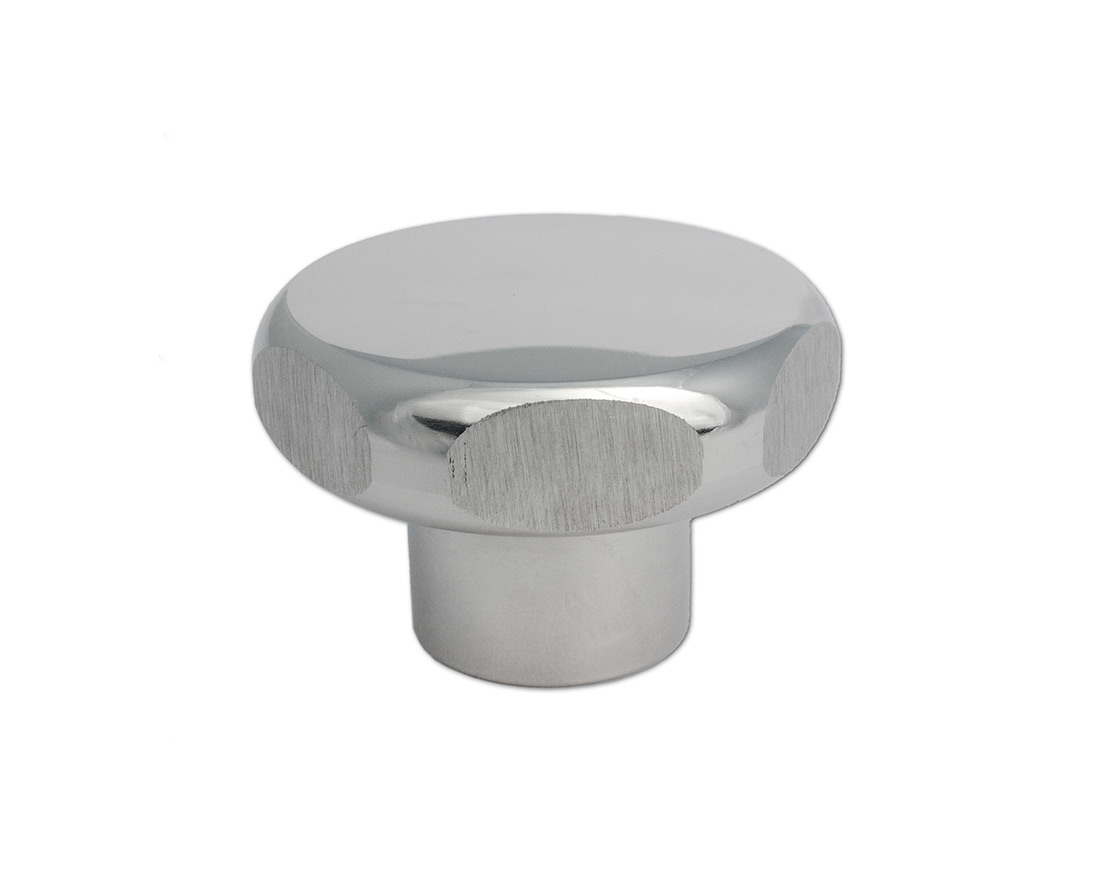

Star Knobs with Female Threads or Threaded Studs

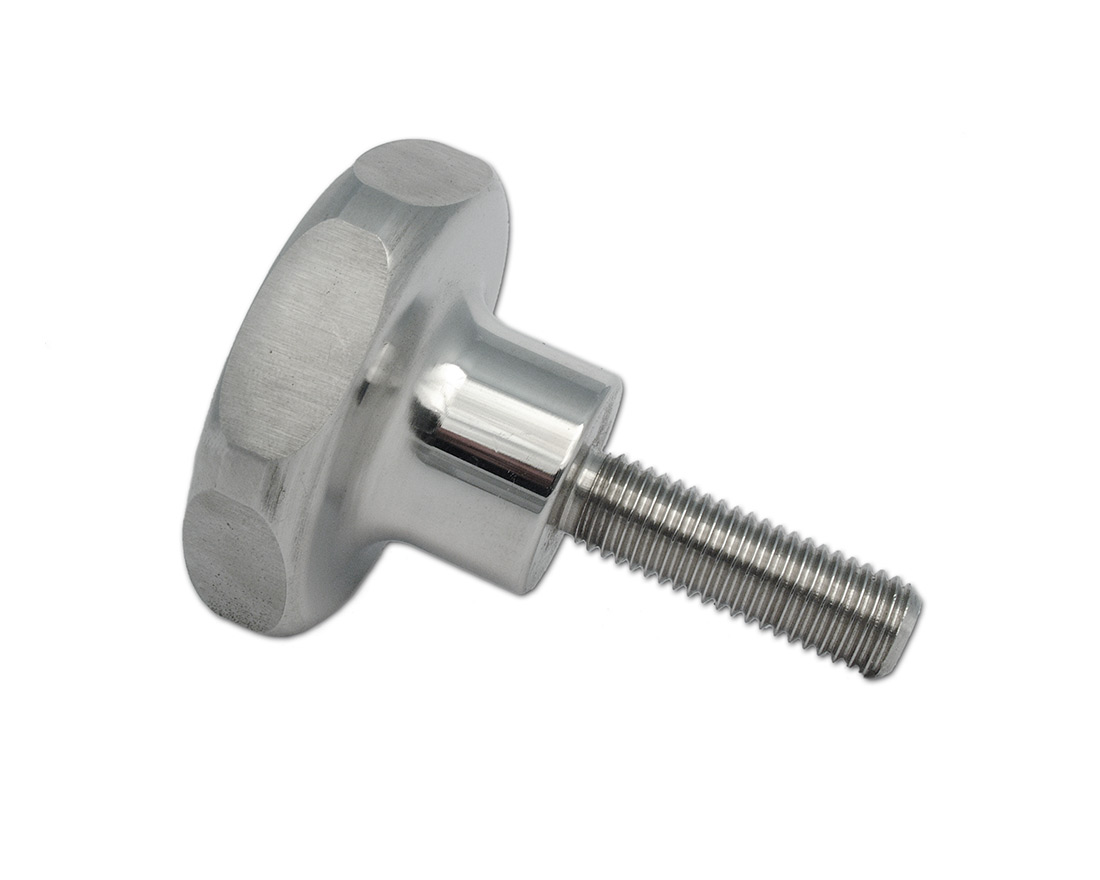

A star knob with a female thread is screwed onto a compatible threaded bolt and can also function as a manually operated star nut. A version with an integrated threaded stud acts as a hand-operated clamping screw and is fitted directly into a corresponding threaded hole.
The thread diameter, thread length and available installation space must be checked before selection. MOVET supplies stainless steel star knobs with metric threads from M5 to M12. The connection must be suitable for the required clamping force and the mechanical design of the application.

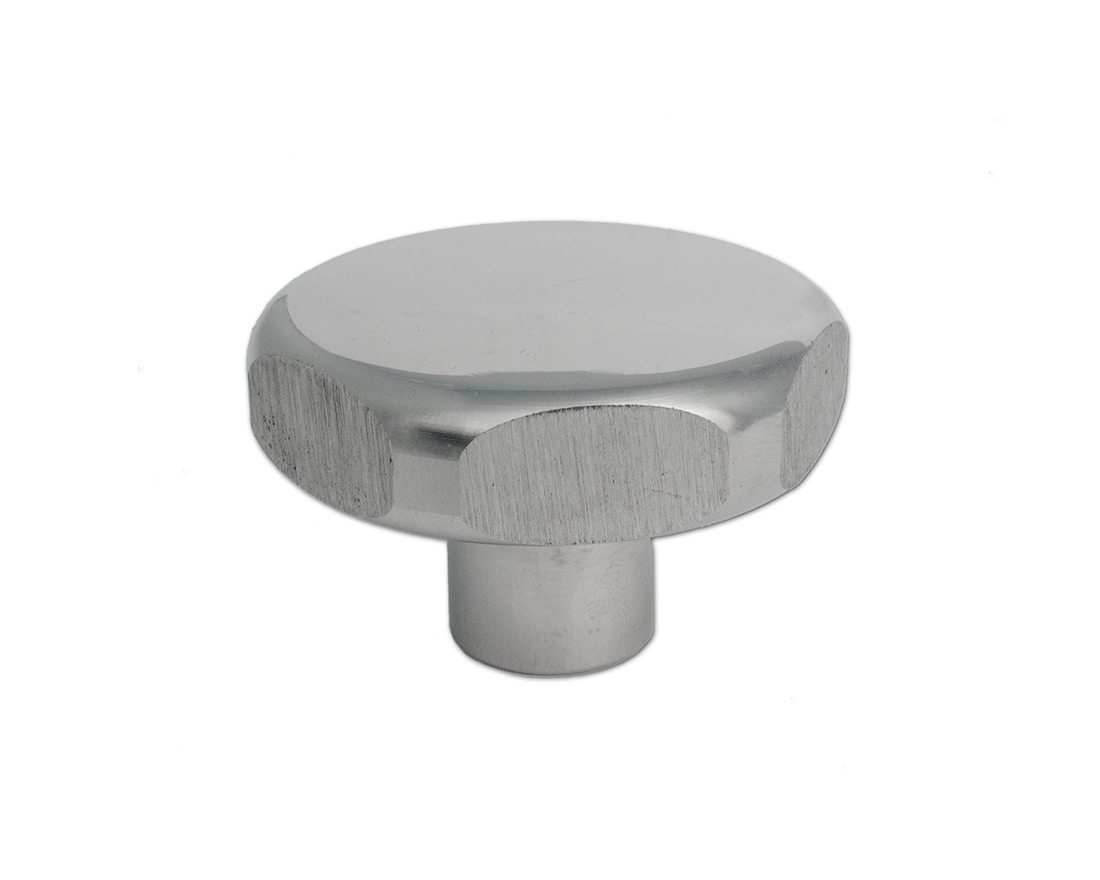

Stainless Steel Star Knobs with a Plain Bore
Star handles with a plain bore are suitable for constructions where a finished female thread or threaded stud is not required. The bore can be used for connection to a shaft, pin or individually machined mounting component.
Important selection criteria include the bore diameter and depth, hub dimensions, overall height and intended fixing method. The connection and transferable forces must be assessed as part of the complete machine construction.
Choosing the Correct Handle Diameter and Thread Size
The outside diameter of a star grip affects both the available gripping surface and the leverage that can be applied by hand. A larger handle can simplify manual tightening and adjustment but also requires more space around the machine component.
The MOVET range includes star knob diameters from 27 to 65 mm and different thread and connection sizes. The required operating force, available hand clearance, adjacent components and desired clamping effect should all be considered when selecting the dimensions.
Ergonomic Star Handles for Clamping and Adjustment
The star-shaped contour allows the handle to be gripped from several positions. Star knobs are therefore suitable for repeated adjustment, clamping and release operations on machines, fixtures and production equipment.
Typical applications include positioning guides and stops, securing adjustable components and opening or closing manually operated connections. The achievable tightening torque depends on the handle diameter, connection type, thread size and individual installation conditions.

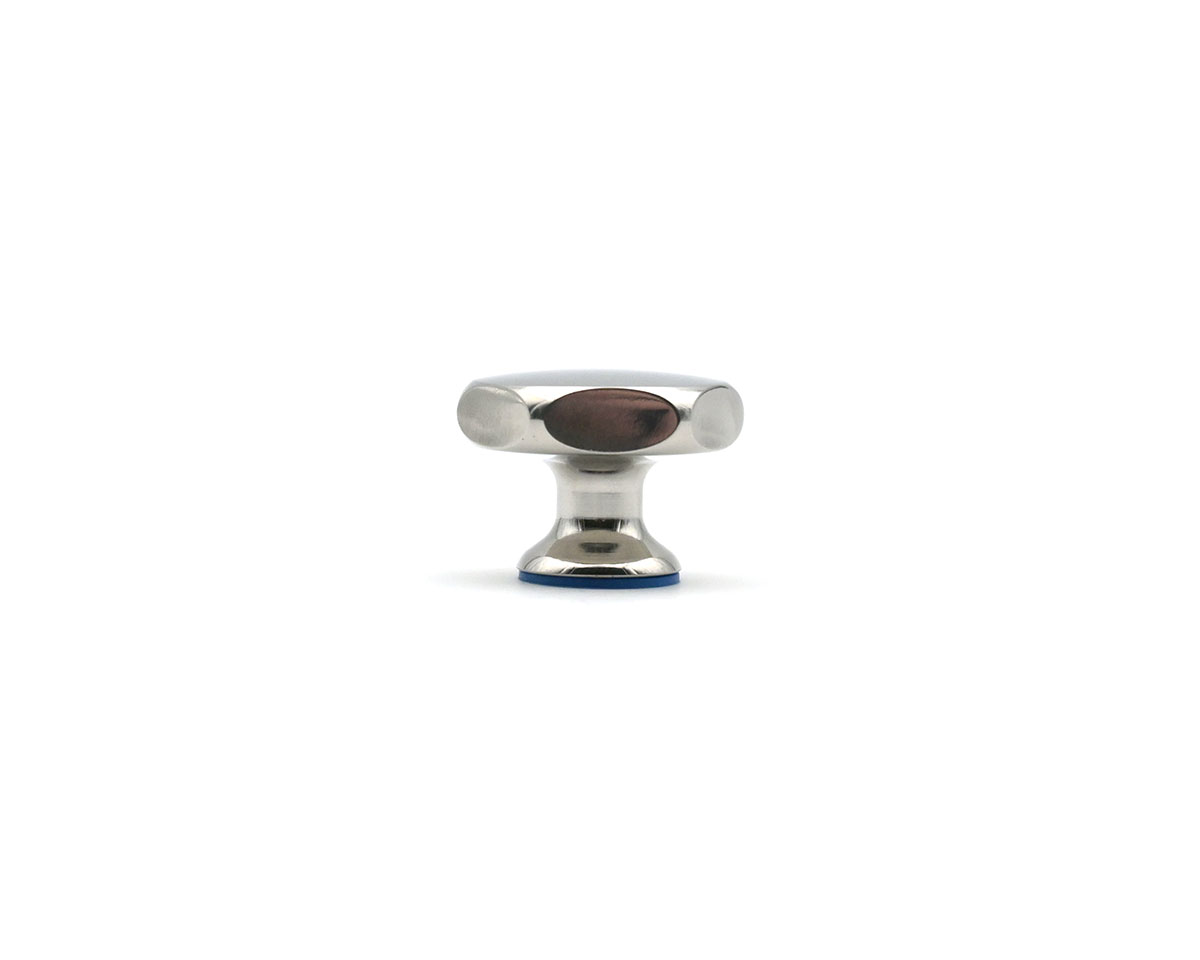

Hygienic 3-A Star Knobs for Food-Processing Equipment
Hygienic 3-A star knobs are available for machinery used in production areas with increased cleaning requirements. Their polished stainless steel surfaces and closed, accessible design support the hygienic construction of manually operated machine components.
Depending on the version, the hygienic star grips feature a blue silicone seal around the connection area. They are particularly suitable for food, beverage and pharmaceutical equipment when the materials, seal and dimensions are compatible with the cleaning agents and operating conditions. Further certified products can be found under hygienic machine components .
Select and Buy Stainless Steel Star Knobs
Use the product filters to narrow down the available star knobs by thread, outside diameter and hygienic design. Before ordering, check the connection type, thread or bore dimensions, overall handle size and available installation space.
Technical drawings and 3D data are available for numerous products to support machine design and component selection. If a different bore, thread length or special dimension is required, MOVET can assist with evaluating a customised machine component.
