MOVET Blue Flange Bearings for Hygienic Applications
MOVET Blue flange bearings offer a durable and hygienic bearing solution for demanding industrial applications.Manufactured from high-quality, corrosion-resistant materials, they are particularly suitable for environments with high hygiene standards, such as the food and pharmaceutical industries.
MOVET® Blue Hygienic 2-hole flange bearing CTL 204, housing blue, MB stainless steel, Ø 20 mm
MOVET® Blue Hygienic 2-hole flange bearing NFL 206, housing blue, MB stainless steel, Ø 30 mm

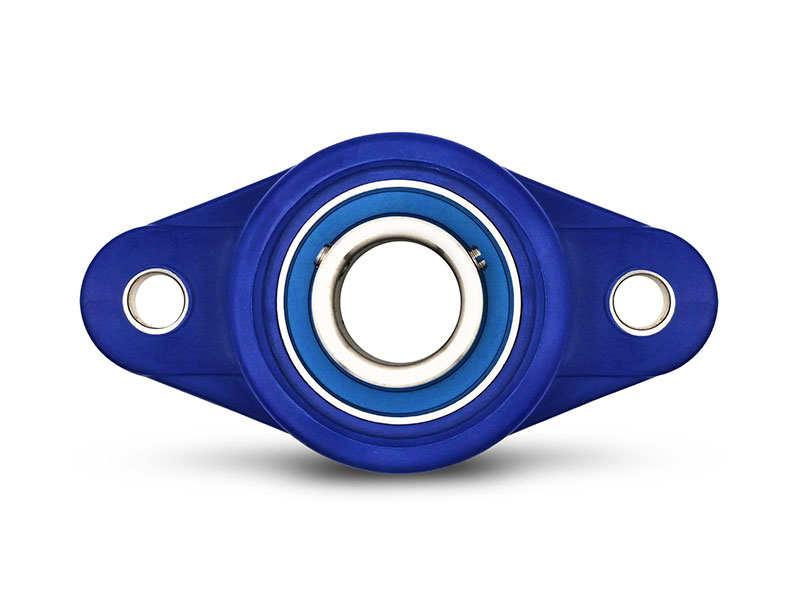

MOVET® Blue Hygienic 2-hole flange bearing NFL 205, housing blue, MB stainless steel, Ø 25 mm
MOVET® Blue Hygienic 2-hole flange bearing CTL 206, housing blue, MB stainless steel, Ø 30 mm
MOVET® Blue Hygienic 3-hole flange bearing FBL 204, housing blue, MB stainless steel, Ø 20 mm

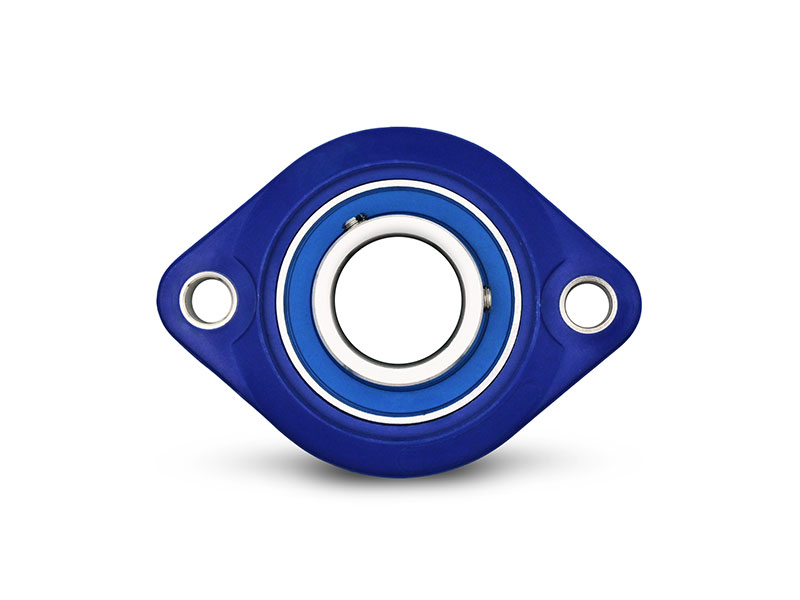

MOVET® Blue Hygienic 2-hole flange bearing CTL 205, housing blue, MB stainless steel, Ø 25 mm
MOVET® Blue Hygienic Pillow block bearing TBL 206, housing blue, MB stainless steel, Ø 30 mm

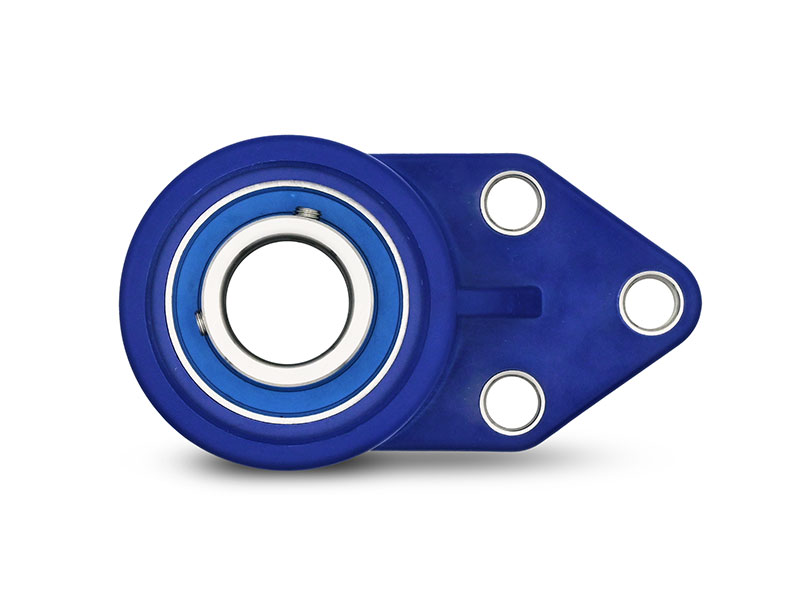

MOVET® Blue Hygienic 3-hole flange bearing FBL 205, housing blue, MB stainless steel, Ø 25 mm
MOVET® Blue Hygienic 2-hole flange bearing NFL 204, housing blue, MB stainless steel, Ø 20 mm

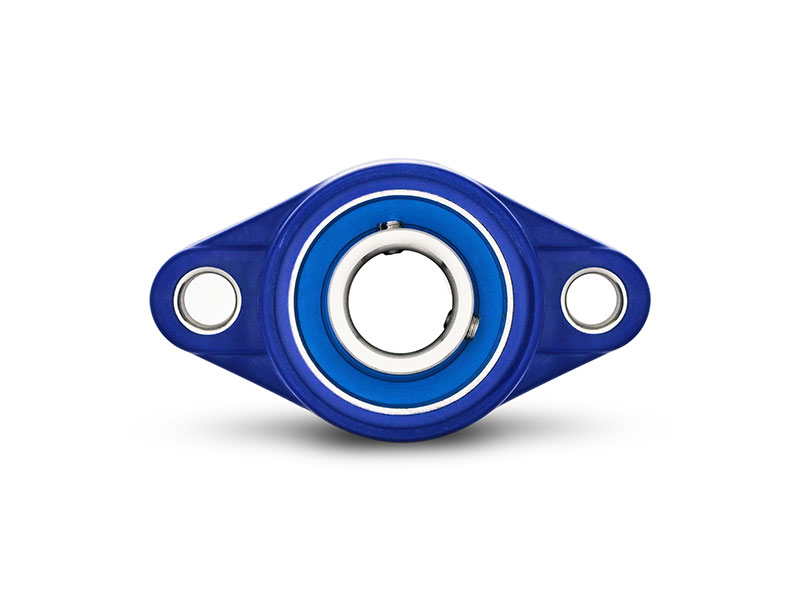

MOVET® Blue Hygienic 2-hole flange bearing LNFL 204, housing blue, MB stainless steel, Ø 20 mm

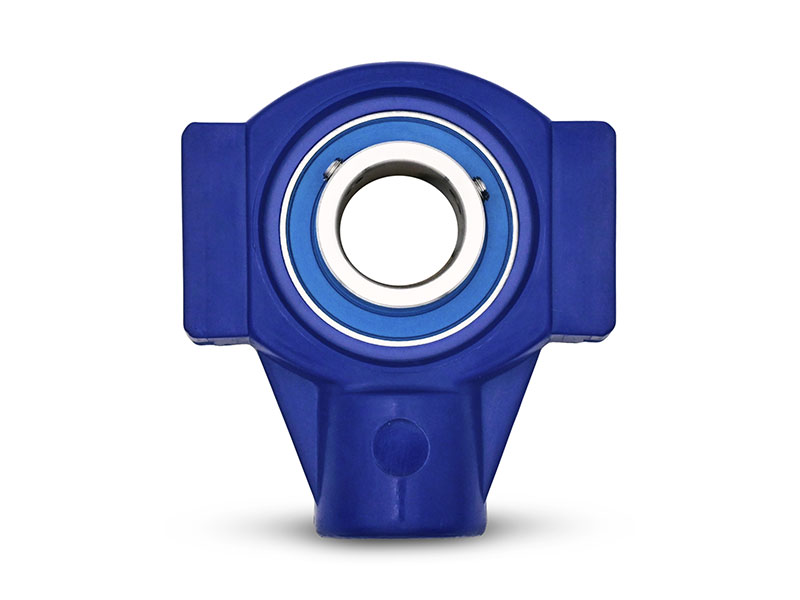

MOVET® Blue Hygienic Take up bearing unit TPL 205, housing blue, MB stainless steel, Ø 25 mm

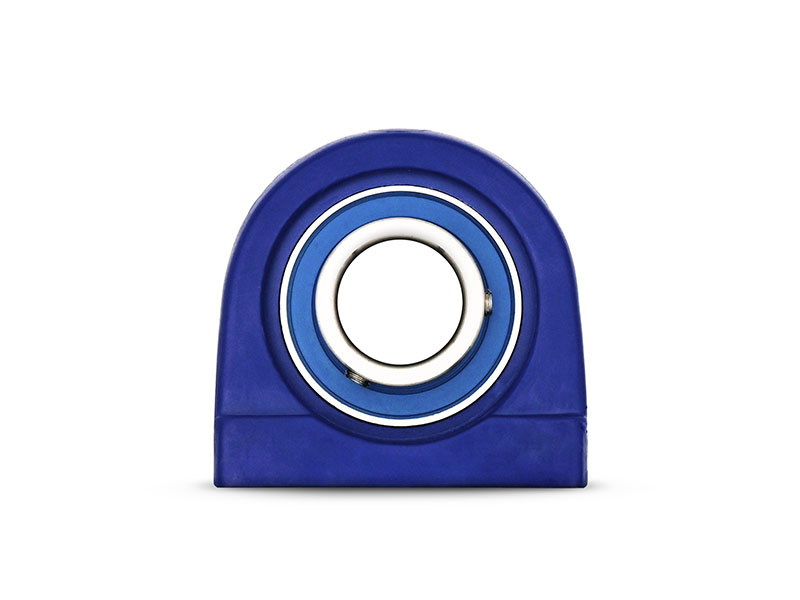

MOVET® Blue Hygienic Pillow block bearing TBL 205, housing blue, MB stainless steel, Ø 25 mm

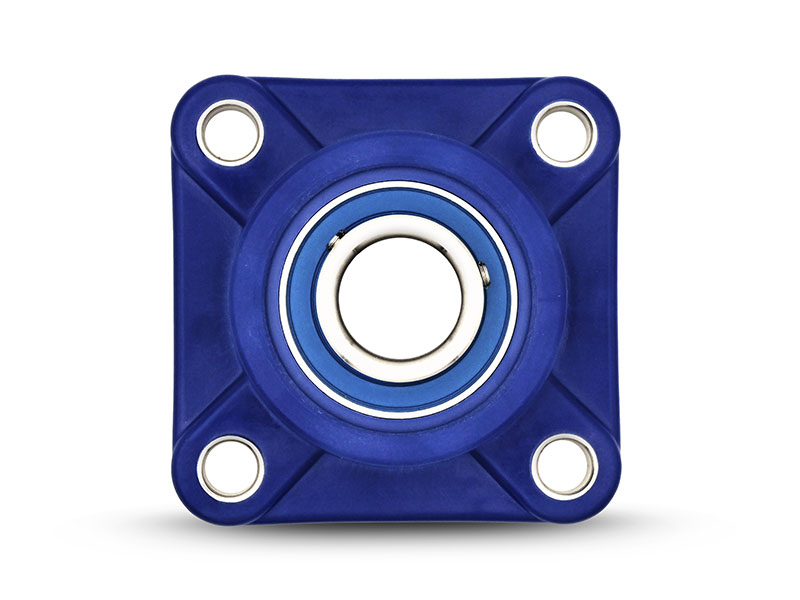

MOVET® Blue Hygienic 4-hole flange bearing FPL 205, housing blue, MB stainless steel, Ø 25 mm
MOVET® Blue Hygienic 4-hole flange bearing FPL 206, housing blue, MB stainless steel, Ø 30 mm
MOVET® Blue Hygienic 3-hole flange bearing FBL 206, housing blue, MB stainless steel, Ø 30 mm

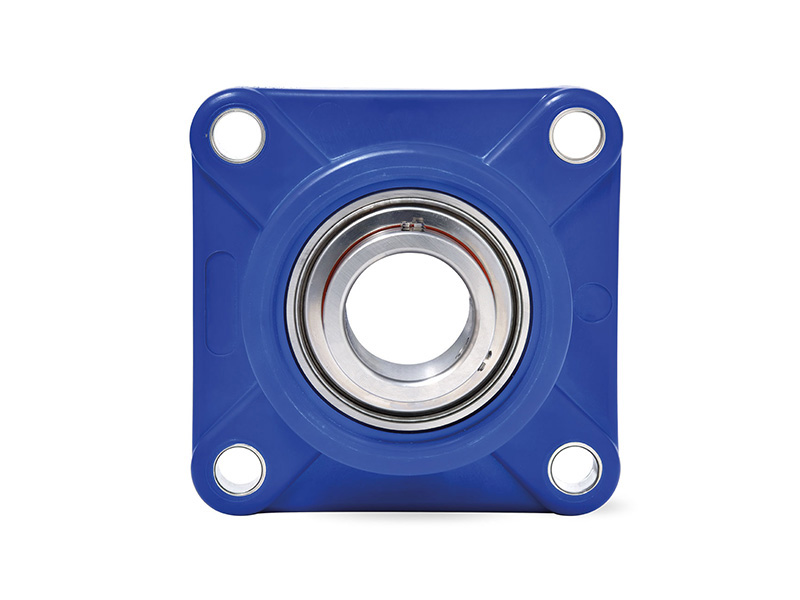

MOVET® Blue Hygienic 4-hole flange bearing FPL 202, housing blue, MB stainless steel, Ø 15 mm

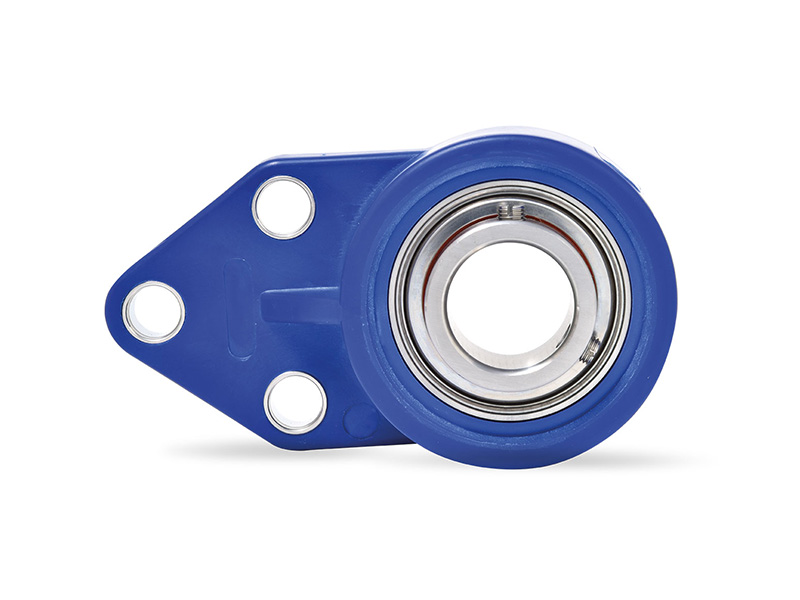

MOVET® Blue Hygienic 3-hole flange bearing FBL 203, housing blue, MB stainless steel, Ø 17 mm
MOVET® Blue Hygienic 4-hole flange bearing FPL 204, housing blue, MB stainless steel, Ø 20 mm
MOVET® Blue Hygienic Pillow block bearing TBL 204, housing blue, MB stainless steel, Ø 20 mm

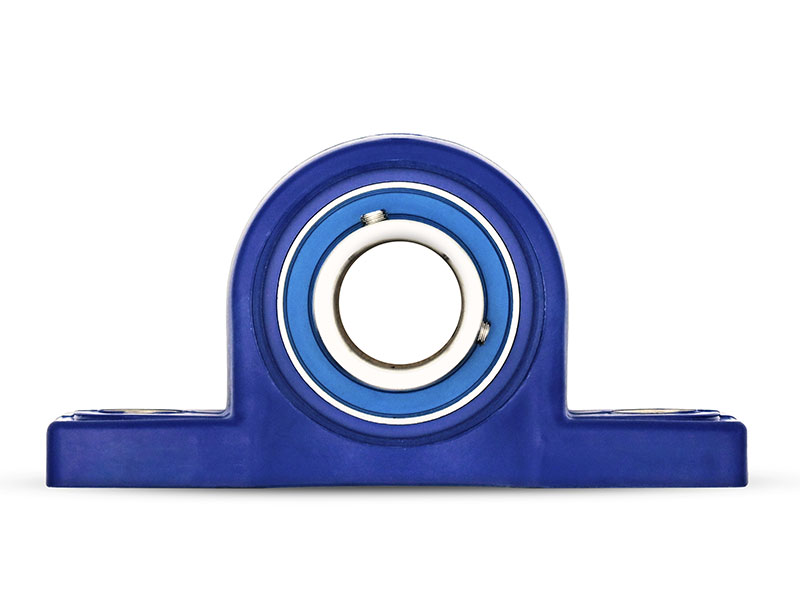

MOVET® Blue Hygienic Pillow block bearing PPL 206, housing blue, MB stainless steel, Ø 30 mm
MOVET® Blue Hygienic Take up bearing unit TPL 204, housing blue, MB stainless steel, Ø 20 mm
MOVET® Blue Hygienic 4-hole flange bearing FPL 208, housing blue, MB stainless steel, Ø 40 mm

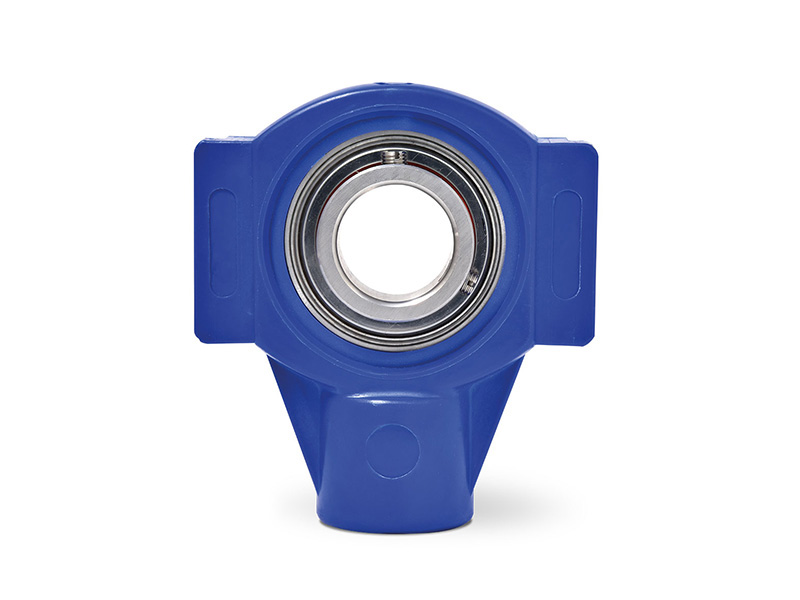

MOVET® Blue Hygienic Take up bearing unit TPL 201, housing blue, MB stainless steel, Ø 12 mm
MOVET® Blue Hygienic 2-hole flange bearing CTL 201, housing blue, MB stainless steel, Ø 12 mm
MOVET Blue Hygienic Bearing Units for Production Equipment
MOVET Blue hygienic bearing units combine a blue plastic housing with a corrosion-resistant stainless steel bearing insert. They are designed for machinery, conveyor systems and production equipment used in environments where cleanability, moisture resistance and visual inspection are important.
The range includes 2-bolt, 3-bolt and 4-bolt flange bearings as well as pillow block bearings and take-up units. Different housing designs, shaft diameters and bore spacings allow the bearing unit to be matched to the available installation space and machine construction.
Select MOVET Blue Bearings by Housing Type and Shaft Diameter
The required housing type depends primarily on the mounting surface, installation position and available fixing points. The table provides an overview of the shaft diameters currently available for the different MOVET Blue bearing designs.
| Housing type | Available shaft diameters |
|---|---|
| 2-bolt flange bearings | 12, 15, 17, 20, 25 and 30 mm |
| 3-bolt flange bearings | 12, 15, 17, 20, 25 and 30 mm |
| 4-bolt flange bearings | 12, 15, 17, 20, 25, 30 and 40 mm |
| Pillow block bearings | 12, 15, 17, 20, 25 and 30 mm |
| Take-up bearing units | 12, 15, 17, 20, 25 and 30 mm |
In addition to the shaft diameter, the bore spacing, housing dimensions and available mounting surface must be checked. Several housing designs may be available for the same shaft size, allowing the bearing unit to be selected according to the construction of the machine.
Blue Plastic Housings with Stainless Steel Bearing Inserts
The blue plastic housing provides a lightweight and corrosion-resistant alternative to conventional metal housings. Its colour creates a clear visual contrast in many hygiene-sensitive production environments and makes damage or detached fragments easier to identify during inspection.
MOVET Blue bearing units are equipped with stainless steel bearing inserts. When selecting a bearing, the complete combination of housing, insert, seals, lubricant and operating conditions must be considered. Suitability for specific temperatures, chemicals and cleaning agents should always be checked against the technical product data.
2-Bolt, 3-Bolt and 4-Bolt Hygienic Flange Bearings
MOVET Blue flange bearings are available with two, three or four mounting points. Compact 2-bolt flange bearings are suitable for narrow mounting surfaces and machine frames. Triangular 3-bolt housings provide an alternative where three fixing points are specified by the existing construction.
4-bolt flange bearings provide a broad mounting surface with four fixing points and are available for the widest range of shaft diameters in the MOVET Blue series. The appropriate design should be selected according to the installation position, bore pattern and available space rather than by shaft diameter alone.
Pillow Block Bearings and Take-Up Units in MOVET Blue
MOVET Blue pillow block bearings are mounted upright on horizontal machine surfaces, frames and supports. They provide a ready-to-install bearing solution for conveyor systems, production machinery and other applications requiring a base-mounted shaft bearing.
Take-up bearing units are designed for applications in which the bearing position must remain adjustable within a guide or tensioning system. They are commonly used where shafts, belts or chains need to be aligned or tensioned. The housing dimensions and adjustment path must match the existing machine construction.
Check Bore Spacing and Mounting Dimensions
The shaft diameter identifies the required bearing bore, but it does not fully determine the correct bearing unit. The distance between the mounting holes, housing height, overall width and position of the shaft centre must also correspond to the machine or conveyor frame.
This is particularly important when replacing an existing flange bearing or pillow block. Before ordering, compare the technical drawing and product dimensions with the installed housing. Bearings with the same shaft diameter may have different bore spacings and external dimensions depending on their series and housing design.
Protective Caps and Shaft Seals for MOVET Blue Bearings
Depending on the bearing design, compatible protective caps and shaft seals can be added to the housing. Protective caps cover exposed bearing and shaft areas, while shaft seals provide additional protection at the transition between the housing and the rotating shaft.
Suitable protective caps and shaft seals must be matched to the housing type, bearing size and shaft diameter. Their use should be considered whenever moisture, contamination or regular cleaning affects the bearing area.
MOVET Blue or Blue Waterproof Bearing Units?
Standard MOVET Blue bearing units are suitable for many hygienically demanding applications, but they should not be confused with the fully sealed Waterproof range. The appropriate series depends on the intensity of cleaning, exposure to water and the required protection of the bearing and shaft transition.
For production equipment exposed to intensive wet or high-pressure cleaning, consider MOVET Blue Waterproof bearing units . Use the filters to select the standard MOVET Blue range by shaft diameter, housing type and bore spacing. If the required combination is not available online, MOVET can assist with identifying a suitable bearing solution and compatible accessories.
