Locking Systems for Industrial Machine Components
Our locking systems offer reliable protection for enclosures, doors and machine panelling. They are available in various designs and guarantee simple operation and high resistance to external influences.
Latches for Maintenance Doors and Machine Guards
Snap latches, spring latches and draw latches are commonly used on maintenance doors, machine guards, protective covers, containers and technical enclosures. They provide quick access to internal components that require regular inspection, cleaning or maintenance.
If profile-operated or more controlled access is required, quarter-turn latches may provide a more suitable solution. Matching cabinet keys are available for different latch inserts. Before ordering an industrial enclosure latch, compare its dimensions, fixing pattern, adjustment range and holding force with the intended machine construction.
Industrial Locking Systems for Machine Enclosures
Industrial locking systems provide a practical way to close machine guards, enclosures, doors, access panels and protective covers. Depending on the design, the connection is secured by a spring mechanism, a snap-fit action or an adjustable pulling movement. Frequently opened machine areas can therefore be accessed without using a separate tool.
The MOVET range includes ball catches, compact snap latches, spring-loaded latches and adjustable draw latches. Different dimensions, materials, closing lengths and holding forces allow the enclosure latch to be matched to the machine construction and operating requirements.
Selecting the Right Industrial Latch
The appropriate latch design depends on the size and weight of the door, how frequently it is opened and whether the connected components must be pulled together under tension. The following overview provides initial guidance:
| Latch design | Typical function |
|---|---|
| Ball catch | Compact retention of lightweight doors, covers and access panels |
| Snap-fit latch | Space-saving closure for frequently opened enclosure components |
| Spring-loaded latch | Resilient connection with a defined product-specific holding force |
| Adjustable draw latch | Pulling and closing components together with an adjustable closing length |

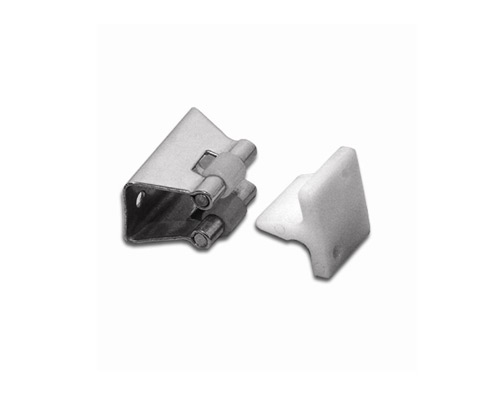

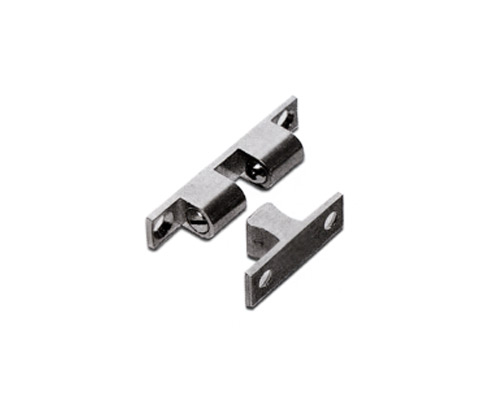

Ball Catches and Compact Snap Latches
Ball catches use spring-loaded balls to retain a door or cover in its closed position. Applying sufficient opening force releases the connection. This compact design is suitable for lightweight access panels and enclosure components that must be opened regularly without a tool.
Snap-fit latches require little installation space and consist of a latching component and a compatible counterpart. Before selection, compare the overall dimensions, hole spacing and installation position of both components with the available machine construction.

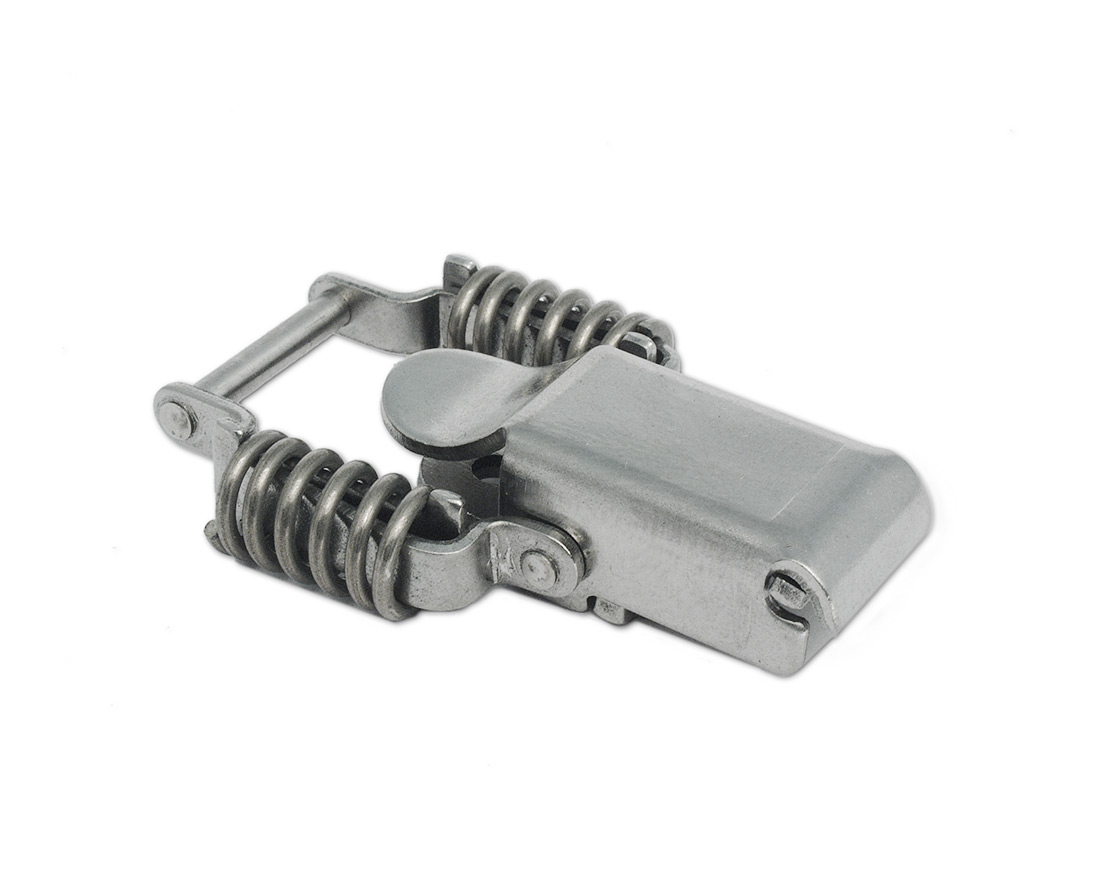

Stainless Steel Spring-Loaded Latches
Spring-loaded latches create a resilient connection between two machine components. The spring action can accommodate limited dimensional variation while keeping doors, covers or panels closed with a defined holding force.
Stainless steel spring latches are suitable for industrial applications requiring corrosion resistance and mechanical durability. Important selection criteria include the available mounting area, overall dimensions, fixing pattern and the product-specific holding force.

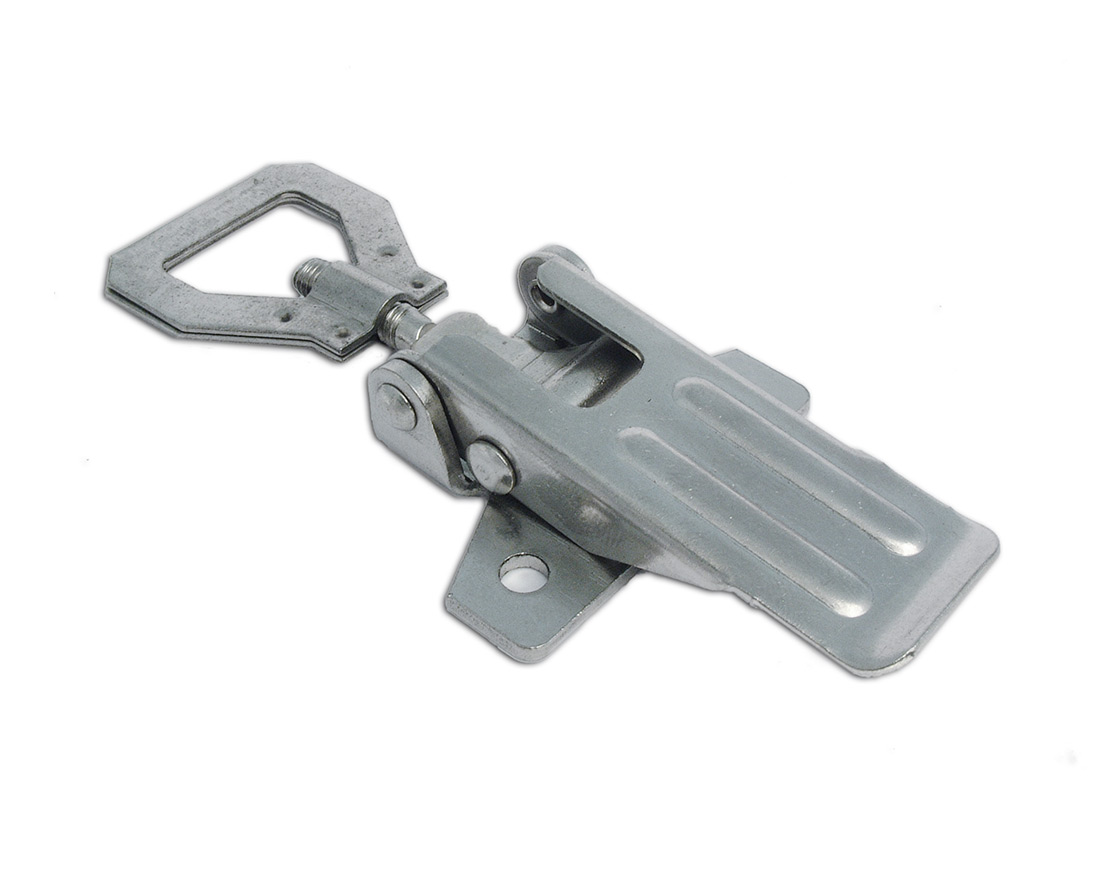

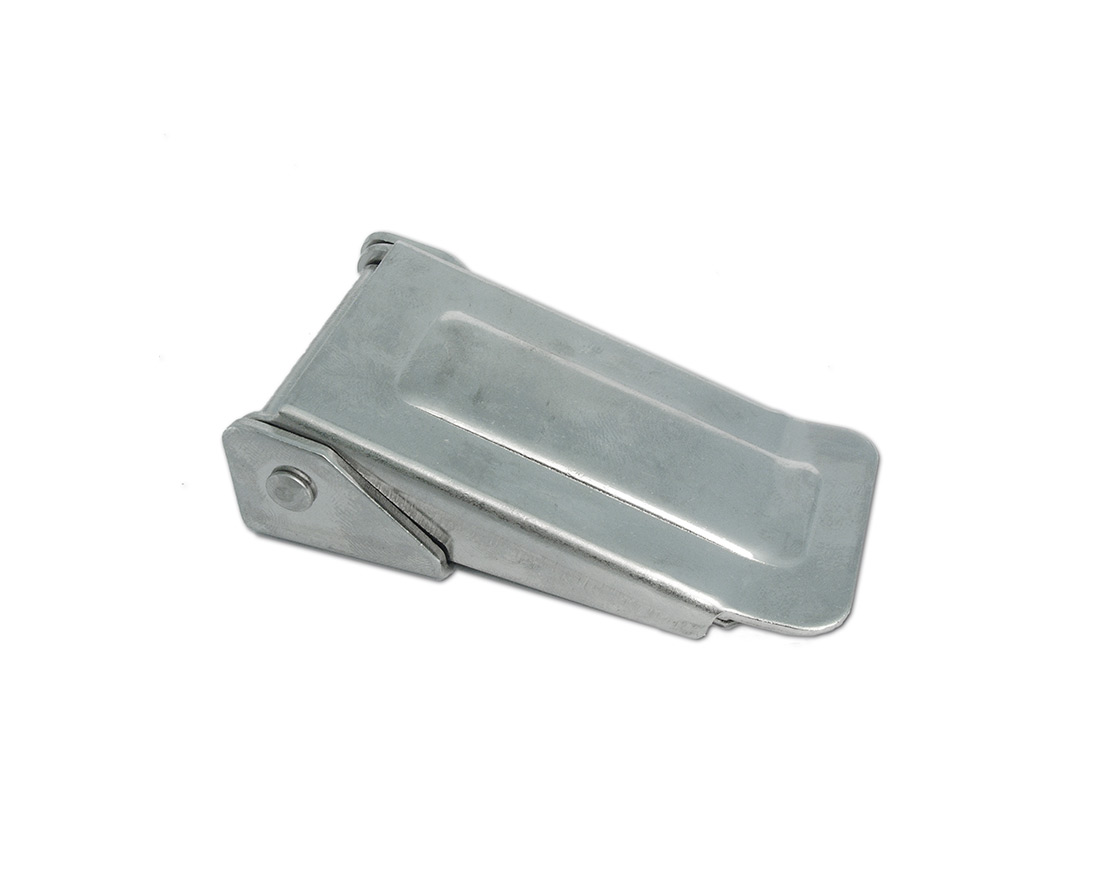

Adjustable Draw Latches and Toggle Latches
Adjustable draw latches allow the closing length to be adapted to the existing construction. Operating the latch pulls the keeper towards the latch body and closes the connection under tension. These industrial latches are suitable for machine covers, larger doors and enclosures with varying distances between the connected components.
MOVET supplies adjustable stainless steel latches with different dimensions, adjustment ranges and holding forces. Before ordering, check the minimum and maximum closing length, latch width, installation direction and the forces occurring during operation.
Locking Systems Made from Stainless Steel, Brass and Plastic
AISI 304 stainless steel provides a corrosion-resistant and mechanically robust solution for many machine and equipment applications. Nickel-plated brass is used for compact ball catches, while plastic components can provide lightweight and flexible counterparts in snap-fit latch systems.
The material should be selected according to moisture, temperature, cleaning agents and mechanical stress. Where a locking system combines several materials, the suitability of every component must be considered under the actual operating conditions.
Check Dimensions, Closing Length and Holding Force
Reliable operation requires the latch and keeper to be positioned correctly. Important selection criteria include the overall dimensions, hole spacing, mounting direction and distance between the components to be connected.
For adjustable draw latches, the available closing-length range must also be considered. The stated holding force describes a property of the individual latch but does not replace a structural assessment of the door, fixing points and any dynamic loads occurring during machine operation.
