Hollow Pin Chains for Conveyor Technology and Drives
Hollow pin chains are equipped with continuous pins for the flexible integration of additional attachments. They enable versatile customisation and are ideal for modular conveyor systems and individual transport solutions.
Cir clip conn.link, hollow pin, RS 60-1 HP ANSI, 3/4" x 1/2", Lambda, DIN 8188, maintenance free
Hollow pin chain 2040-R ANSI, 1 "x 5/8", double pitch chain, corr.resist., DIN 8188, pack 3,05 m
Content: 3.05 metres (€161.85 / 1 metres)
Hollow pin chain 80-1 ANSI, 1"x 5/8", DIN 8188, pack 3,05 m
Content: 3.05 metres (€110.80 / 1 metres)
Cir clip conn.link, hollow pin chain, RF2060 HP ANSI, 1 1/2" x 1/2", double pitch, DIN 8188
Hollow pin chain 60-1 ANSI, 3/4"x 1/2", Lambda, DIN 8188, maintenance free, pack 3,05 m
Content: 3.05 metres (€145.76 / 1 metres)
Hollow pin chain 2080-R ANSI, 2"x 5/8", double pitch chain, corr.resist., DIN 8188, pack 3,05 m
Content: 3.05 metres (€340.45 / 1 metres)
Hollow pin chain 40-1 ANSI, 1/2"x 5/16", DIN 8188, pack 3,05 m
Content: 3.05 metres (€53.64 / 1 metres)
Cir clip conn.link, hollow pin, RS 40-1 HP ANSI, 1/2" x 5/16", Lambda, DIN 8188, maintenance free

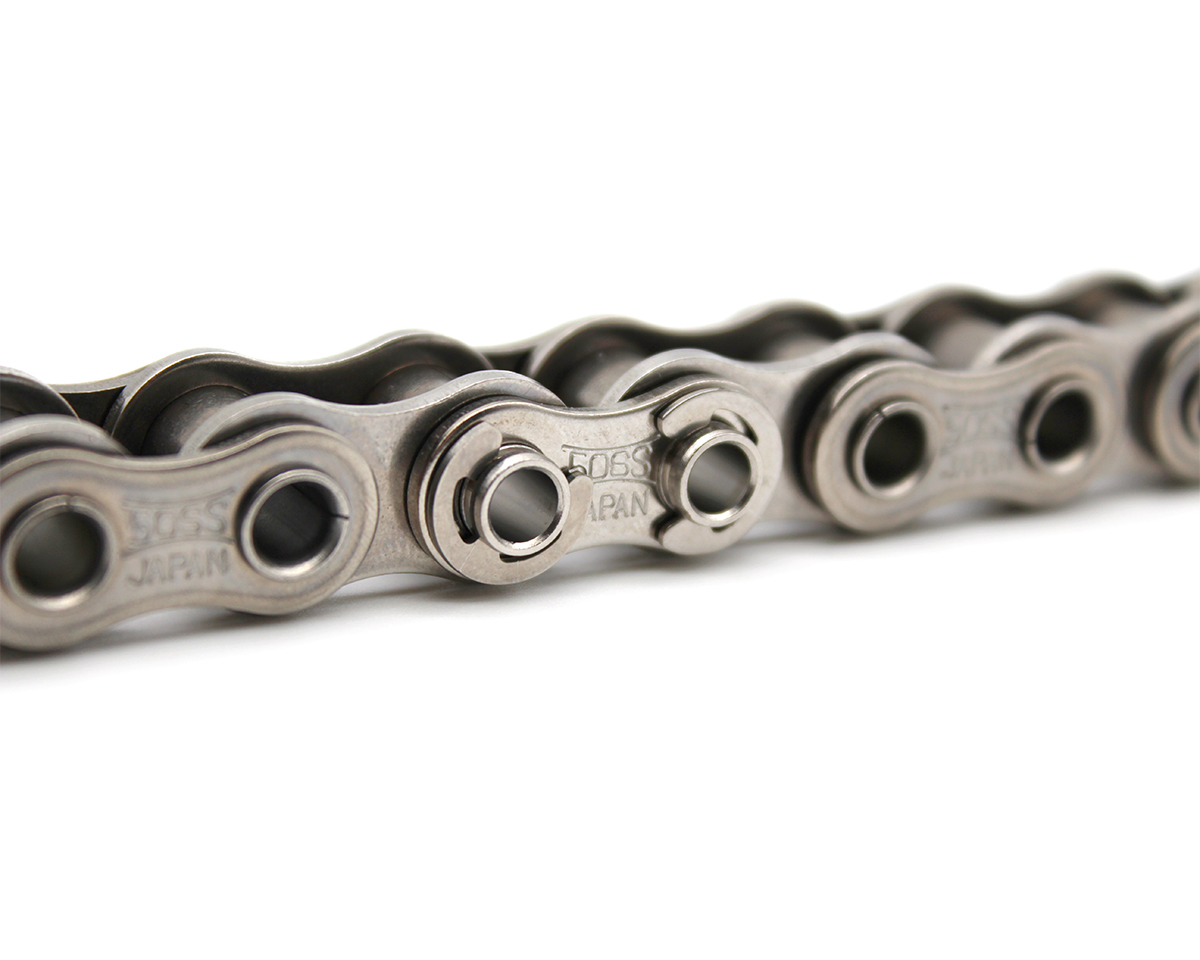

Cir clip conn.link, hollow pin, RS 60-1 HP ANSI, 3/4" x 1/2", corrosion resistant, AISI304, DIN 8188
Hollow pin chain 2080-R ANSI, 2"x 5/8", double pitch chain, DIN 8188, pack 3,05 m
Content: 3.05 metres (€120.10 / 1 metres)
Hollow pin chain 2040-S ANSI, 1"x 5/16", double pitch chain, DIN 8188, pack 3,05 m
Content: 3.05 metres (€34.40 / 1 metres)
Hollow pin chain 60-1 ANSI, 3/4"x 1/2", DIN 8188, pack 3,05 m
Content: 3.05 metres (€86.24 / 1 metres)

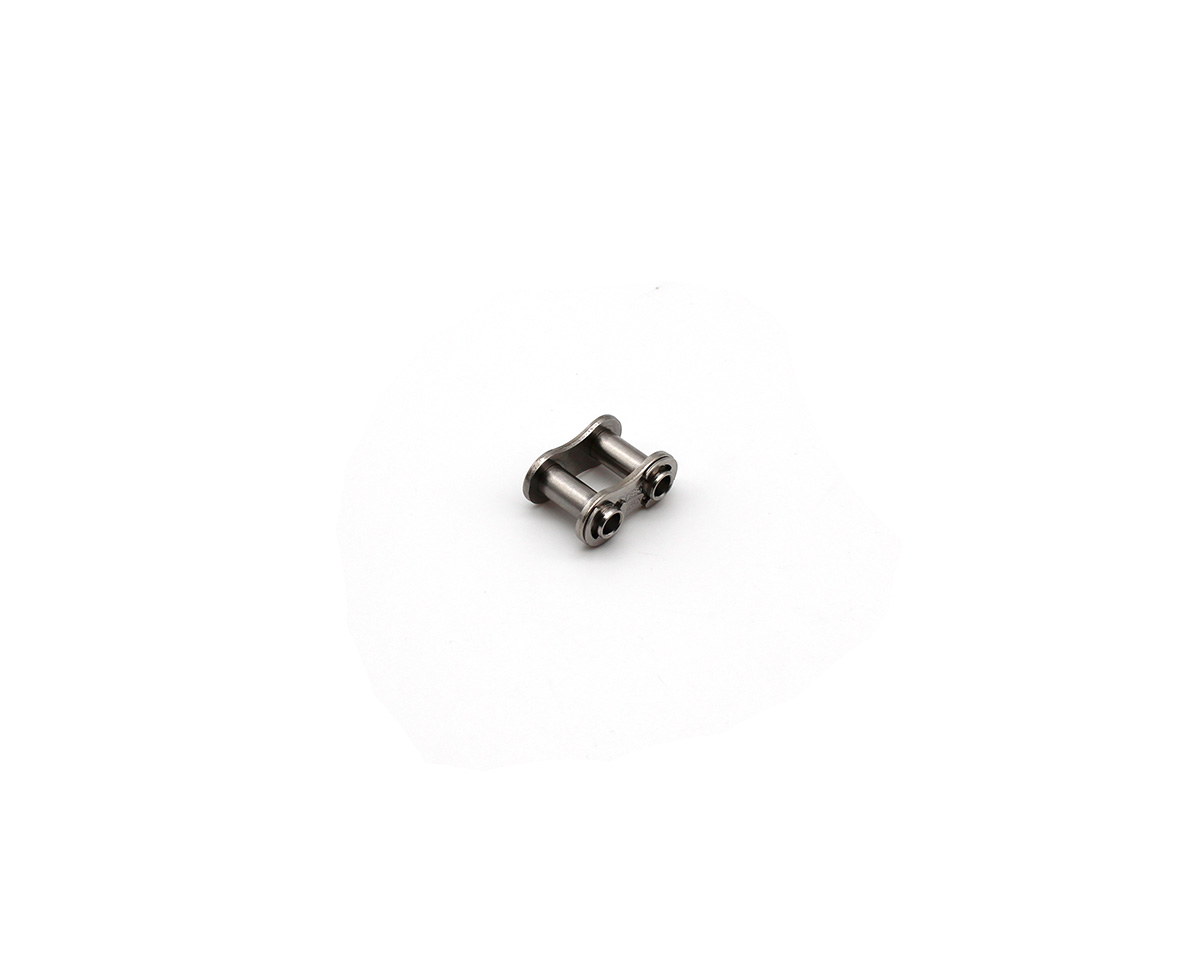

Cir clip conn.link, hollow pin, RS 40-1 HP ANSI, 1/2" x 5/16", corrosion resistant, AISI304, DIN 8188
Hollow pin chain 2040-R ANSI, 1"x 5/16", double pitch chain, DIN 8188, pack 3,05 m
Content: 3.05 metres (€56.08 / 1 metres)
Cir clip conn.link,hollow pin, RF2080 HP ANSI, 2" x 5/8", double pitch, corr.resist., AISI304, DIN 8188
Cir clip conn.link, hollow pin chain, RS 80-1 HP ANSI, 1" x 5/8", Standard, DIN 8188
Hollow pin chain 2060-R ANSI, 1 1/2"x 1/2", double pitch chain, corr.resist., DIN 8188, pack 3,05 m
Content: 3.05 metres (€232.90 / 1 metres)
Cir clip conn.link, hollow pin chain, RF2040 HP ANSI, 1" x 5/16", double pitch, DIN 8188
Cir clip conn.link, hollow pin chain, RF2050 HP ANSI, 1 1/4" x 3/8", double pitch, DIN 8188
Hollow pin chain 50-1 ANSI, 5/8"x 3/8", corrosion resistant, AISI304, DIN 8188, pack 3,05 m
Content: 3.05 metres (€179.28 / 1 metres)
Hollow pin chain 60-1 ANSI, 3/4"x 1/2", corrosion resistant, AISI304, DIN 8188, pack 3,05 m
Content: 3.05 metres (€195.56 / 1 metres)

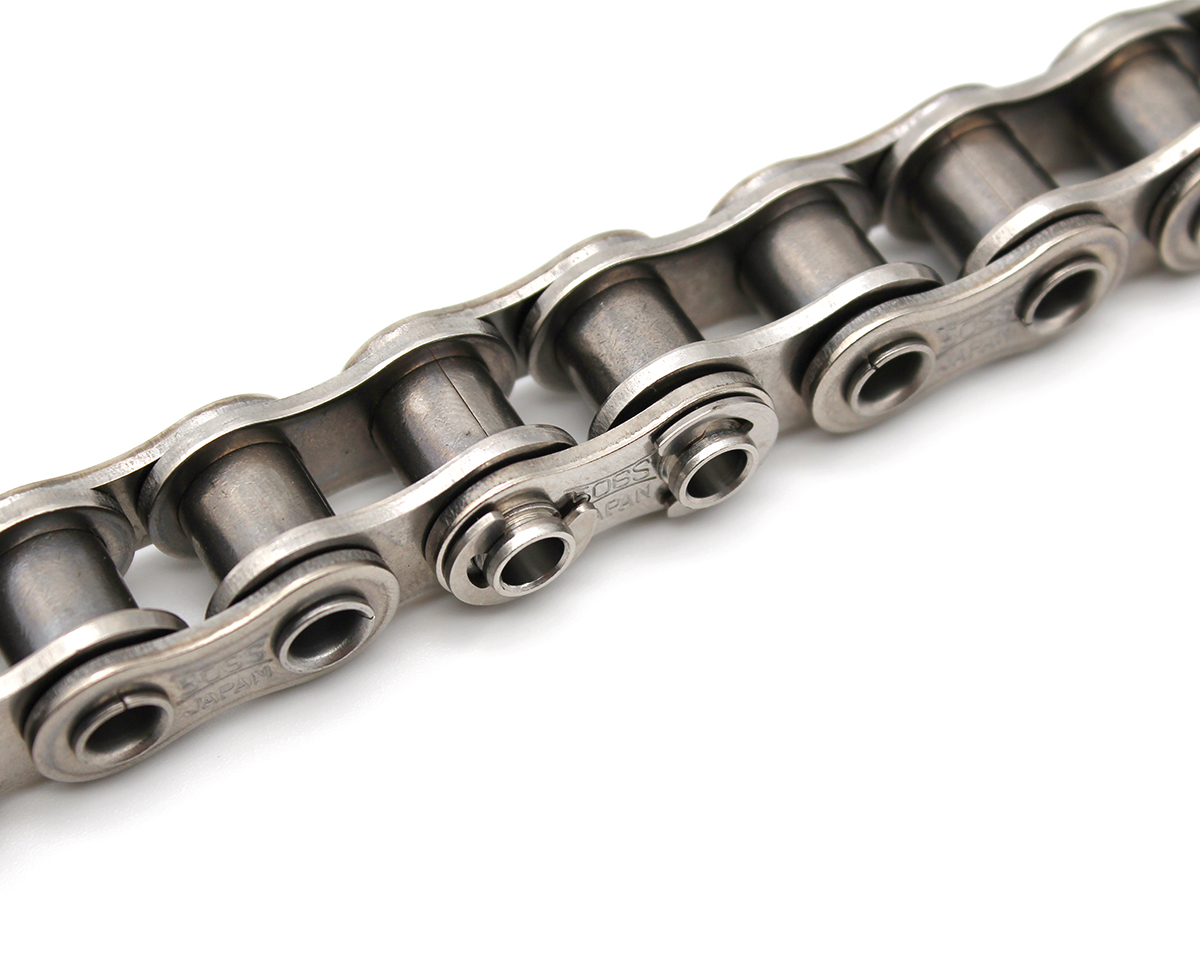

Hollow pin chain 50-1 ANSI, 5/8"x 3/8", Lambda, DIN 8188, maintenance free, pack 3,05 m
Content: 3.05 metres (€114.48 / 1 metres)
Hollow pin chain 80-1 ANSI, 1"x 5/8", corrosion resistant, AISI304, DIN 8188, pack 3,05 m
Content: 3.05 metres (€450.32 / 1 metres)
Hollow pin chain 2080-S ANSI, 2"x 5/8", double pitch chain, DIN 8188, pack 3,05 m
Content: 3.05 metres (€77.58 / 1 metres)
Hollow Pin Roller Chains for Flexible Conveyor Systems
Hollow pin roller chains are conveyor chains whose bearing pins contain a continuous bore. Cross rods, flights, carriers and other attachments can be mounted directly through these hollow pins, allowing the chain to be adapted to the product and the required conveying process.
MOVET supplies TSUBAKI hollow pin chains in single-pitch and double-pitch designs. Different materials, pitches and roller configurations are available for modular conveyor systems, handling equipment and application-specific transport solutions.
How Does a Hollow Pin Conveyor Chain Work?
The hollow pin is positioned at the centre of the chain articulation. As a result, the distance between two mounted attachments remains constant while the chain travels along a straight section and while it wraps around the sprocket.
Cross rods or fastening pins can be inserted through the hollow pins and secured outside the chain. When two parallel hollow pin chains are connected by cross rods, the attachment load can be distributed between both chain strands.
Depending on the attachment design, conveying elements can be replaced, repositioned or adapted without replacing the complete conveyor chain. The attachments must not restrict articulation or interfere with the sprockets and chain guides.
Single-Pitch or Double-Pitch Hollow Pin Chain?
MOVET offers standard ANSI hollow pin roller chains with single pitch as well as long-link double-pitch hollow pin chains. The appropriate design depends on the required attachment spacing, conveyor length and mechanical operating conditions.
| Chain design | Available sizes | Pitch range | Typical use |
|---|---|---|---|
| Single-pitch hollow pin chain | RS 40, RS 50, RS 60 and RS 80 | 12.70 to 25.40 mm | Compact conveyor systems and shorter distances between attachments |
| Double-pitch hollow pin chain | RF 2040, RF 2050, RF 2060 and RF 2080 | 25.40 to 50.80 mm | Longer conveyor sections and wider spacing between cross rods or flights |
A longer pitch reduces the number of chain joints over a given conveyor length but also changes the dimensions and operating movement of the chain. The selected pitch must correspond to the sprockets and the attachment spacing of the conveyor construction.
Steel, Stainless Steel or Lube-Free Hollow Pin Chains?
The appropriate product family depends on the operating environment, corrosion exposure and lubrication requirements. The MOVET range includes the following principal designs:
| Product family | Characteristics | Typical selection criteria |
|---|---|---|
| Steel | Robust standard design for industrial conveying duties | Dry or controlled environments where regular lubrication is possible |
| Stainless Steel SS | Corrosion-resistant chain manufactured primarily from AISI 304 stainless steel | Moisture, regular cleaning and selected corrosive operating conditions |
| TSUBAKI Lambda | Designed for operation without regular external relubrication | Restricted maintenance access or applications where additional chain oil is undesirable |
A stainless steel or lube-free hollow pin chain must still be inspected regularly. Permissible load, operating temperature, chemical resistance and lubrication conditions should be checked using the technical information for the exact product selected.
Mounting Cross Rods, Flights and Custom Attachments
The bore through the hollow pins provides flexible mounting options for different conveyor components. Two parallel chains can be connected using cross rods carrying support plates, mesh, flights, product carriers or application-specific fixtures.
The hollow-pin diameter, cross-rod diameter, attachment method and distance between the two chain strands must be coordinated. The rod and its securing components must remain clear of the chain guides, sprockets and neighbouring attachments throughout the complete conveyor path.
For individual cross rods, hole patterns, flights and product carriers, MOVET also supplies conveyor chains with special attachments for customised handling and transport processes.
S-Type and R-Type Double-Pitch Hollow Pin Chains
Depending on the chain size, double-pitch hollow pin chains are available with an S-type bush or an enlarged R-type roller. The appropriate version depends on how the chain is supported and guided within the conveyor.
| Design | Construction feature | Typical use |
|---|---|---|
| S type | Smaller bush or roller diameter | Compact chain guides and conveyors where the chain does not run directly on enlarged rollers |
| R type | Enlarged roller diameter | Conveyor systems in which the chain rollers travel along a supporting rail |
For example, an RF2040 hollow pin chain has a diameter of 7.92 mm in the S version and 15.88 mm in the R version. The guide rail, sprocket arrangement and available installation space must match the selected roller design.
ANSI Hollow Pin Chains According to DIN 8188
The hollow pin chains in the MOVET range use American ANSI dimensions according to DIN 8188. In addition to the chain designation, the pitch, inner width, roller or bush diameter and hollow-pin bore must be checked.
| Selection feature | Available range |
|---|---|
| Pitch | 12.70 to 50.80 mm |
| Roller or bush diameter | 7.92 to 28.58 mm |
| Inner width | 7.95 to 15.88 mm |
| Dimensional standard | DIN 8188 / ANSI dimensions |
| Strand configuration | Simplex |
Standard sprockets of the corresponding ANSI size can generally be used for single-pitch hollow pin chains. Double-pitch versions require sprockets suitable for double-pitch roller chains. Existing sprockets should be inspected for the correct pitch, tooth count, wear and alignment before fitting a replacement chain.
Selecting, Installing and Inspecting Hollow Pin Chains
Connecting links must match the chain size, product family and material design. A connecting link intended for a standard steel chain should not be installed on a stainless steel or TSUBAKI Lambda hollow pin chain without checking its technical compatibility.
During operation, inspect chain tension, alignment, articulation, elongation and the attachment fasteners regularly. Loose cross rods or flights can create unequal loading, chain distortion or contact with the sprockets and supporting guides.
Use the product filters to select hollow pin roller chains by product family, ANSI chain size, pitch, roller diameter and inner width. Additional conveyor chains with an extended pitch are available under double-pitch roller chains .
