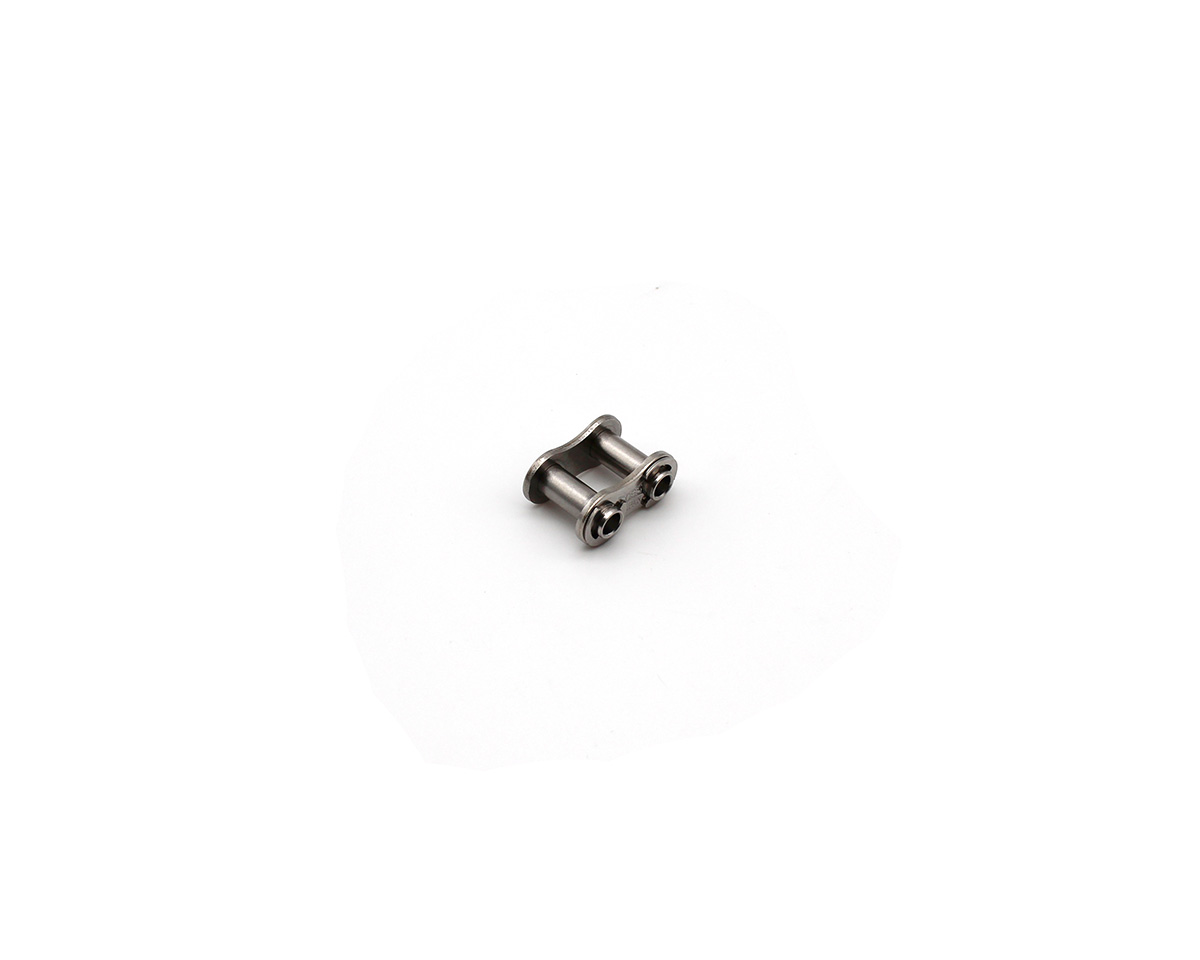

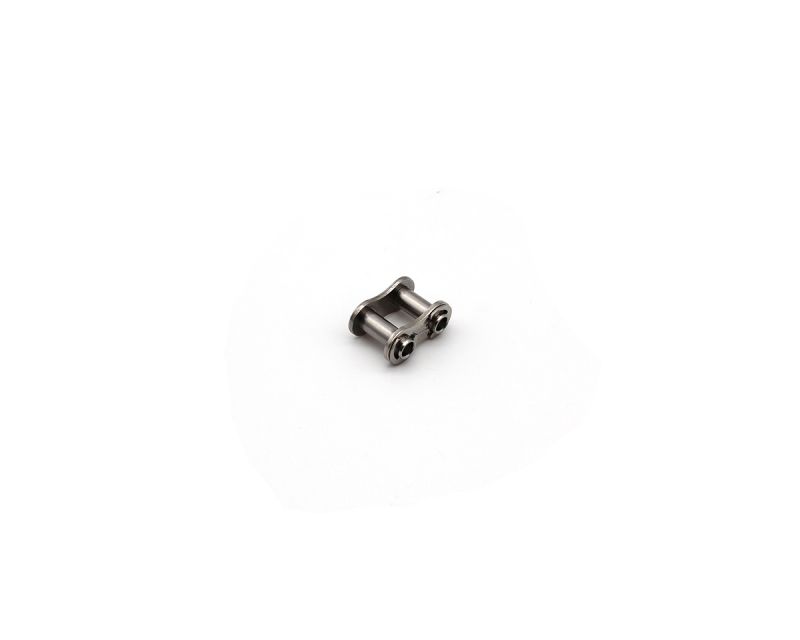

Cir clip conn.link, hollow pin, RS 40-1 HP ANSI, 1/2" x 5/16", corrosion resistant, AISI304, DIN 8188

EAN 4061408033980

Type 312RS40-1HPSS

Discover the TSUBAKI Cir Clip Connection Link, designed for RS 40-1 HP ANSI hollow pin chains. Crafted from corrosion-resistant AISI304, it ensures durability and optimal performance in various applications.

Made from AISI 304 stainless steel, providing exceptional corrosion resistance for extended service life in harsh environments.
Precision-engineered to DIN 8188 standards, ensuring compatibility and reliability in various mechanical applications.
Designed for RS 40-1 HP ANSI hollow pin chains with a pitch of 12.70 mm, suitable for high-performance transmission systems.
Inner width of 7.95 mm and bush diameter of 7.92 mm allow for efficient assembly and integration into existing machinery.
Trusted quality from TSUBAKI, a leader in power transmission and motion control technologies, ensuring optimal performance.

Quantity	Price
From 1	€8.33*
From 25	€7.83*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 8 days

€8.33* / piece

Our payment methods:

Product properties

Drawing

Product description

Cir clip conn.link, hollow pin chain, RS 40-1 HP ANSI, 1/2" x 5/16", corrosion resistant, AISI304, DIN 8188, pitch 12,70 mm, inner width 7,95 mm, bush-Ø 7,92 mm, TSUBAKI

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
