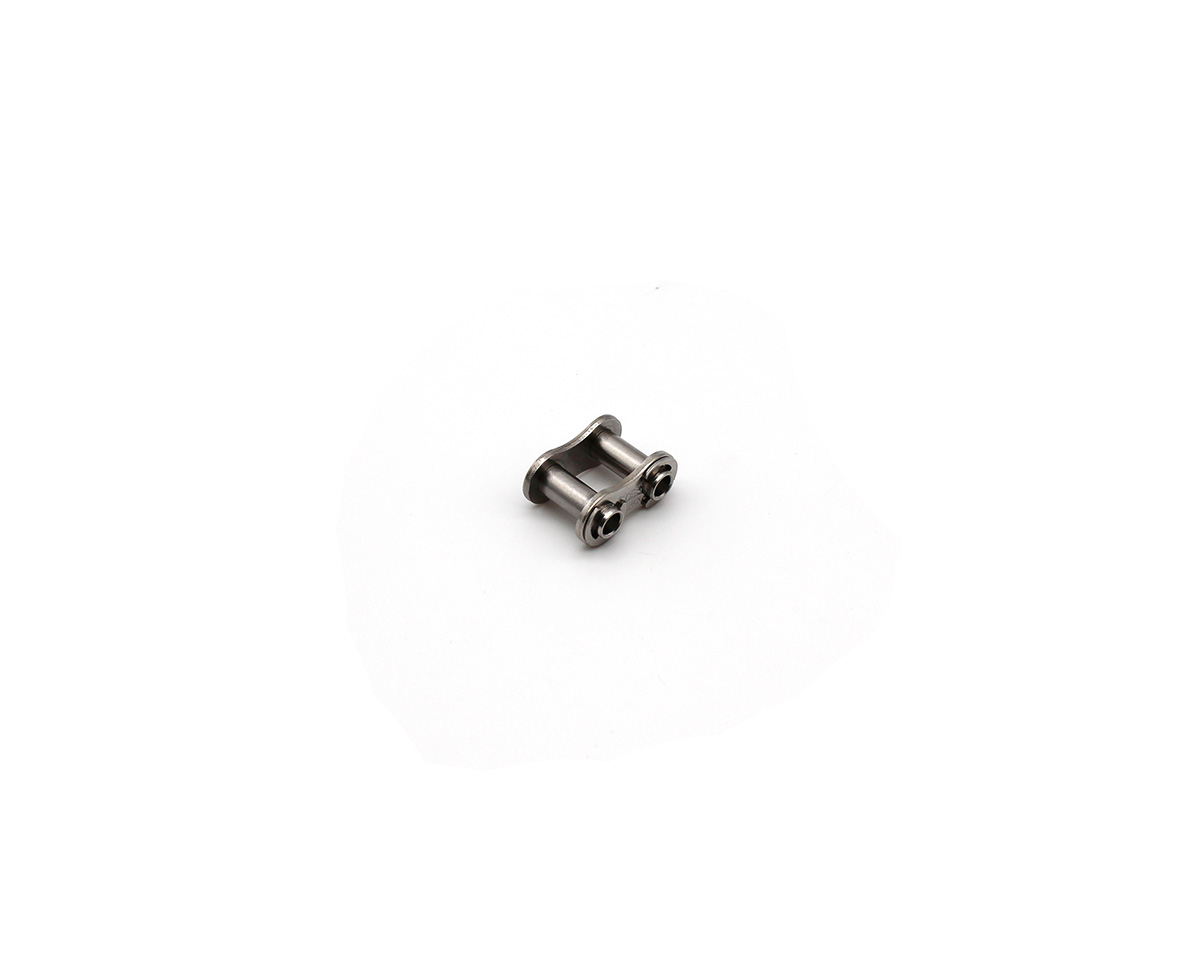

Cir clip conn.link, hollow pin, RS 60-1 HP ANSI, 3/4" x 1/2", corrosion resistant, AISI304, DIN 8188

EAN 4061408042067

Type 312RS60-1HPSS

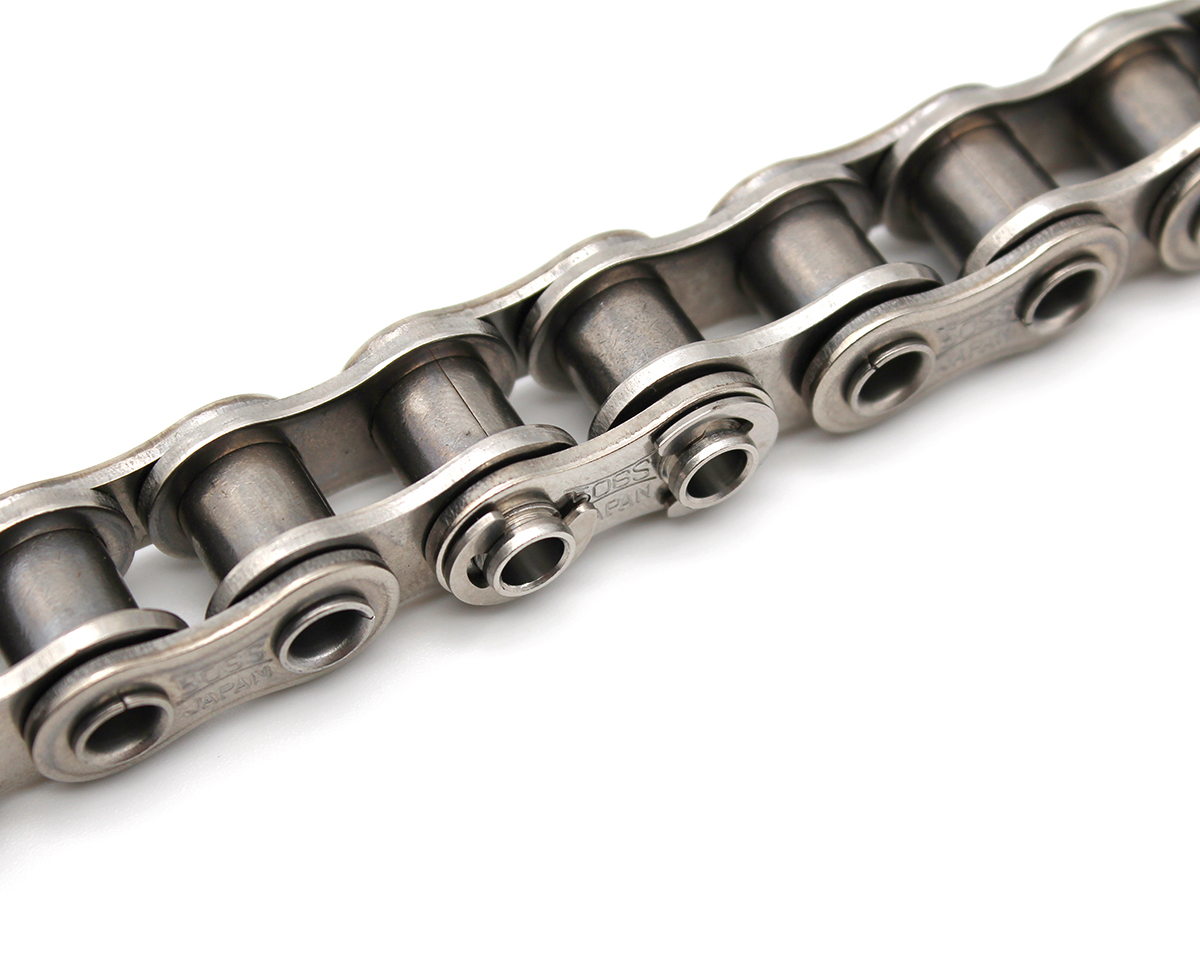

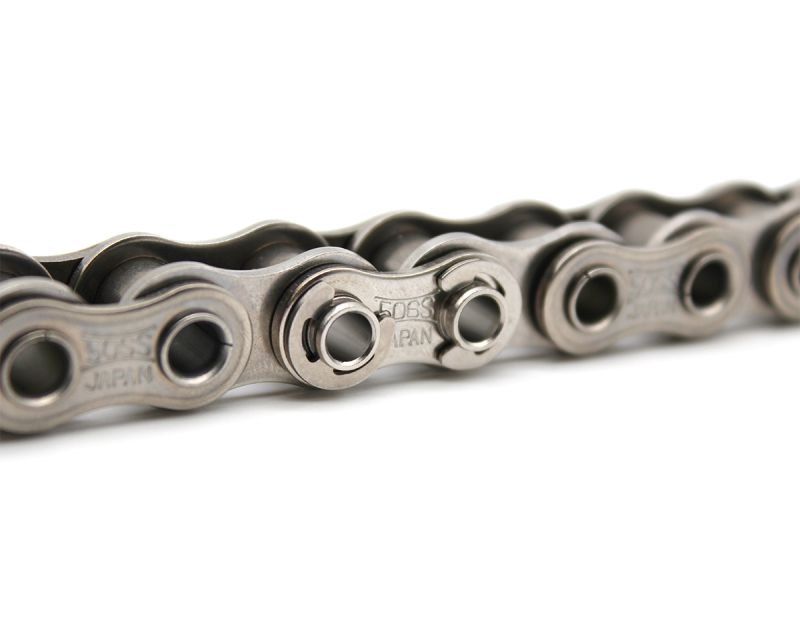

Discover the TSUBAKI Cir Clip Connecting Link, designed for RS 60-1 HP ANSI hollow pin chains. Made from corrosion-resistant AISI 304 stainless steel, ensuring durability and reliability in demanding environments.

High corrosion resistance due to AISI 304 stainless steel construction
Designed for use in RS 60-1 HP ANSI applications, ensuring compatibility with standard hollow pin chains
Pitch of 19.05 mm and inner width of 12.70 mm for precise fit and performance
Bush diameter of 11.91 mm optimized for smooth operation and durability
Manufactured according to DIN 8188 standards for reliable quality and performance

Quantity	Price
From 1	€14.19*
From 25	€13.33*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 8 days

€14.19* / piece

Our payment methods:

Product properties

Drawing

Product description

Cir clip conn.link, hollow pin chain, RS 60-1 HP ANSI, 3/4" x 1/2", corrosion resistant, AISI304, DIN 8188, pitch 19,05 mm, inner width 12,70 mm, bush-Ø 11,91 mm, TSUBAKI

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
