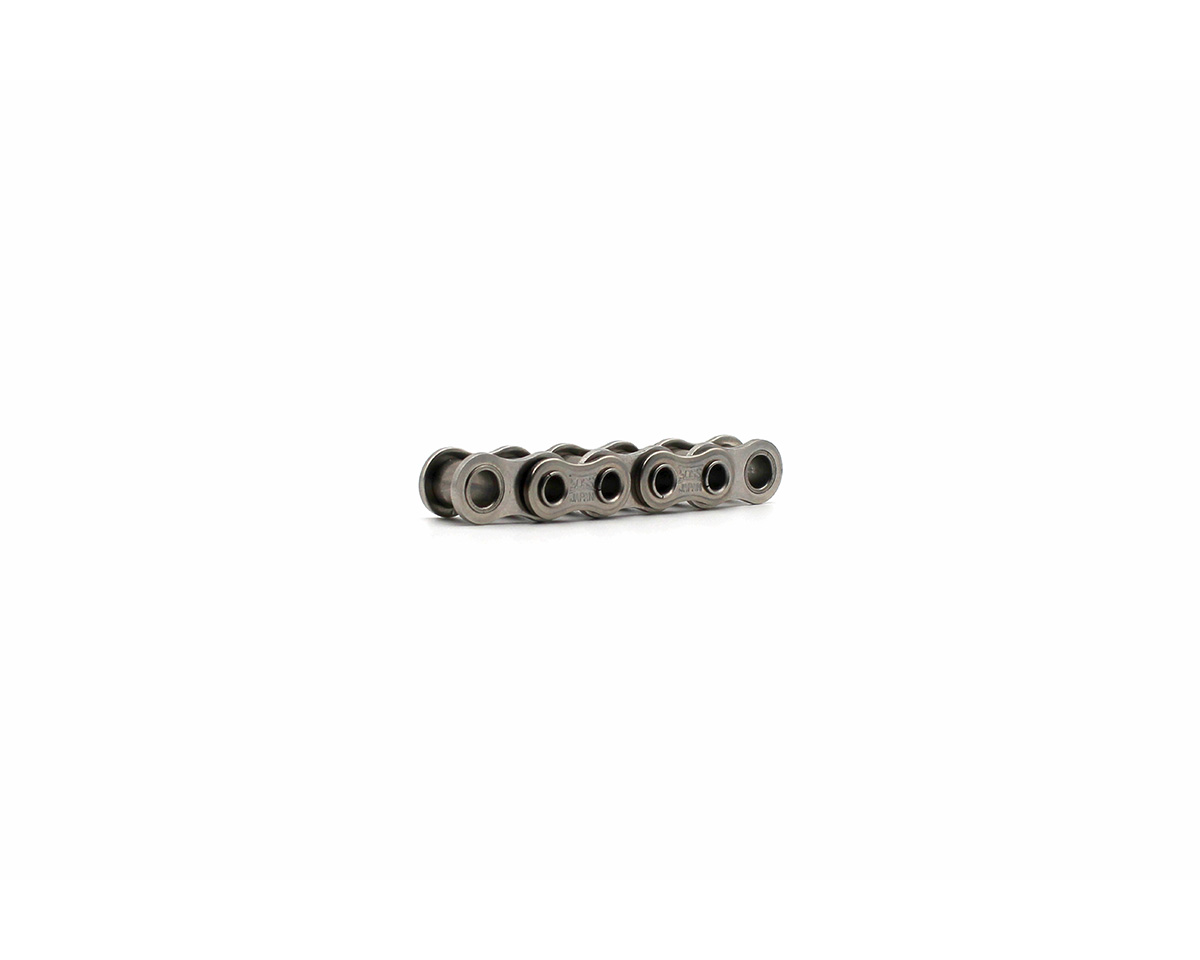

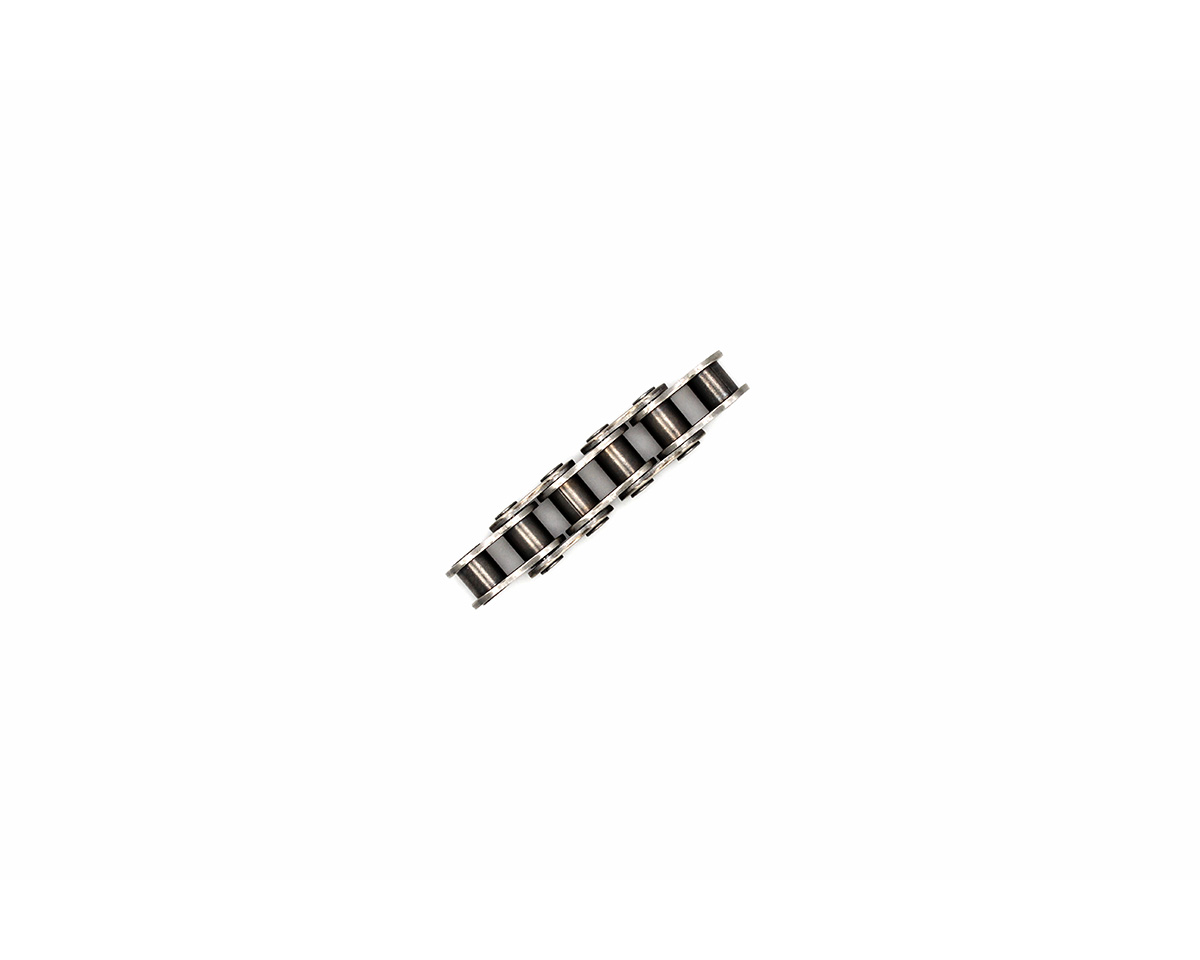

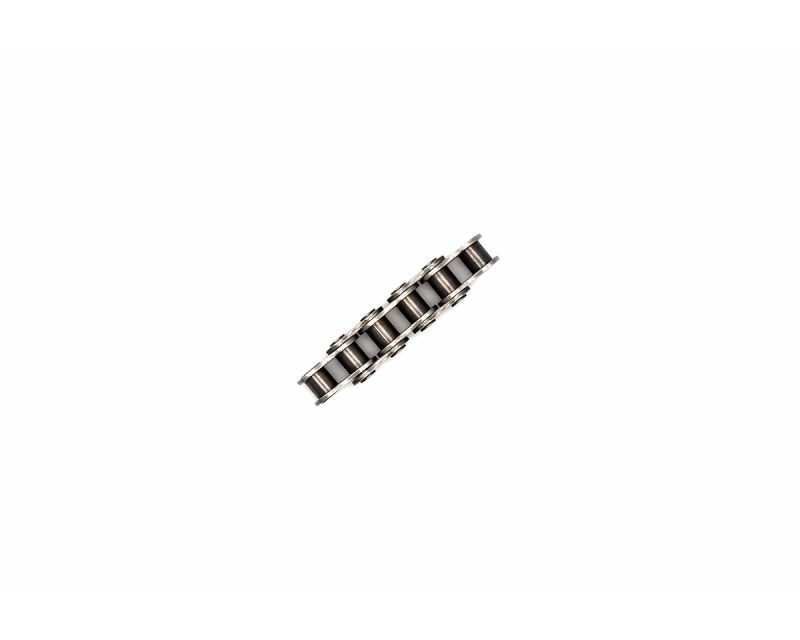

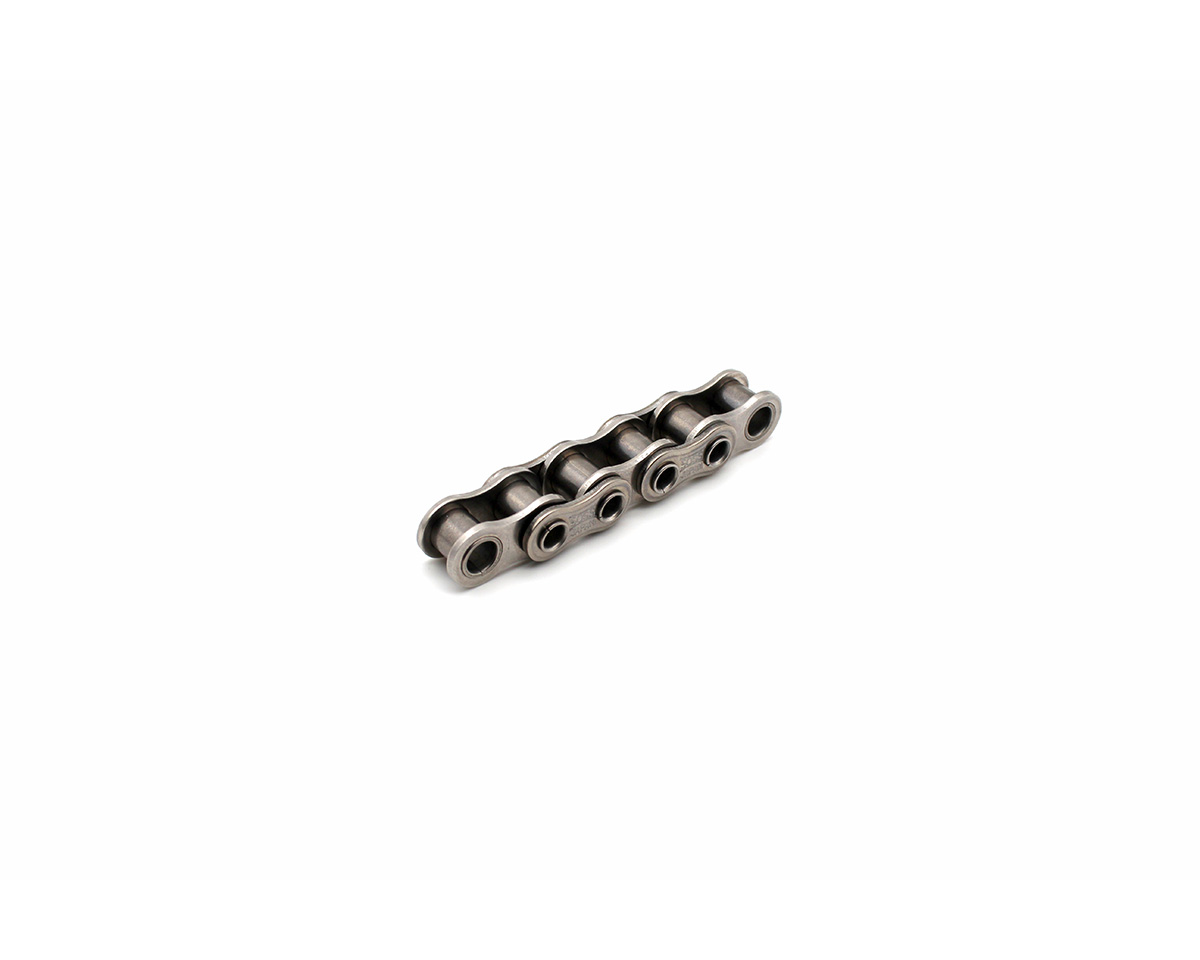

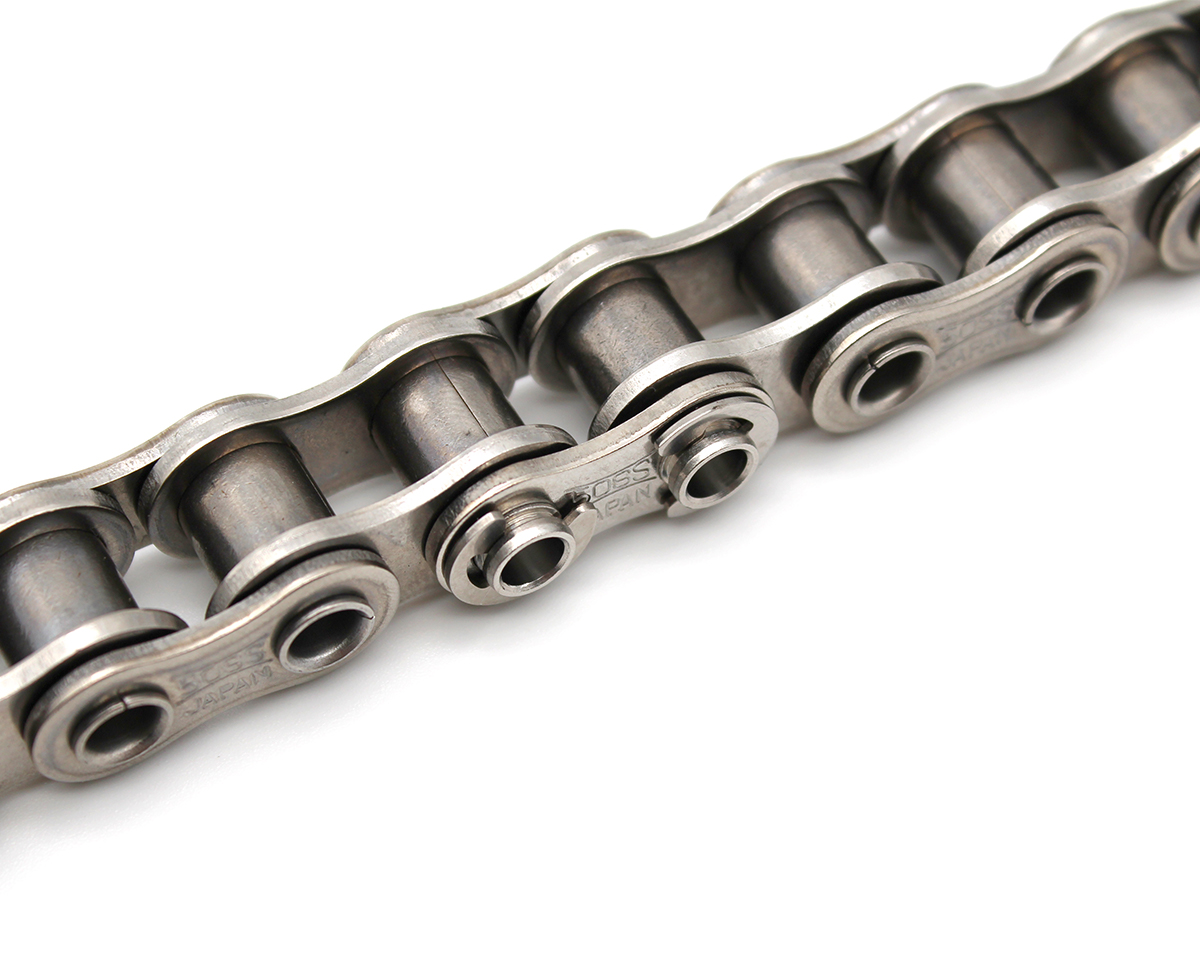

Hollow pin chain 60-1 ANSI, 3/4"x 1/2", corrosion resistant, AISI304, DIN 8188, pack 3,05 m
EAN
4061408033683
Type
302RS60-1MHPSS
Discover the RS 60 A hollow pin chain, 3/4"x 1/2", crafted from corrosion-resistant AISI304 stainless steel. Ideal for engineering applications, featuring precise dimensions for optimal performance.
| Quantity | Price | Base price |
|---|---|---|
| From 1 |
€621.33*
|
€203.71* / 1 metres |
| From 3 |
€611.38*
|
€200.45* / 1 metres |
| From 10 |
€606.41*
|
€198.82* / 1 metres |
| From 20 |
€596.47*
|
€195.56* / 1 metres |
Currently sold out, Refill time: 8 days
Our payment methods:
Invoice
Accessories

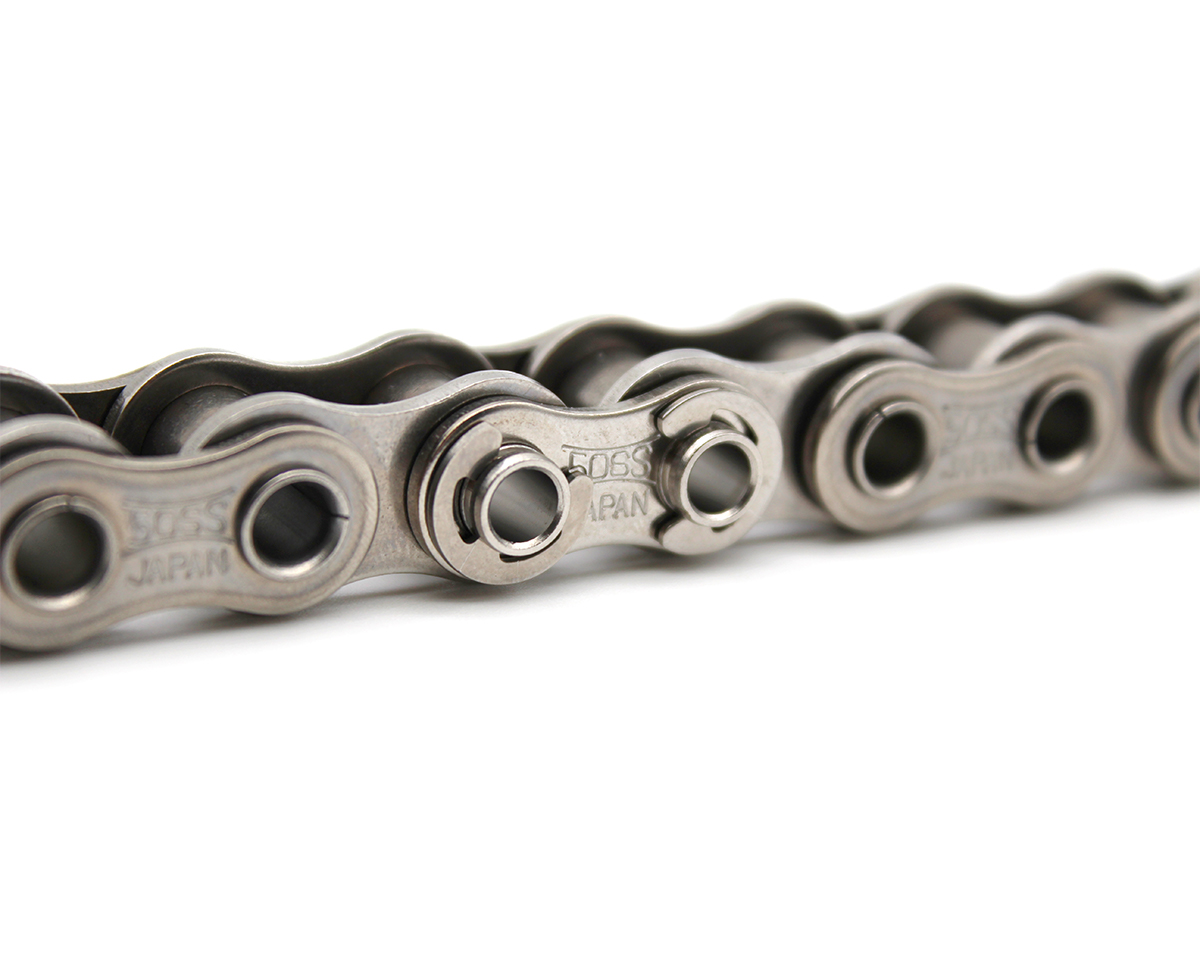

Cir clip conn.link, hollow pin, RS 60-1 HP ANSI, 3/4" x 1/2", corrosion resistant, AISI304, DIN 8188
From
€13.33*
Type No.:
312RS60-1HPSS
Product properties
| Product family: | Stainless Steel SS |
| Abbreviation: | RS 60 A 3/4 x 1/2 |
| Roll Ø (mm): | 11,91 |
| Type: | Hollow bolts |
| Inner width (mm): | 12,70 |
| Pitch/Pitch (mm): | 19,05 |
| Corrosion resistant: | Yes |
| DIN standard: | DIN 8188 |
Drawing
Hollow pin chain 60-1 ANSI, 3/4"x 1/2", corrosion resistant, ASISI304, pitch 19,05 mm, inner width 12,70 mm, bush-Ø 11,91 mm, hollow pin-Ø 5,99 mm, DIN 8188, TSUBAKI, package 3,05 M. incl. conn.link
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
