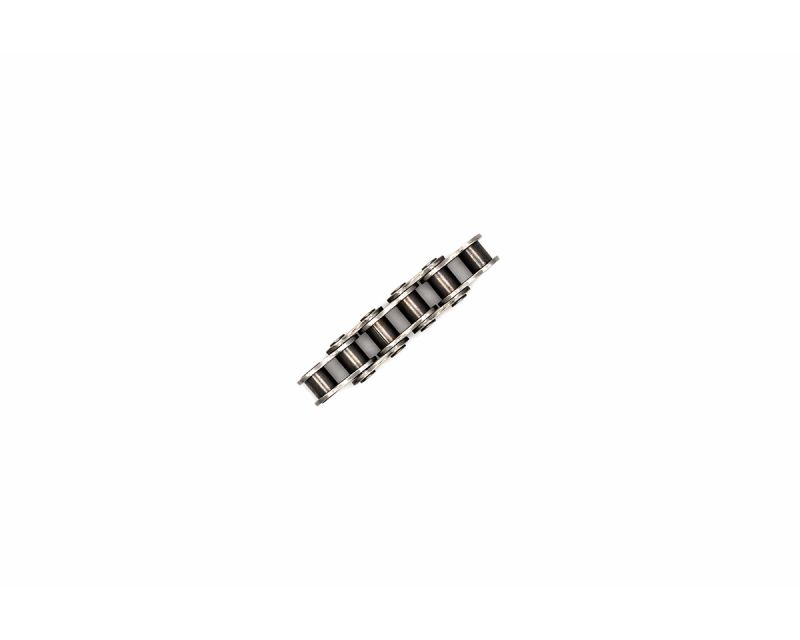

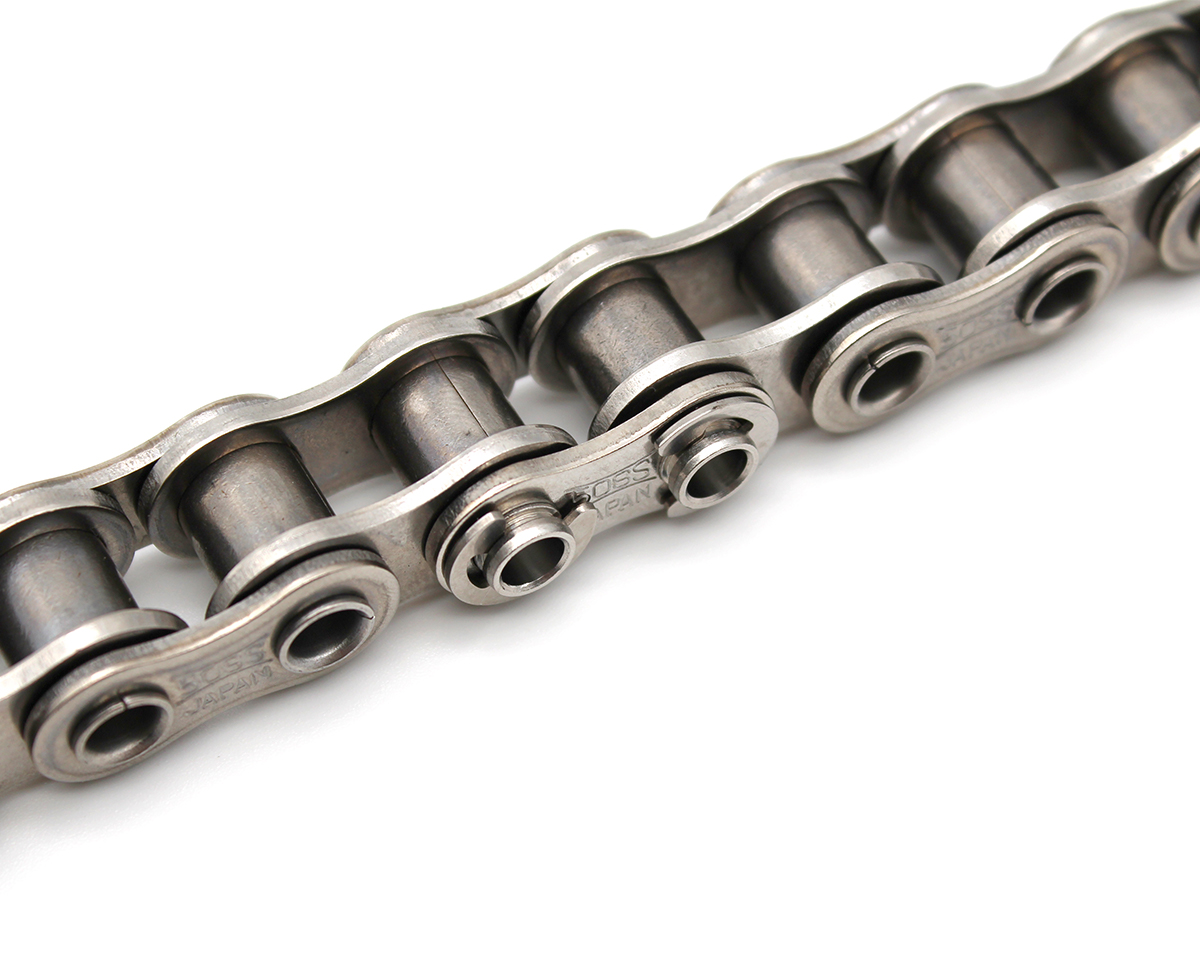

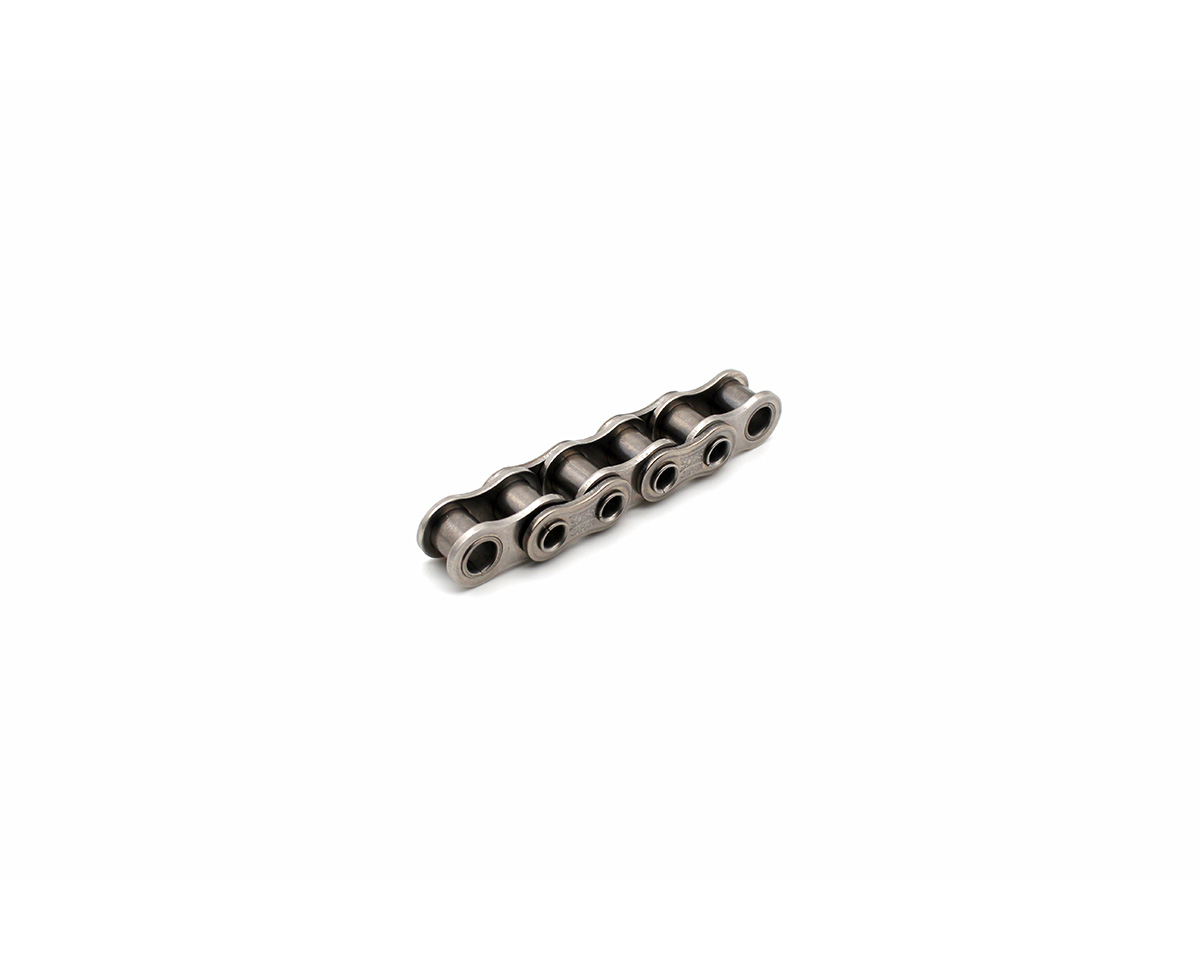

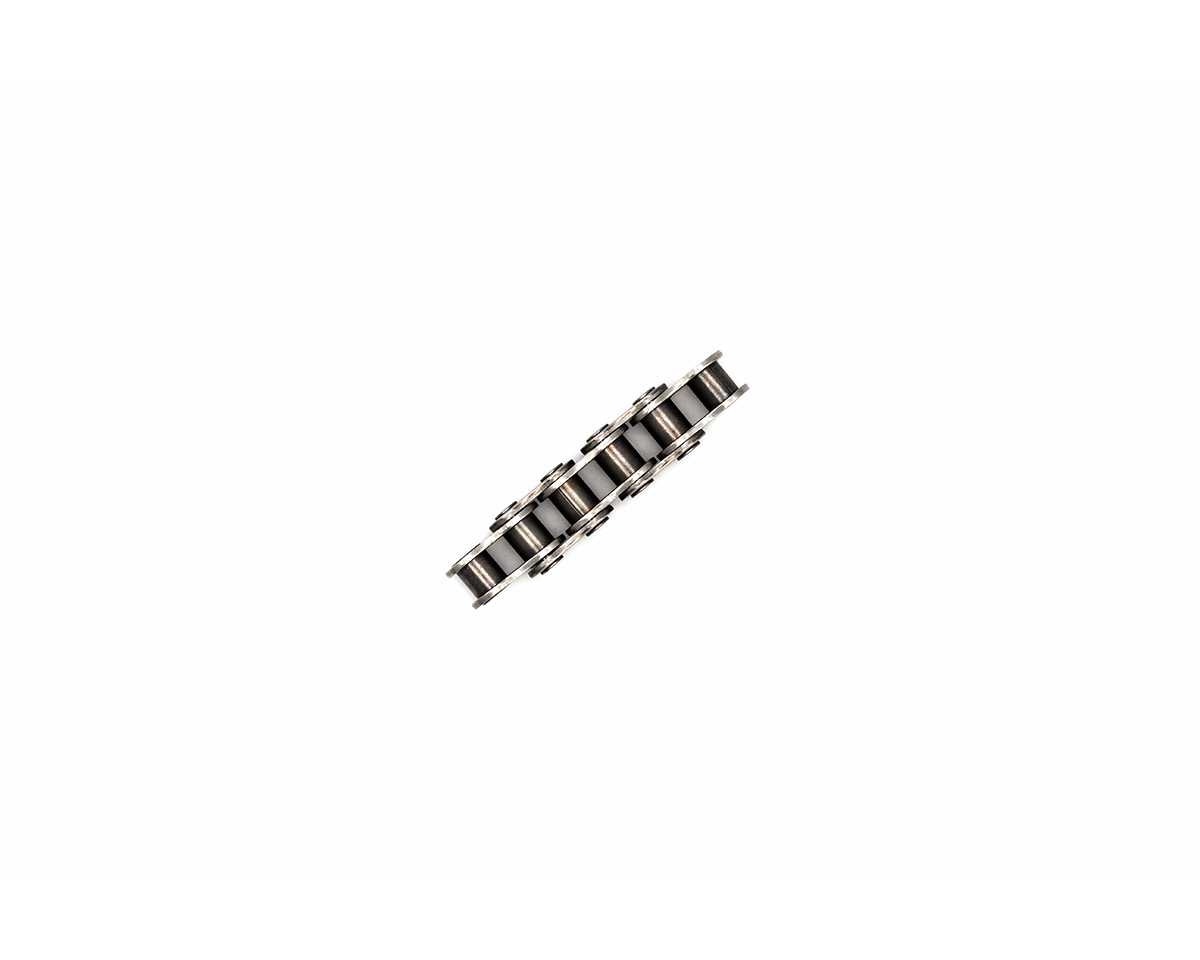

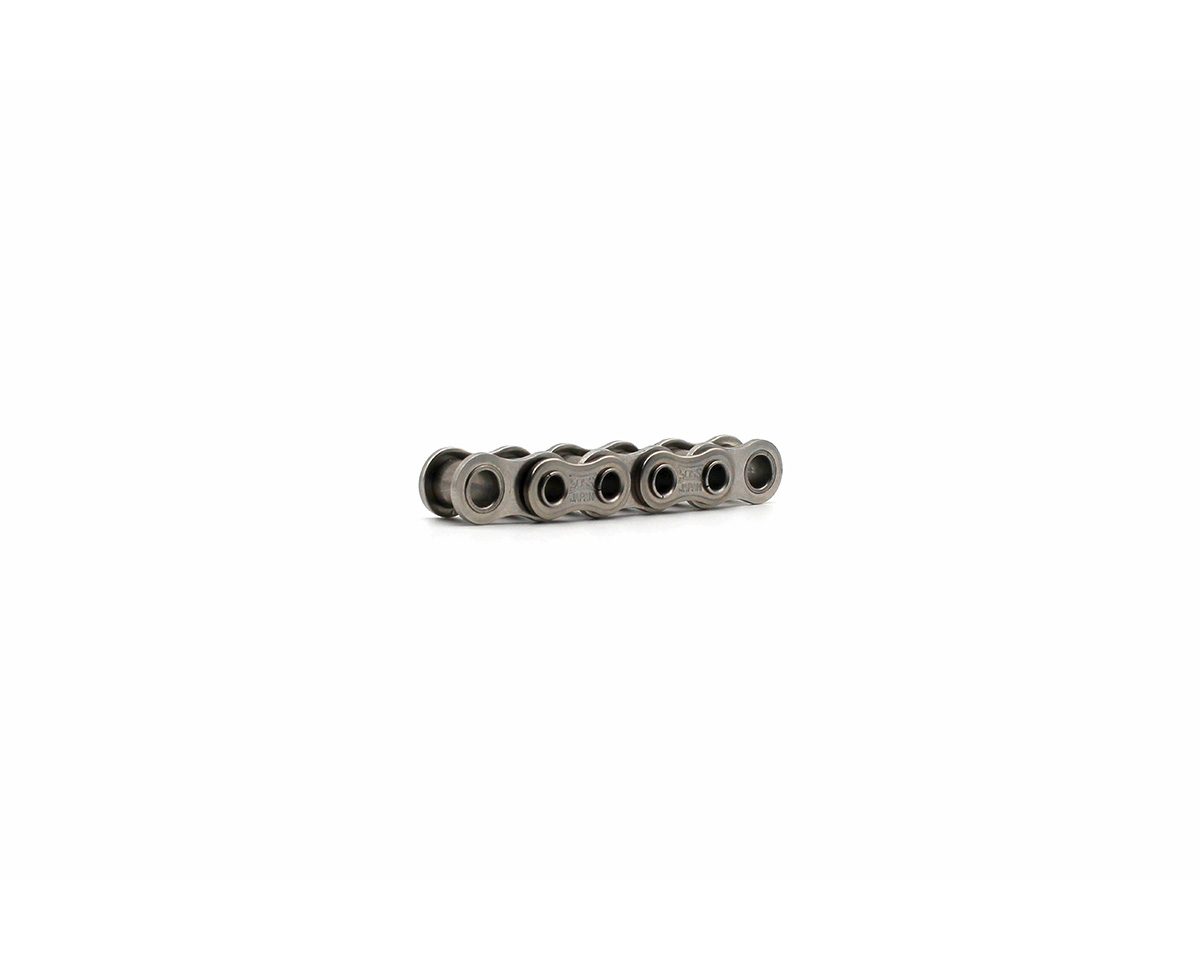

Hollow pin chain 50-1 ANSI, 5/8"x 3/8", corrosion resistant, AISI304, DIN 8188, pack 3,05 m

EAN 4061408031252

Type 302RS50-1MHPSS

Discover the RS 50 A 5/8 x 3/8 hollow pin chain, featuring corrosion-resistant AISI 304 stainless steel. Built to DIN 8188 standards, it offers durability and reliability for demanding applications.

Precise pitch of 15.88 mm ensures compatibility with ANSI standards for reliable performance.
Constructed from AISI 304 stainless steel, offering superior corrosion resistance for enhanced durability in challenging environments.
Hollow pin design provides easier assembly and disassembly, allowing for greater flexibility in applications.
Inner width of 9.53 mm and roller diameter of 10.16 mm optimize load distribution, ensuring smooth operation and longevity.
Supplied in a convenient 3.05 m package, including a connection link for straightforward installation.

Quantity	Price	Base price
From 1	€569.59*	€186.75* / 1 metres
From 3	€560.47*	€183.76* / 1 metres
From 10	€555.92*	€182.27* / 1 metres
From 20	€546.80*	€179.28* / 1 metres

Currently sold out, Refill time: 8 days

Content: 3.05 metres (€179.28* / 1 metres)

€569.59* / PU

PU: 3.05 metres (€186.75* / 1 metres)

Our payment methods:

Accessories

Cir clip conn.link, hollow pin, RS 50-1 HP ANSI, 5/8" x 3/8", corrosion resistant, AISI304, DIN 8188

Type No.: 312RS50-1HPSS

From €10.17*

Product properties

Product family:	Stainless Steel SS
Abbreviation:	RS 50 A 5/8 x 3/8
DIN standard:	DIN 8188
Type:	Hollow bolts
Pitch/Pitch (mm):	15,88
Roll Ø (mm):	10,16
Inner width (mm):	9,53
Corrosion resistant:	Yes

Drawing

Product description

Hollow pin chain 50-1 ANSI, 5/8"x 3/8", corrosion resistant, AISI304, pitch 15,88 mm, inner width 9,53 mm, bush-Ø 10,16 mm, hollow pin-Ø 5,12 mm, DIN 8188, TSUBAKI, package 3,05 M. incl. conn.link

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
