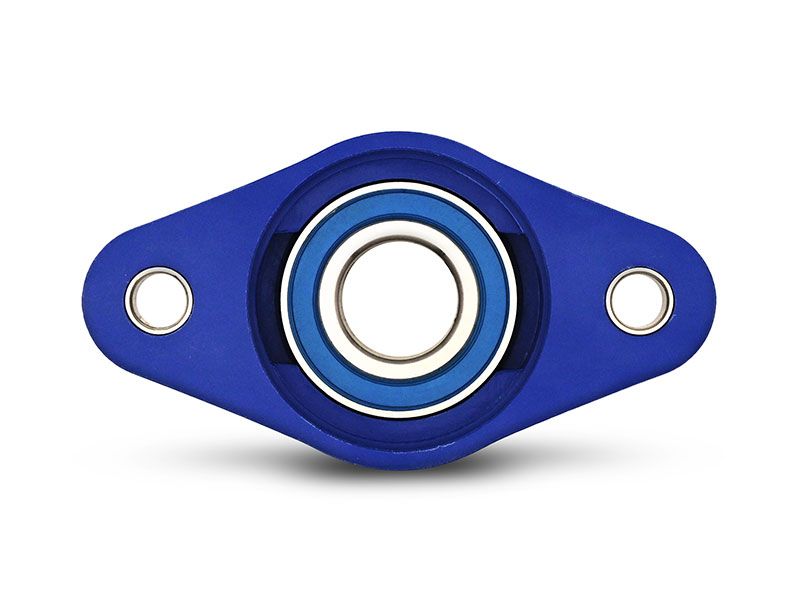

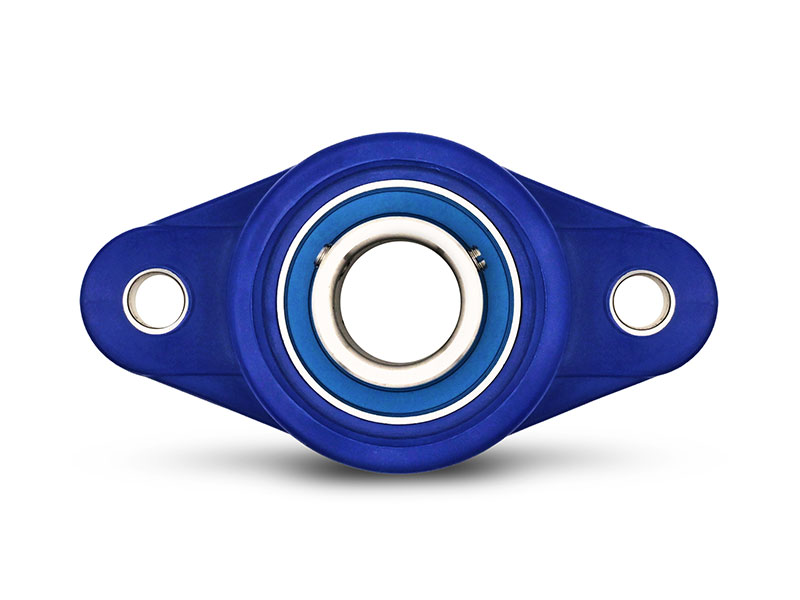

MOVET® Blue Hygienic 2-hole flange bearing NFL 205, housing blue, MB stainless steel, Ø 25 mm
Introducing the MOVET® Blue Hygienic 2-hole flange bearing NFL 205: engineered for maximum hygiene with a durable PBT thermoplastic housing, stainless steel insert, and precise dimensions for easy integration.
| Quantity | Price |
|---|---|
| From 1 |
€34.67*
|
| From 10 |
€31.68*
|
| From 25 |
€30.54*
|
| From 40 |
€28.86*
|
| From 60 |
€27.10*
|
5 on stock, Refill time: 0 days
PayPal
Product properties
| Product family: | Blue |
| Shaft Ø: | 25 |
| Housing: | 2-hole flange bearings |
| Type: | NFL |
| Housing material: | Plastic |
| Color: | Blue |
| Bore spacing: | 99 |
| Bearing insert: | MB Stainless Steel |

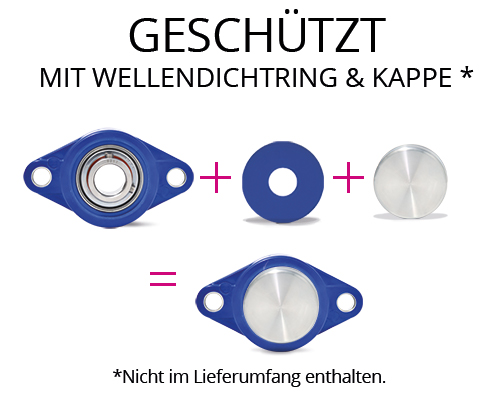

| Shaft seal possible: | Yes |
| Cap possible: | Yes |
| Hygiene: | Yes |
Technical drawing
The 2-hole housing unit consists of a sealed ball bearing made of stainless steel (material 1.4125), lubricated for life with grease filling NSF H-1 release and a housing made of thermoplastic. Food-compliant according to EC No. 1935/2004.
The housing bearings are ideally suited for all hygiene applications in industry.
The bearing insert in the housing can be swivelled to compensate for any escape errors.
Suitable operating temperature as a unit: -35C to +90C.
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
