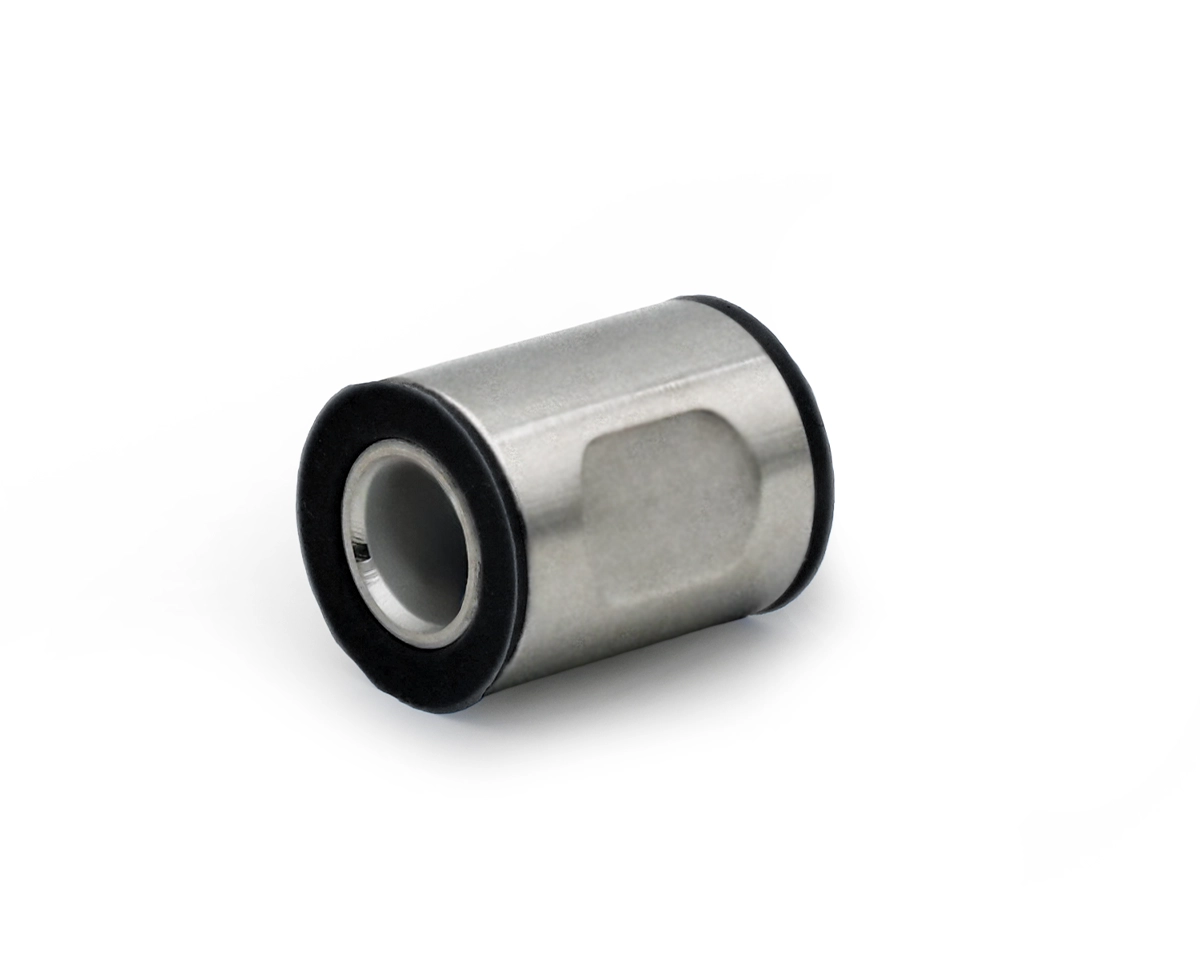

Spacer sleeve 25 mm, hole 10 mm, Hygienic Design
EAN
4061408157433
Type
458DS2025M10FP/US
Enhance your engineering designs with our 25 mm spacer sleeve, featuring a hygienic brushed stainless steel finish and a reliable black NBR seal, USDA certified for quality.
€5.27
Content:
1 pieces
Currently sold out, Refill time: 20 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Type/Shape: | round |
| Material: | Stainless steel AISI304 |
| Refinement: | brushed |
| Inside diameter / Square: | 10 |
| Outer diameter: | 20 |
| Spanner width: | 17 |
| Height: | 25 |
| Gasket: | NBR (black) |
| Drilling: | 20 |
| Certification: | USDA |

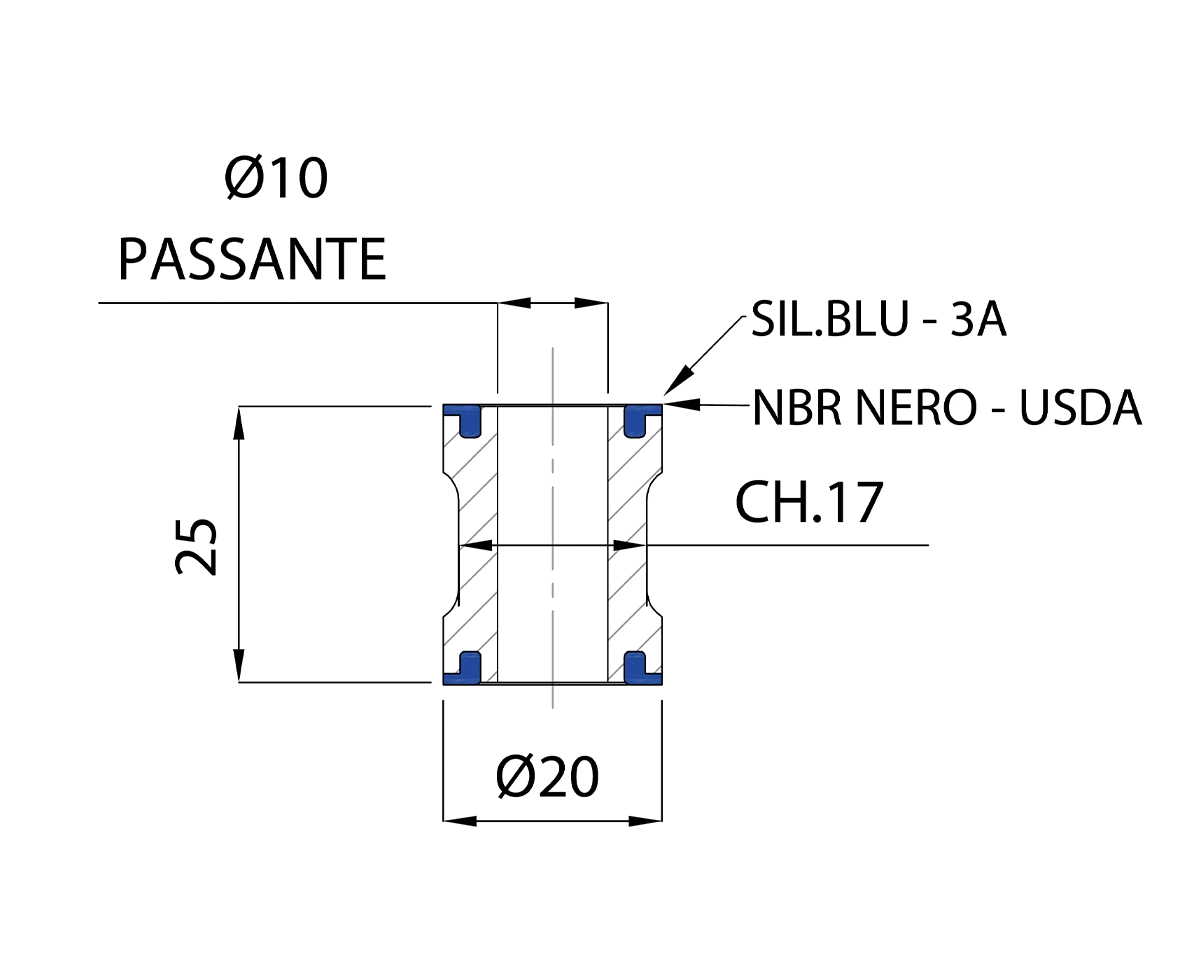

Technical drawing
Spacer sleeve 25 mm, hygienic stainless steel brushed sleeve extension with black NBR seal, distance height 25 mm, diameter 20 mm, hole diameter 10 mm, USDA
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
