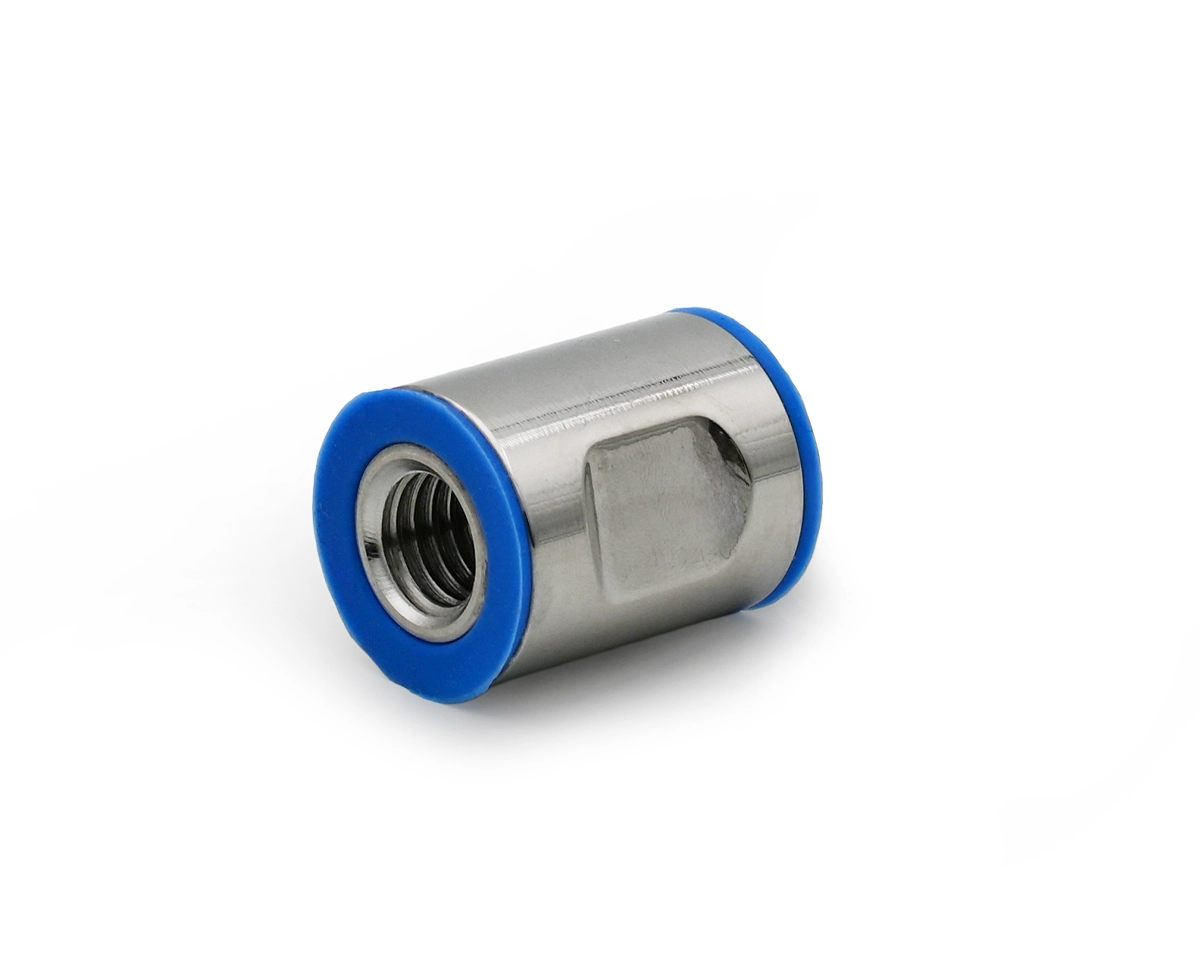

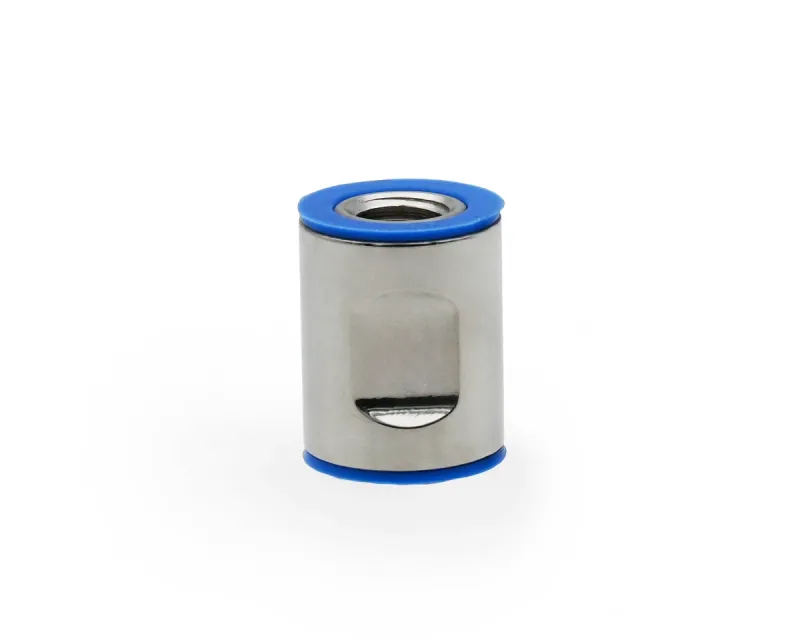

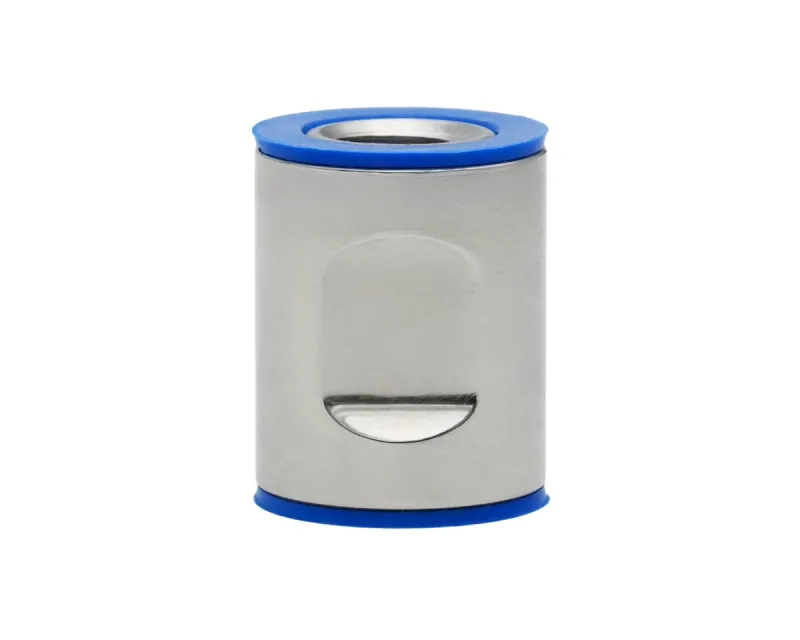

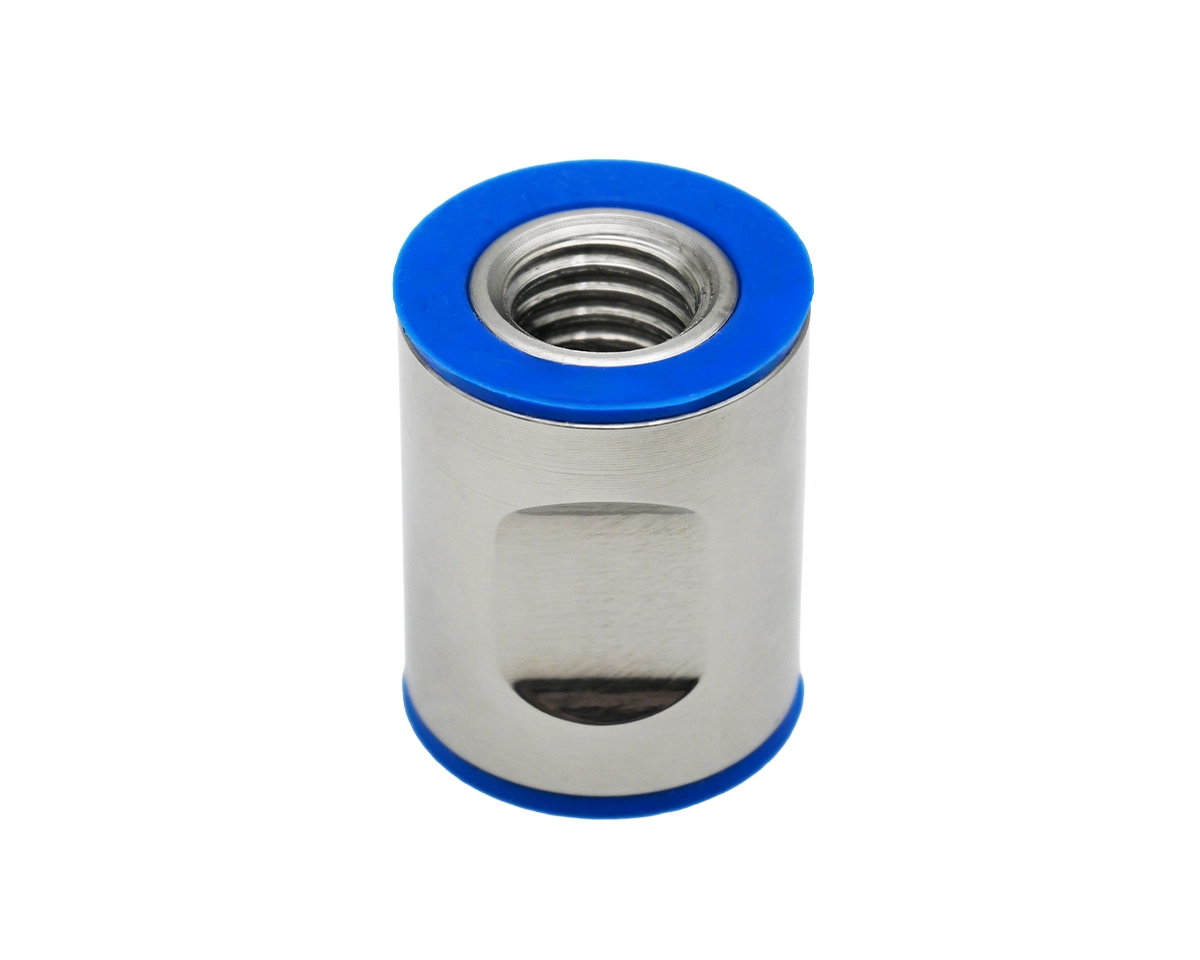

Spacer sleeve 25 mm, M10, 3A
EAN
4061408157419
Type
458DS2025M10FF/3A
Discover our 25 mm spacer sleeve, designed for hygiene applications. Made from polished stainless steel, it features a durable blue silicone seal and M10 threading, ensuring reliability and compliance with 3-A standards.
€5.27
Content:
1 pieces
Currently sold out, Refill time: 15 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Type/Shape: | round |
| Material: | Stainless steel AISI304 |
| Refinement: | high-gloss polished |
| Outer diameter: | 20 |
| Spanner width: | 17 |
| Height: | 25 |
| Gasket: | Silicone (blue) |
| Thread: | M10 |
| Application: | Hygiene |
| Certification: | 3-A Sanitary Standard |

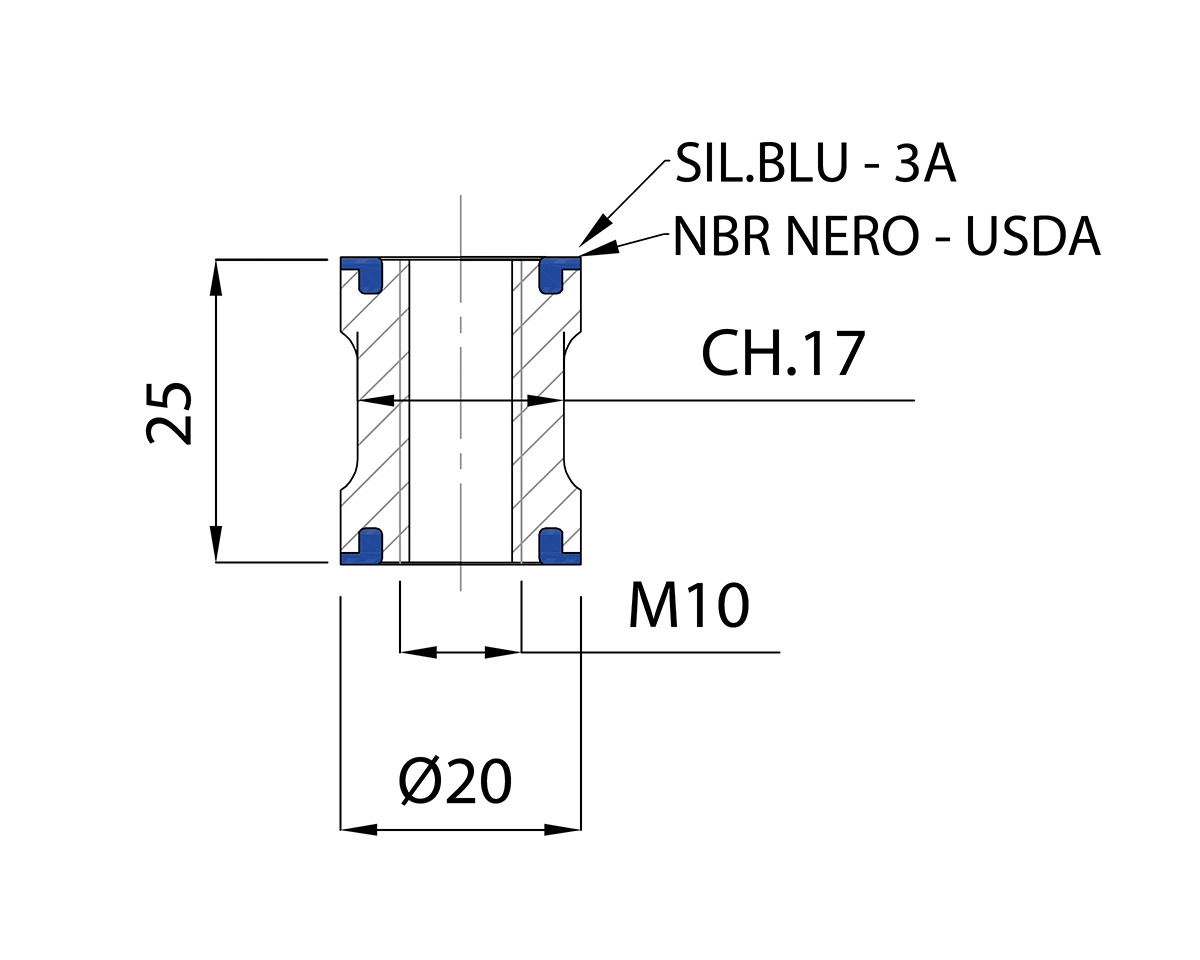

Technical drawing
Spacer sleeve 25 mm, hygienic stainless steel polished thread extension with blue silicone seal, distance height 25 mm, diameter 20 mm, thread M10, 3-A certified
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
