Hygienic Seals and Gaskets for Certified Equipment
Hygienic seals support clean and reliable connections in food-processing, pharmaceutical and other washdown-sensitive machinery. MOVET offers blue 3-A sanitary seals made from EPDM and silicone, including sealing washers as well as internal and external replacement seals in different dimensions for hygienically designed machine components.
Hygiene washer and sealing washer EPDM blue, D15/ 6, height 2 mm, PU = 10 pcs.
Content: 10 pieces (€1.78 / 1 pieces)
Hygiene washer and sealing washer EPDM blue, D20/ 8, height 2 mm, PU = 10 pcs.
Content: 10 pieces (€2.04 / 1 pieces)

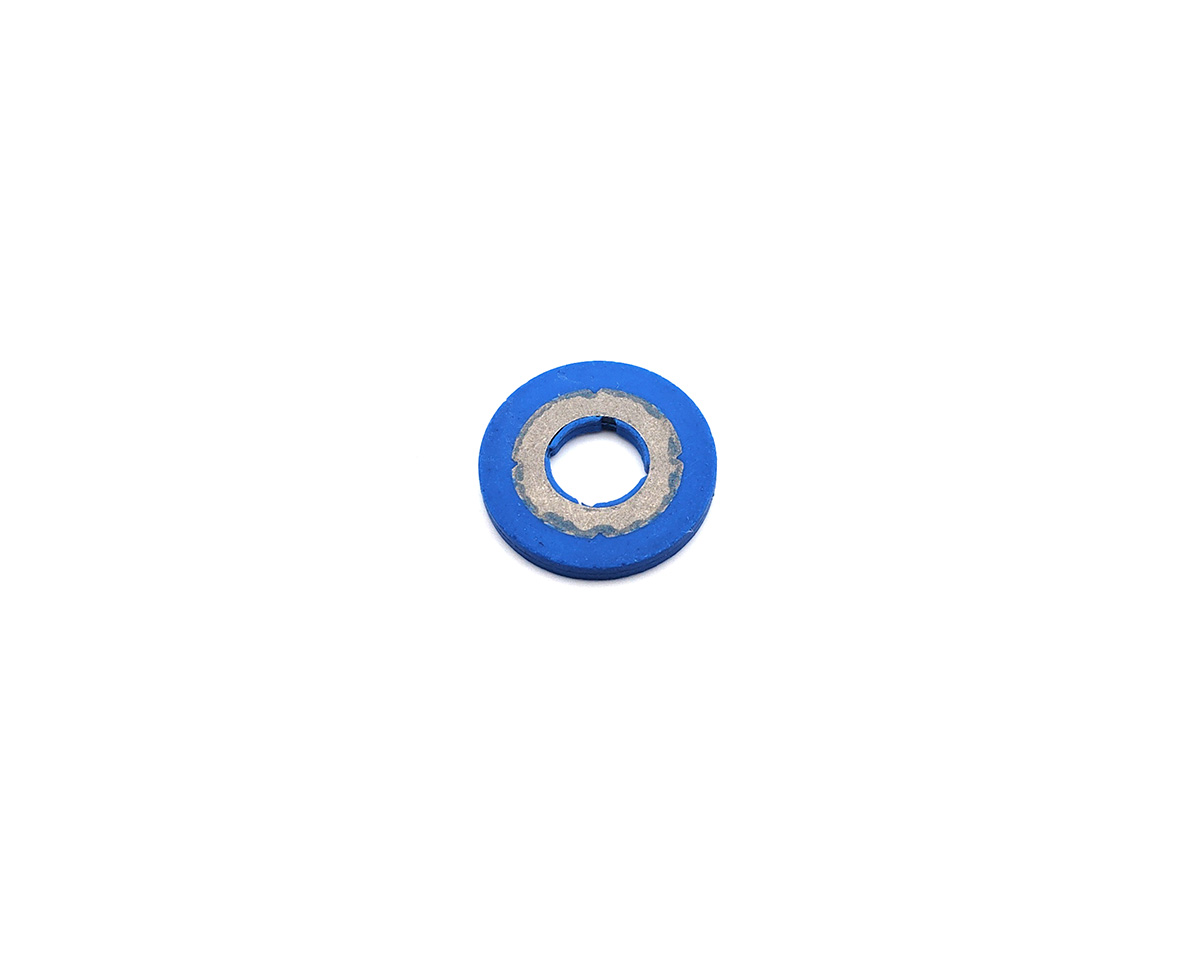

Hygiene washer and sealing washer EPDM blue, D10/ 5, height 1.5 mm, PU = 10 pcs.
Content: 10 pieces (€1.65 / 1 pieces)
Hygienic 3-A Silicone seal blue, external, D50/ 40,5, pack = 20 pcs.
Hygienic 3-A Silicone seal blue, external, D18,5/ 10,5, pack = 20 pcs.
Hygienic 3-A Silicone seal blue, external, D14,5/ 7,5, pack = 20 pcs.
Hygienic 3-A Silicone seal blue, external, D42/ 33,5, pack = 20 pcs.
Hygiene washer and sealing washer EPDM blue, D10/ 4, height 1.5 mm, PU = 10 pcs.
Content: 10 pieces (€1.49 / 1 pieces)
Hygienic Seals and Gaskets for Food-Processing Machinery
Hygienic seals and gaskets close transitions, fastening points and moving component areas on machinery that is regularly cleaned or used in hygiene-sensitive production environments. Typical applications include food-processing equipment, beverage production, pharmaceutical machinery, packaging systems and hygienic conveyor technology.
The MOVET range includes blue 3-A sanitary seals made from EPDM and silicone. Depending on the installation, metal-reinforced sealing washers as well as internal and external silicone seals are available in different dimensions.
Which Hygienic Seal Is Suitable for the Application?
The correct design depends on the component to be sealed, its dimensions and the required elastomer material. The following overview provides initial guidance:
| Seal type | Material and construction | Typical use | Important selection criterion |
|---|---|---|---|
| Sealing washer | Blue EPDM, with AISI 316 metal reinforcement depending on the version | Sealing beneath screw heads, nuts and other fastening components | Inner and outer dimensions must match the fastening point |
| Internal silicone seal | Blue silicone in different sizes | Internal sealing positions on moving hygienic components | Check the internal designation and all technical dimensions |
| External silicone seal | Blue silicone for external sealing positions | External transitions on moving hygienic components | The seal must correspond to the intended mounting position |
3-A Sanitary Seals for Hygienic Machine Design
The hygienic gaskets in this category are specified according to the 3-A Sanitary Standard. They are intended for machine components where cleanable surfaces and transitions with as few difficult-to-access gaps as possible are required.
A 3-A hygienic seal can support the cleanable design of a connection. The complete assembly must nevertheless be considered, including the screw, machine foot, mating surface, installation space and mounting condition. Certification of an individual seal does not automatically certify the complete machine.
EPDM Sealing Washers with Stainless Steel Reinforcement
The blue EPDM sealing washers combine an elastic sealing surface with a stabilising metal insert. In the corresponding MOVET designs, the reinforcement is manufactured from AISI 316 stainless steel and vulcanised into the EPDM.
The reinforcement helps the washer retain its shape and supports accurate positioning beneath the fastening component. At the same time, the elastic EPDM area seals the transition between the fastener and the component surface.
Suitability must be assessed according to the cleaning chemicals, concentration, temperature and exposure time present in the application. Identical dimensions alone do not confirm that a sealing washer is suitable for the operating medium.

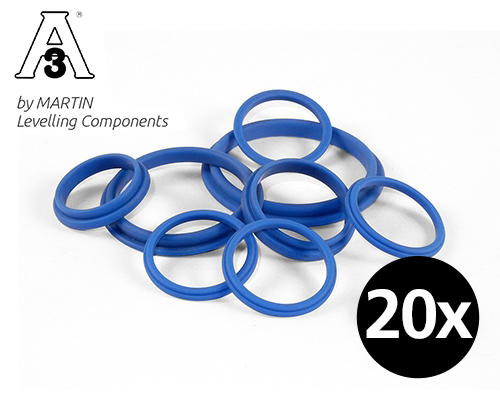

Internal and External Blue Silicone Seals
The blue silicone seals are available as internal and external versions. These descriptions refer to their intended installation positions inside or outside the sealed component area. The two designs are therefore not automatically interchangeable, even where individual dimensions appear similar.
The silicone versions are used, among other applications, as replacement seals for moving areas on 3-A hygienic machine feet. When replacing a seal, compare the type number, inner dimension, outer diameter, height and internal or external designation with the existing component.
Compatible certified supports are available under hygienic levelling feet .
Select Hygienic Gaskets by Dimension
Reliable installation requires the seal dimensions to match the existing component precisely. The category currently covers the following size ranges:
| Selection feature | Available range | Selection guidance |
|---|---|---|
| Material | EPDM or silicone | Select according to the medium, temperature and installation position |
| Colour | Blue | Provides clear visual contrast in many processing environments |
| Inner dimension or square dimension | 4 to 40.5 mm | Must match the screw, spindle or component being sealed |
| Outer diameter | 10 to 50 mm | The sealing area must sit correctly on the mating surface |
| Height | 1.5 to 6 mm | Influences the installation space and compression of the seal |
| Certification | 3-A Sanitary Standard | Check the product-specific certificate and documentation |
A hygienic seal should not be selected solely by its outer diameter. Even small differences in the inner dimension or height can prevent correct positioning or cause uneven compression during installation.
Inspecting and Replacing Hygienic Seals
Hygienic seals are wear components and should be inspected regularly for cracks, deformation, swelling, hardening and permanent compression marks. A damaged surface or incorrectly seated seal can reduce both sealing performance and cleanability.
Before installing a replacement, clean the contact surfaces and check them for damage and old sealing residue. The new gasket should be positioned evenly and must not be twisted, trapped or compressed beyond its intended installation condition.
When the cleaning agent, operating temperature or cleaning process changes, material suitability should be reassessed. EPDM and silicone have different resistance characteristics and should not be exchanged solely because their dimensions are identical.
Select and Buy 3-A Hygienic Seals
Use the product filters to narrow down the available hygienic seals by material, inner dimension, outer diameter and height. Before ordering, compare the type number and technical drawing with the existing machine component.
For sealing washers used beneath fastening components, the thread size, available contact surface and fastener design must also be considered. Matching hygienic screws and hygienic nuts support a coordinated fastening solution.
Where different geometries, dimensions or materials are required, MOVET also develops custom seals and gasket solutions for application-specific sealing requirements.
