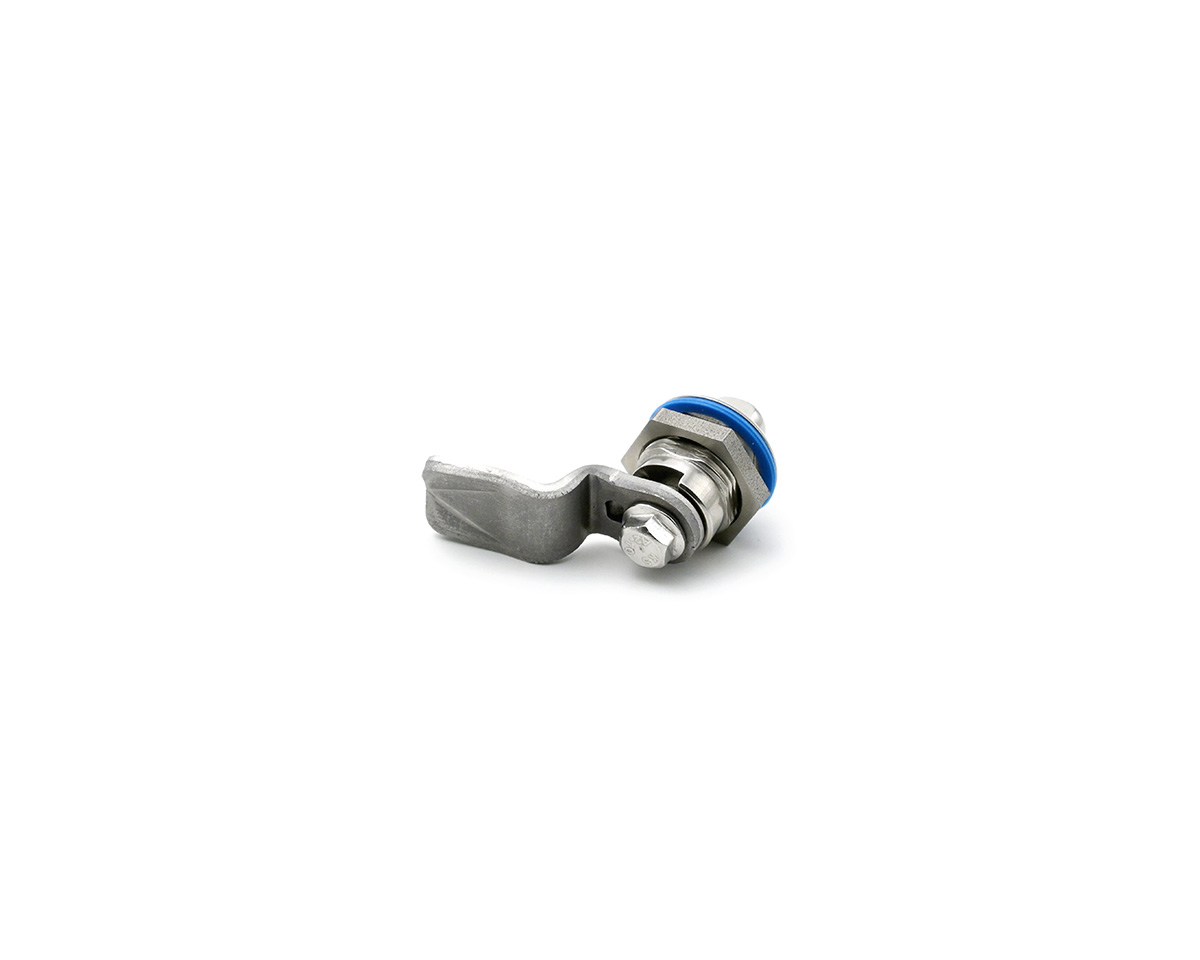

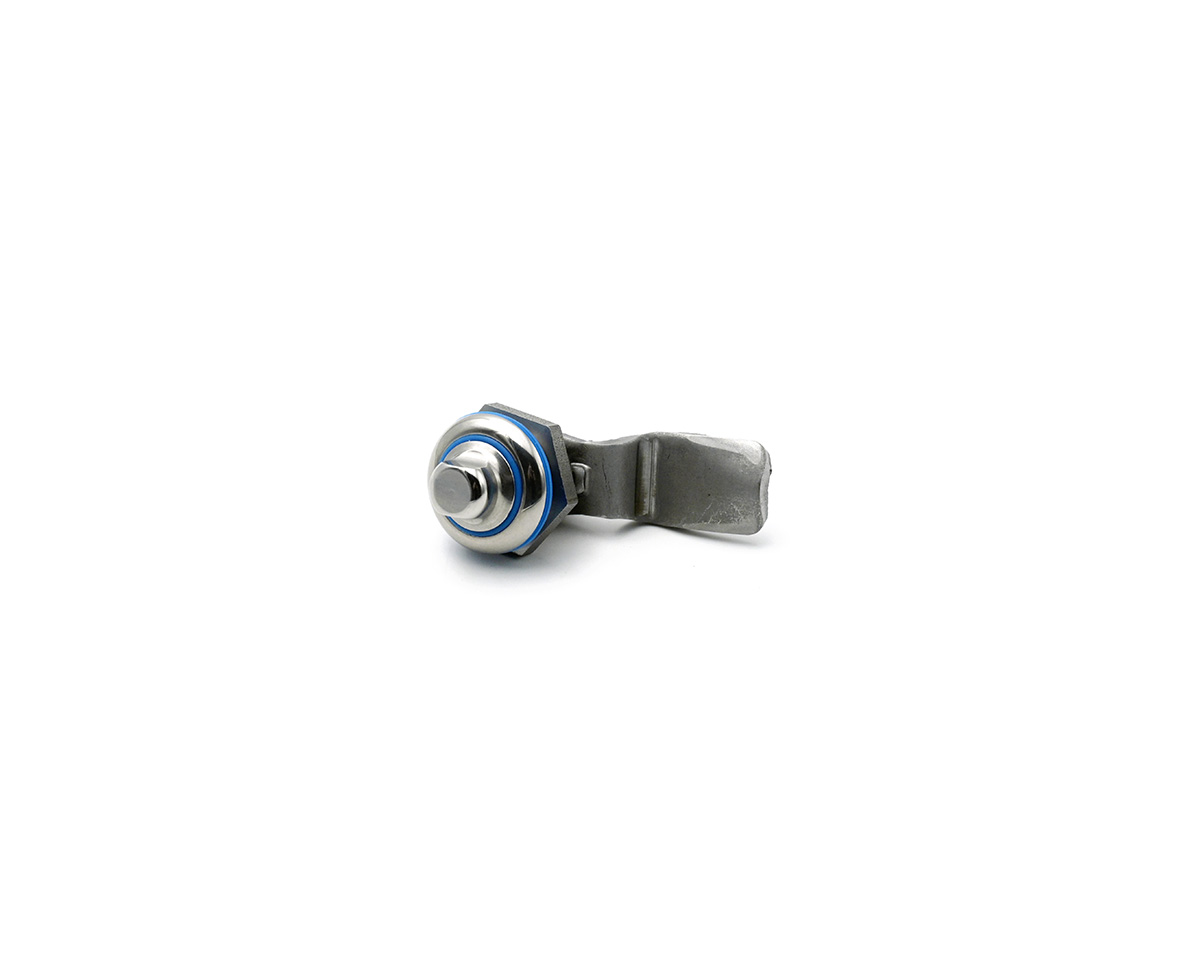

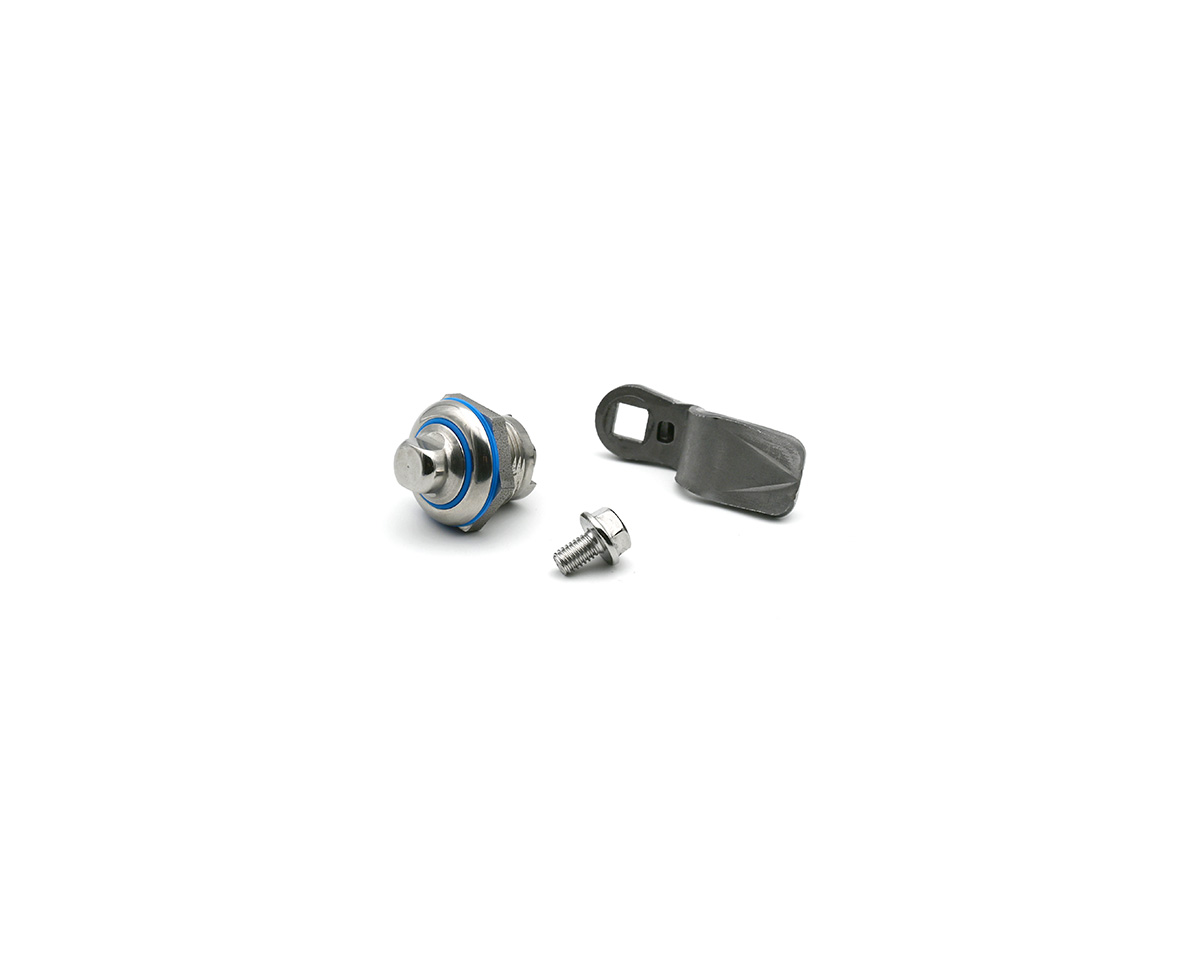

HYGIENIC 3A Quarter Turn latch type E, SS, Ø 28 mm, H = 26 mm

EAN 4061408142125

Type 45870174HYG/E/3A

Discover the HYGIENIC 3A Quarter Turn Latch Type E, designed for optimal sanitary performance. Made of stainless steel with a 28 mm diameter and 26 mm height, it features a blue silicone seal and is IP69K rated, ensuring durability and hygiene in demanding environments.

Hygienic 3A certification ensures compliance with strict hygiene standards for food and pharmaceutical applications
Durable stainless steel construction provides excellent corrosion resistance and longevity
IP69K rating guarantees protection against high-pressure and steam cleaning, ideal for harsh environments
Blue silicone seal offers superior sealing capabilities, enhancing hygiene and preventing contamination
Quarter turn operation allows for quick and easy access, improving efficiency in operational workflows

Quantity	Price
From 1	€34.17*
From 5	€30.84*
From 15	€27.51*
From 50	€25.84*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€34.17* / piece

Our payment methods:

Accessories

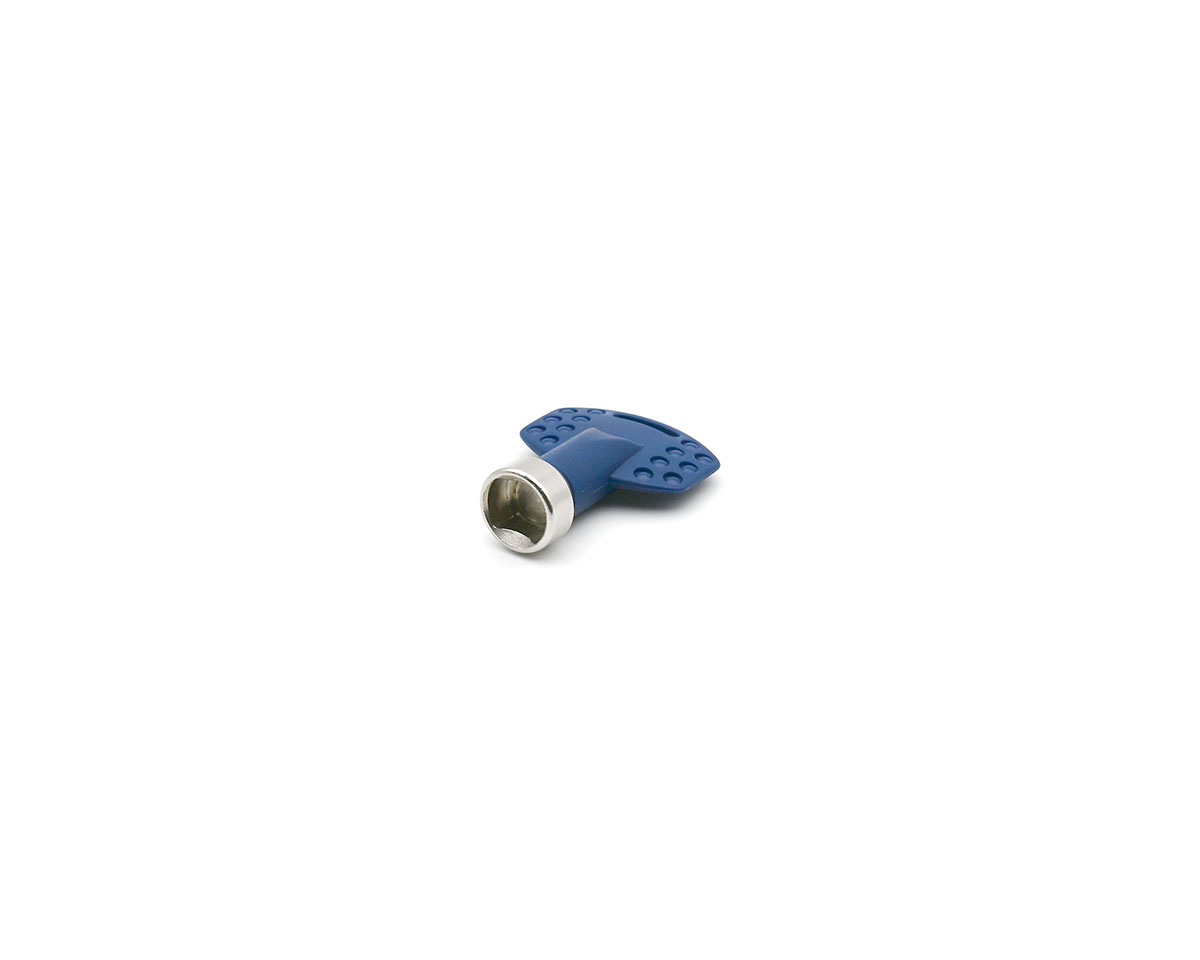

Key for latch with type E insert 3-A Hygienic

Type No.: 45870090/CH/E

From €2.88*

Product properties

Type/Shape:	E
Material:	Stainless steel
Diameter:	28
Closing depth:	26
Gasket:	Silicone (blue)
Application:	Hygiene
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

Turn latch type E, SW13, stainless steel, Ø 28 mm, H = 26 mm, blue silicone seal, IP69K, 3-A certified
