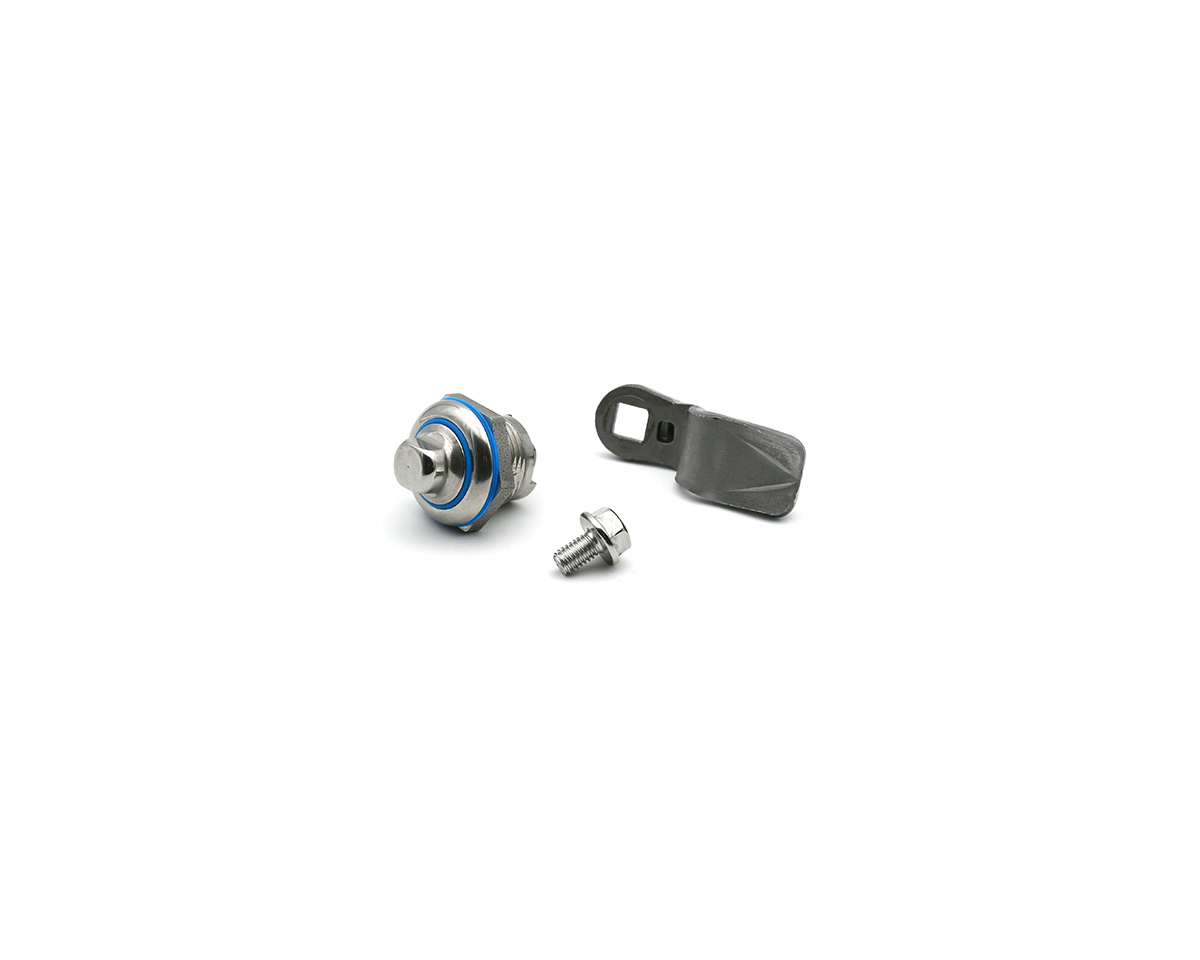

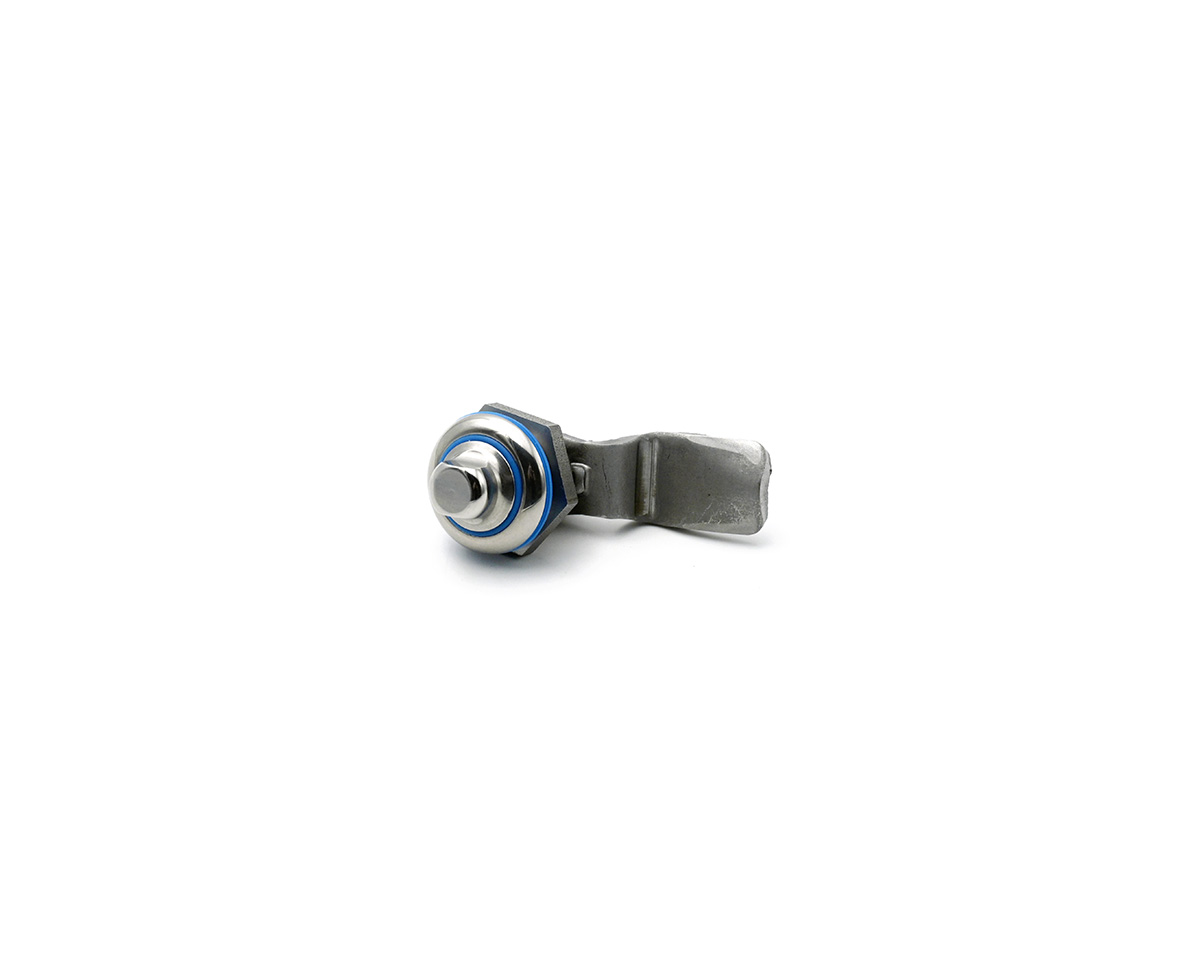

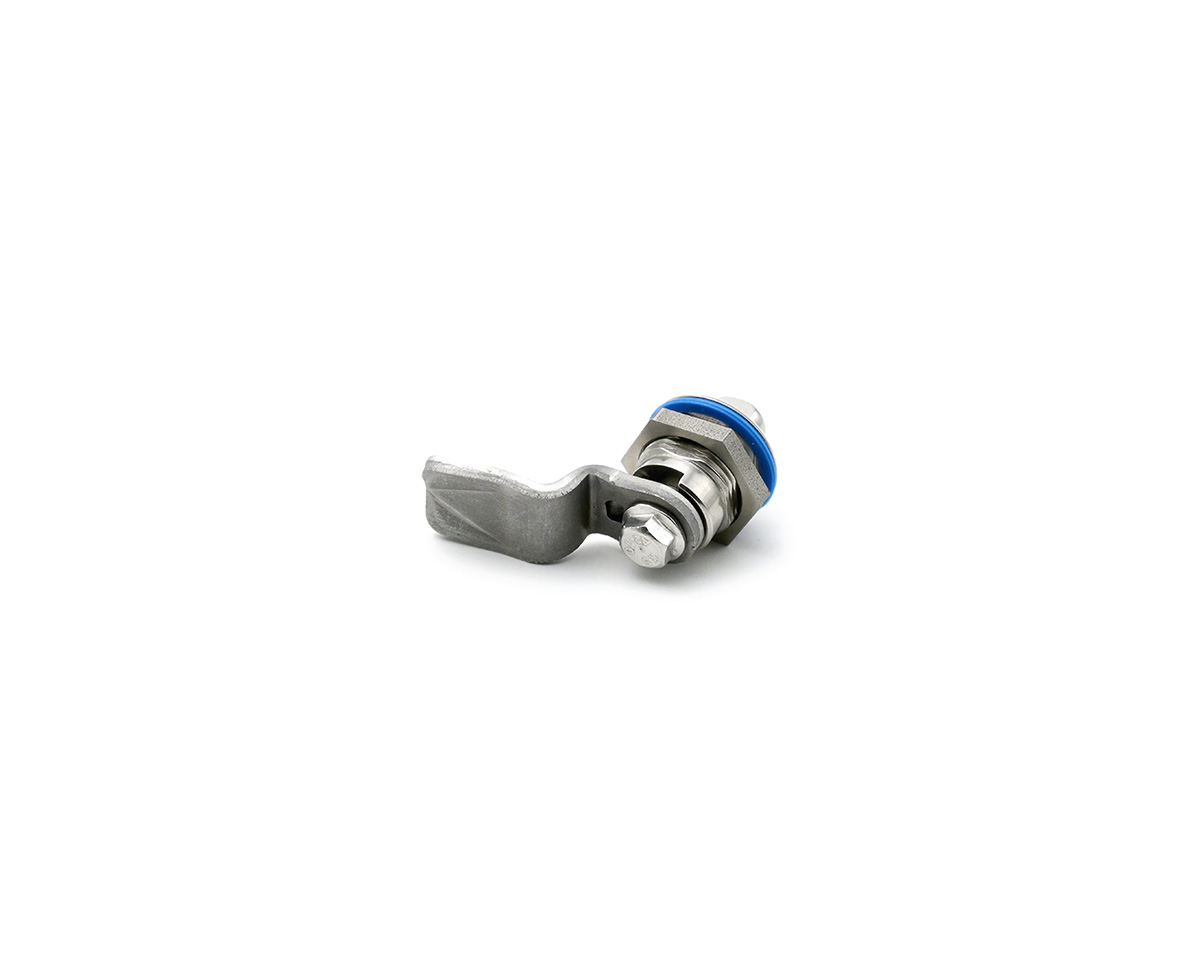

HYGIENIC 3A Quarter Turn latch type D, SS, Ø 28 mm, H = 22 mm

EAN 4061408112241

Type 45870172HYG/D/3A

Discover the HYGIENIC 3A Quarter Turn Latch Type D, designed for robust applications. Featuring a stainless steel construction, IP69K rating, and a blue silicone seal, it ensures optimal hygiene and reliability.

Constructed from high-quality stainless steel for maximum durability and corrosion resistance.
Compact dimensions with a diameter of 28 mm and a height of 22 mm, ideal for space-constrained applications.
IP69K rated, ensuring protection against high-pressure steam and water ingress for hygienic environments.
Features a blue silicone seal that guarantees optimal sealing and enhanced hygiene compliance.
3-A certified, meeting stringent hygienic standards for food processing and sanitary applications.

Quantity	Price
From 1	€34.17*
From 5	€30.84*
From 15	€27.51*
From 50	€25.84*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€34.17* / piece

Our payment methods:

Accessories

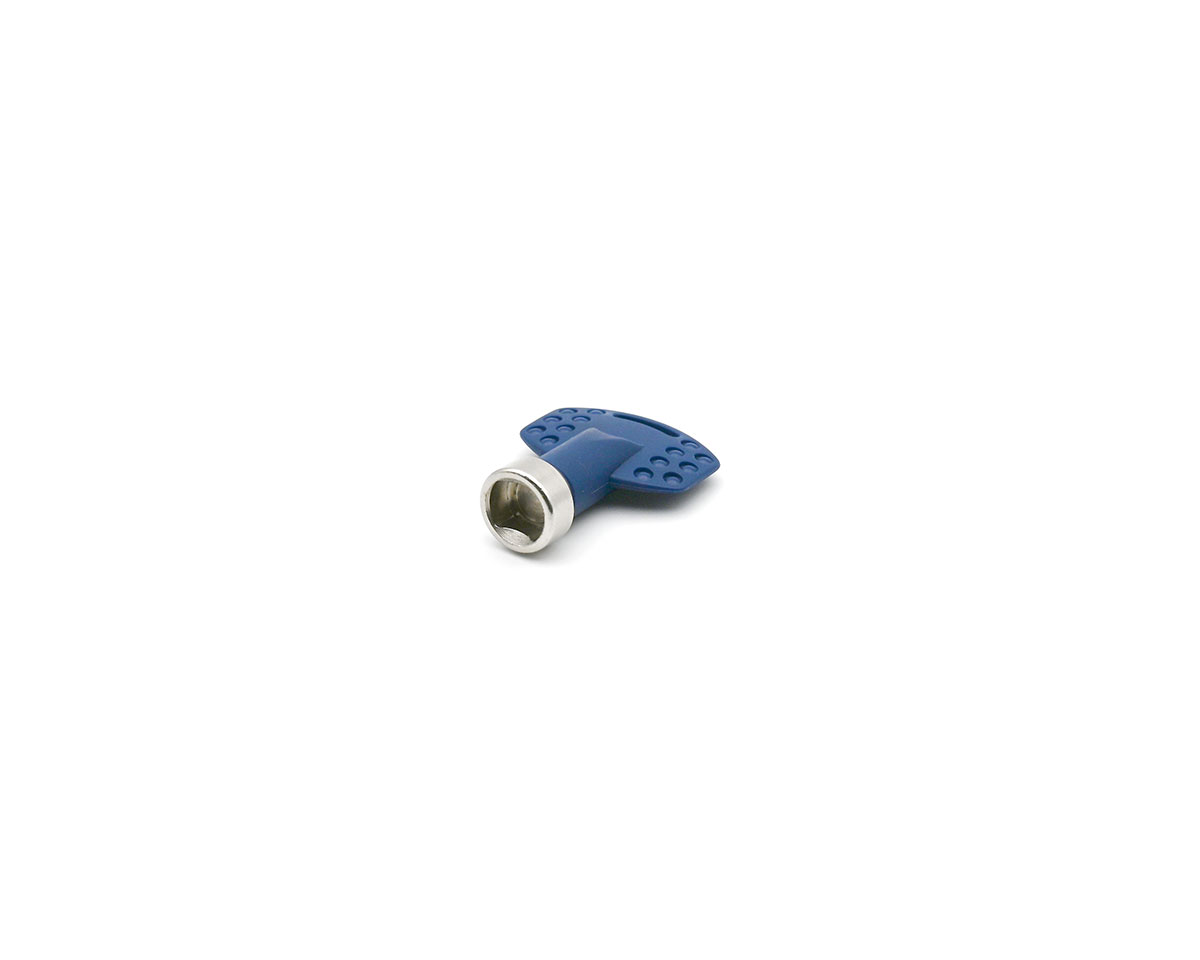

Key for latch with type D insert, Hygienic

Type No.: 45870090/CH/D

From €2.88*

Product properties

Type/Shape:	D
Material:	Stainless steel
Diameter:	28
Closing depth:	22
Gasket:	Silicone (blue)
Application:	Hygiene
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

Turn latch type D, stainless steel, Ø 28 mm, H = 22 mm, IP69K, blue silicone seal, 3-A certified

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
