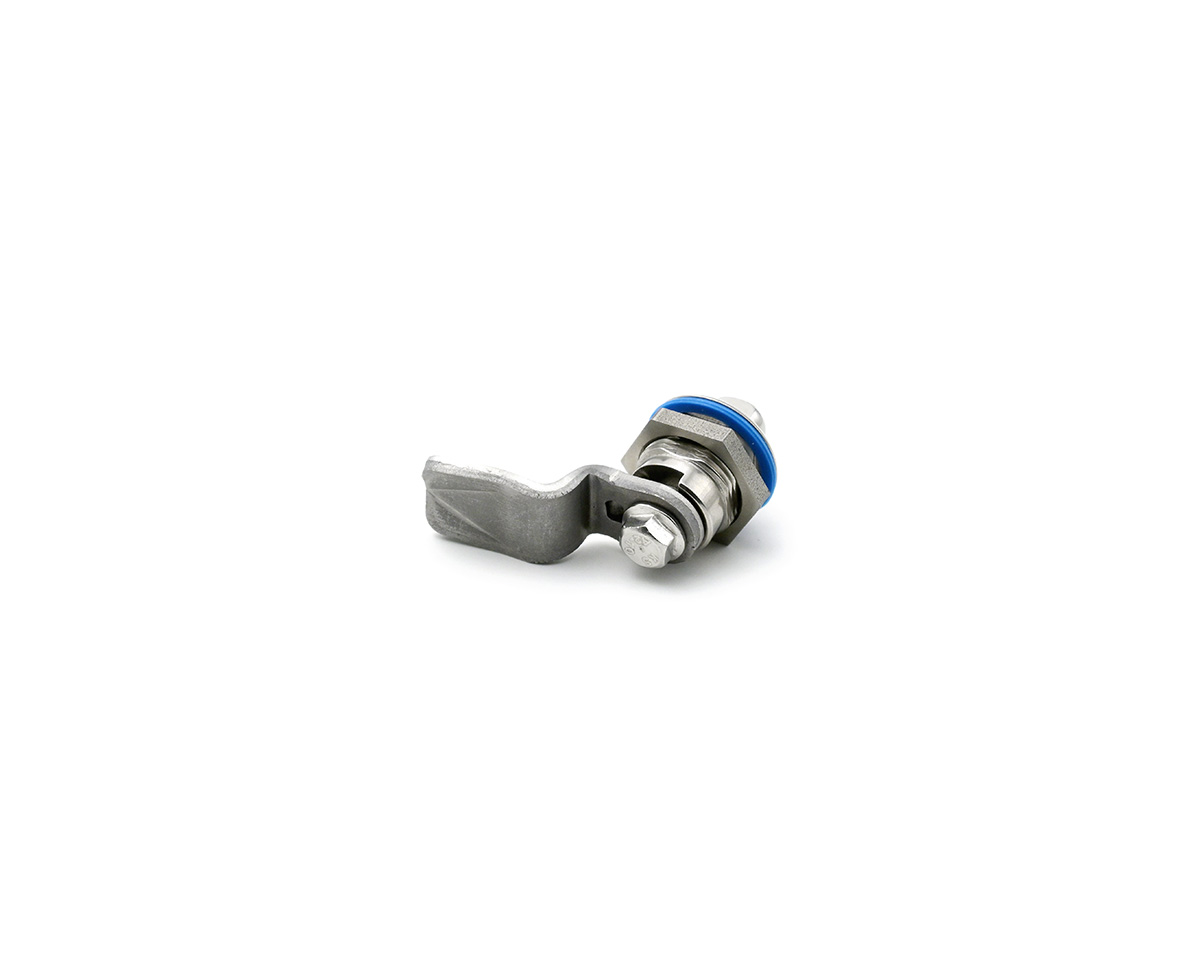

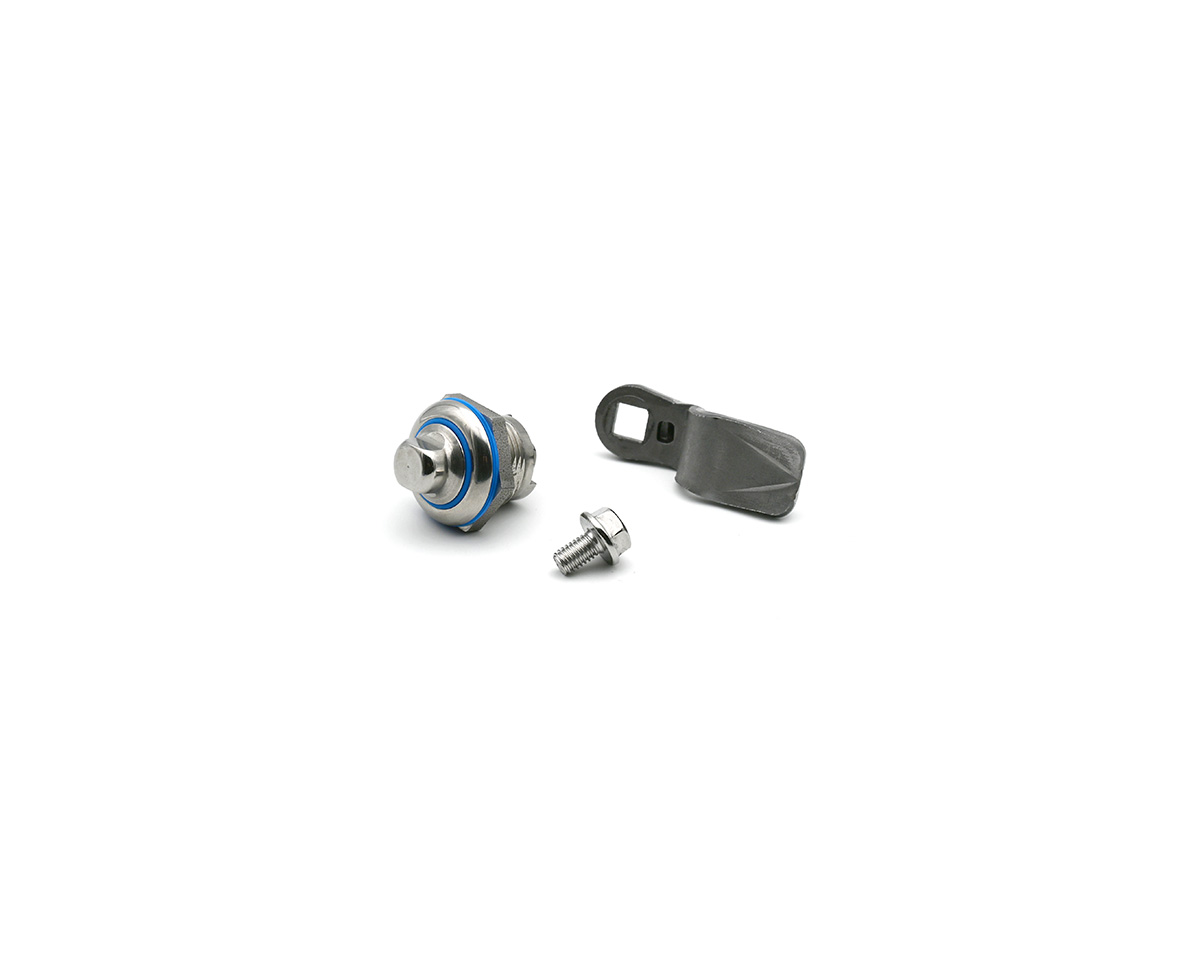

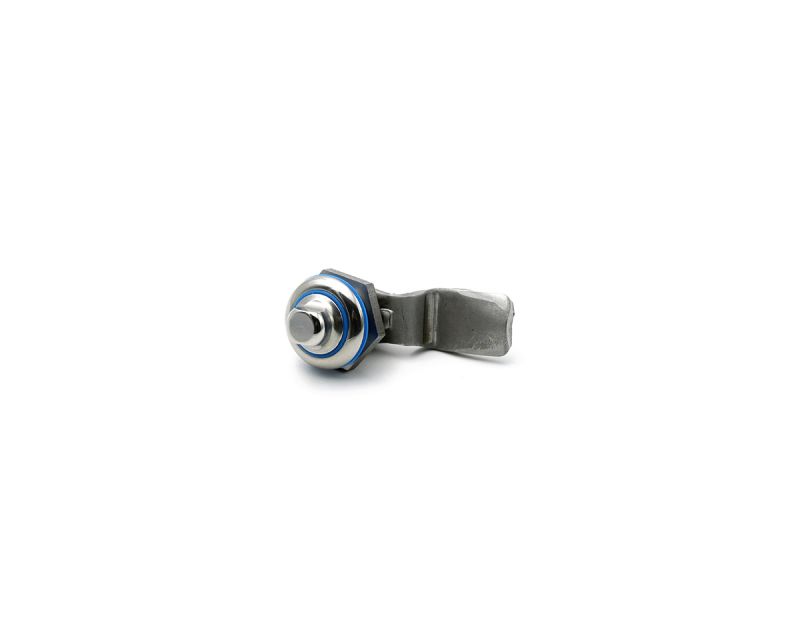

HYGIENIC 3A Quarter Turn latch type E, SS, Ø 28 mm, H = 24 mm

EAN 4061408142118

Type 45870173HYG/E/3A

Introducing the HYGIENIC 3A Quarter Turn Latch Type E: a robust stainless steel solution featuring a 28 mm diameter and 24 mm height. With IP69K rating and blue silicone seal, it ensures optimal hygiene and durability for your applications.

Hygienic design certified according to 3-A standards, ensuring compliance with stringent food safety requirements.
Robust stainless steel construction for enhanced durability and corrosion resistance in demanding environments.
IP69K rating provides superior protection against dust and high-pressure water ingress, ideal for cleaning in hygienic applications.
Quarter turn mechanism for quick and easy operation, facilitating efficient access in machinery and equipment.
Equipped with a blue silicone seal that enhances hygienic integrity while allowing for visual inspection of sealing performance.

Quantity	Price
From 1	€34.17*
From 5	€30.84*
From 15	€27.51*
From 50	€25.84*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€34.17* / piece

Our payment methods:

Accessories

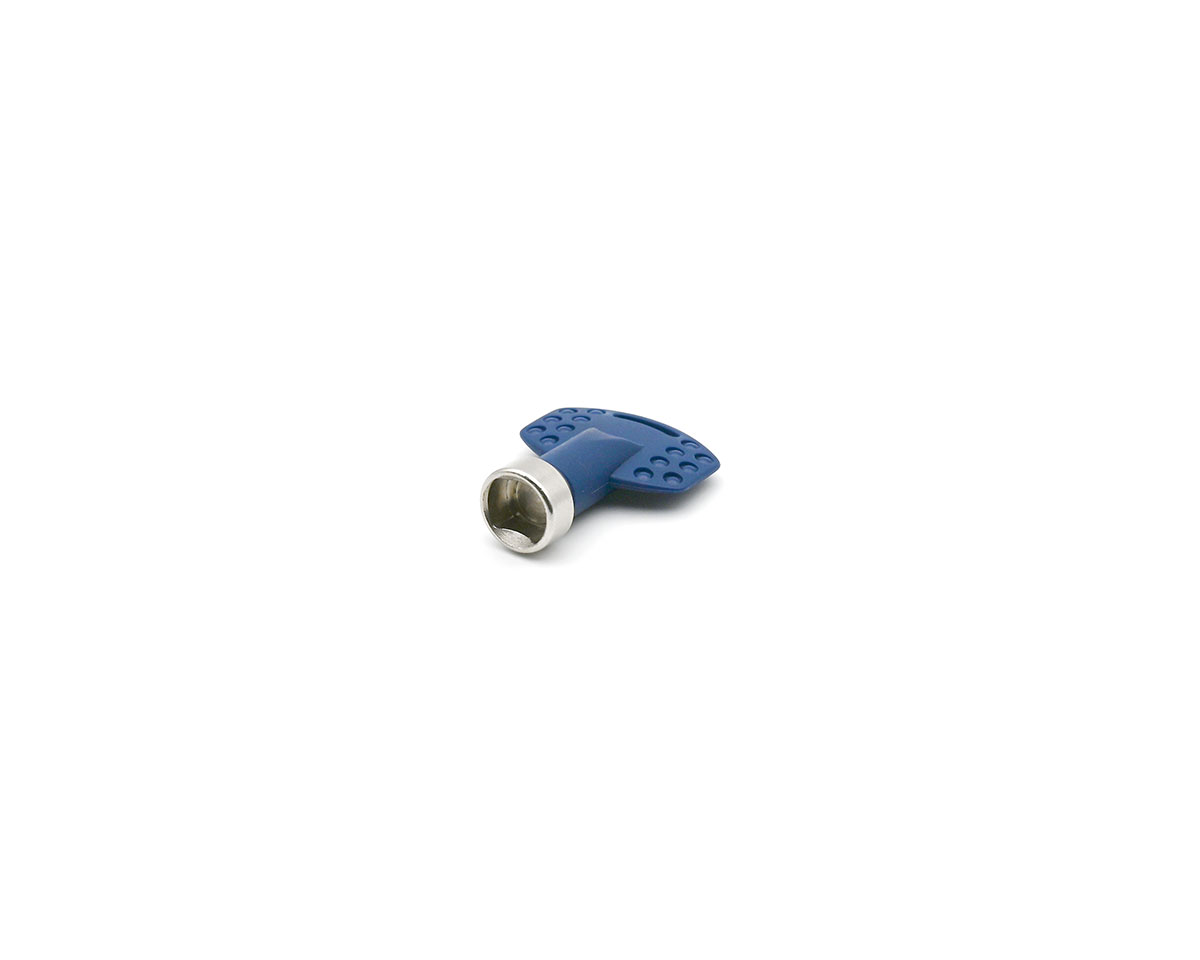

Key for latch with type E insert 3-A Hygienic

Type No.: 45870090/CH/E

From €2.88*

Product properties

Type/Shape:	E
Material:	Stainless steel
Diameter:	28
Closing depth:	24
Gasket:	Silicone (blue)
Application:	Hygiene
Class:	IP69K
Certification:	3-A Sanitary Standard

Product description

Turn latch type E, SW13, stainless steel, Ø 28 mm, H = 24 mm, IP69K, blue silicone seal, 3-A certified

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
