Roller chain 35-2 ANSI, 3/8" x 3/16", G8, Duplex, DIN 8188, pack 3,05 M.
EAN
4061408076314
Type
302RS35-2
Discover the RS 35 A 3/8 x 3/16 roller chain, a durable Duplex design compliant with DIN 8188. Featuring a 9.53 mm pitch and 5.08 mm roller diameter, it ensures reliable performance for engineered applications.
| Quantity | Price | Base price |
|---|---|---|
| From 1 |
€121.68*
|
€39.90* / 1 metres |
| From 3 |
€119.73*
|
€39.26* / 1 metres |
| From 10 |
€118.75*
|
€38.93* / 1 metres |
| From 20 |
€116.81*
|
€38.30* / 1 metres |
Currently sold out, Refill time: 8 days
Our payment methods:
Invoice
Prepayment
Accessories

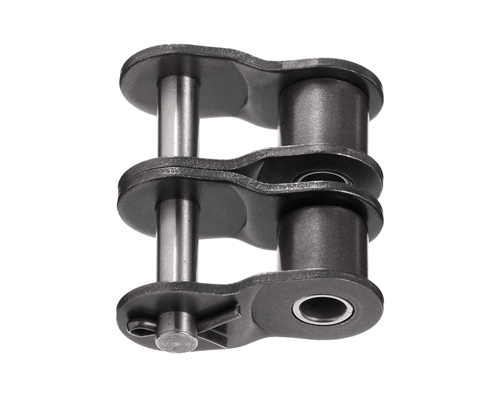

Reinforced spring clip conn.link 35-2 ANSI, 3/8" x 3/16", G8 Duplex, DIN 8188
From
€3.47*
Type No.:
312RS35-2
Product properties
| Product family: | Steel |
| Abbreviation: | RS 35 A 3/8 x 3/16 |
| Roll Ø (mm): | 5,08 |
| Type: | Duplex |
| Inner width (mm): | 4,78 |
| Pitch/Pitch (mm): | 9,53 |
| DIN standard: | DIN 8188 |
Drawing
Roller chain 35-2 ANSI, 3/8" x 3/16", G8, Duplex version, DIN 8188, pitch 9,53 mm, inner width 4,78 mm, roller-Ø 5,08 mm, TSUBAKI, package 3,05 M. incl. conn.link
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
