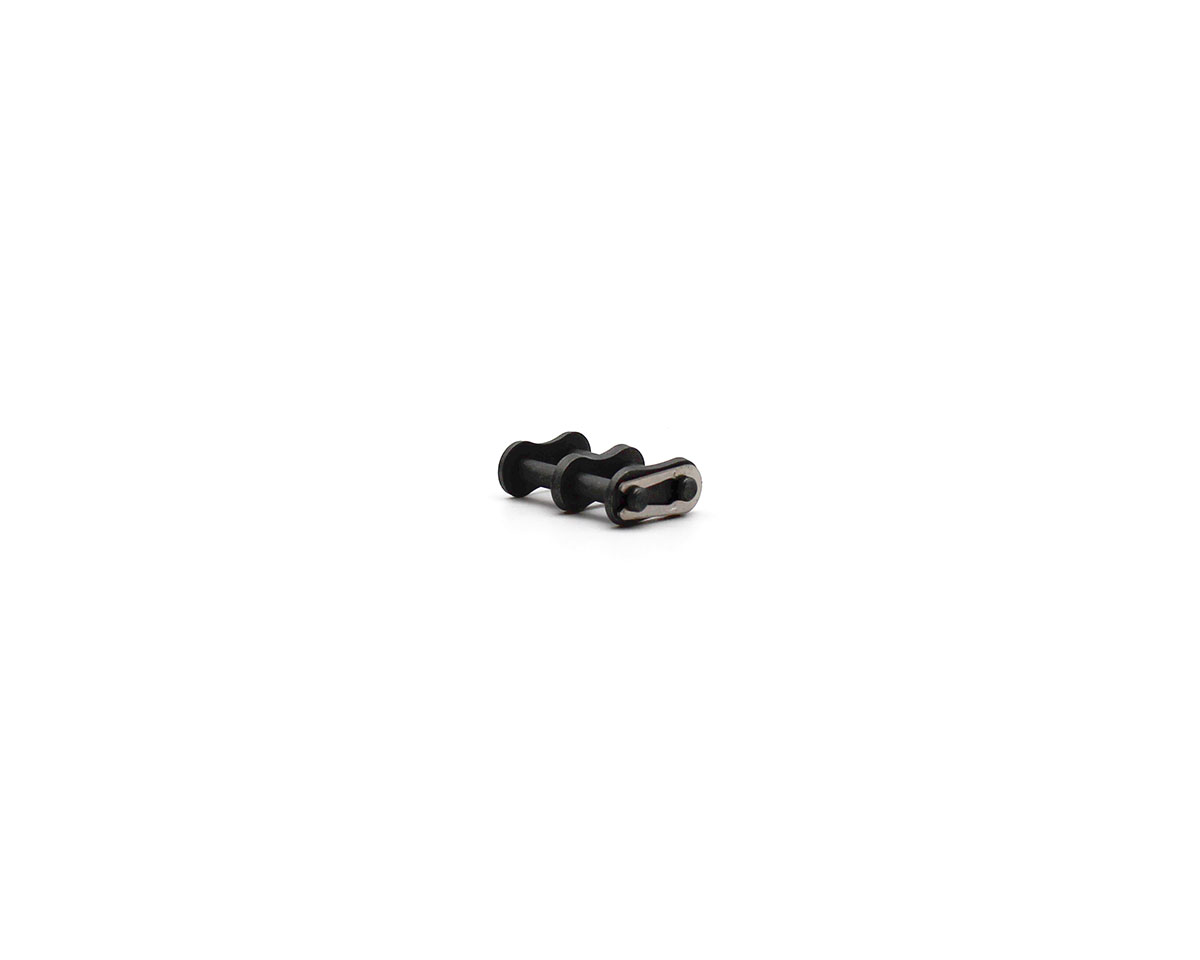

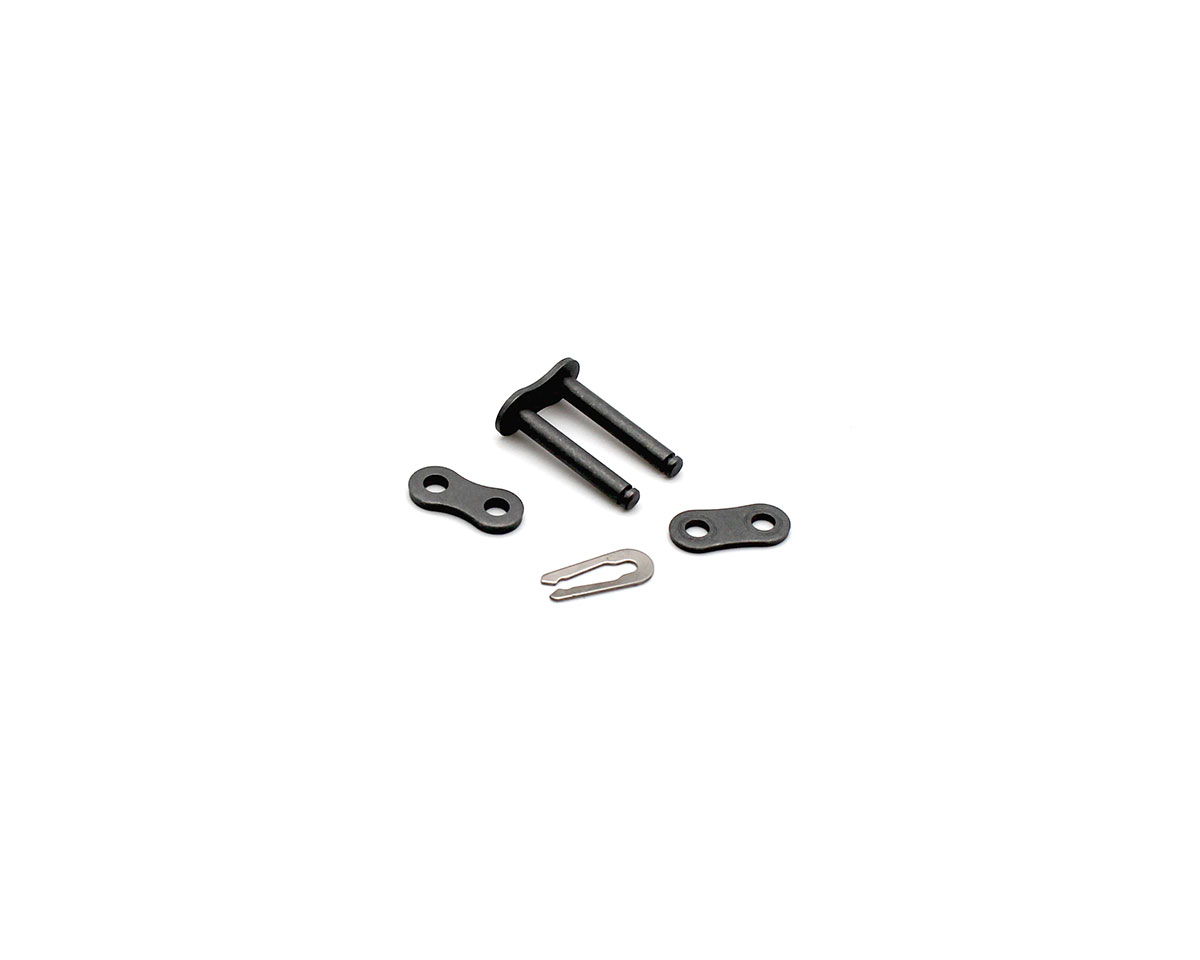

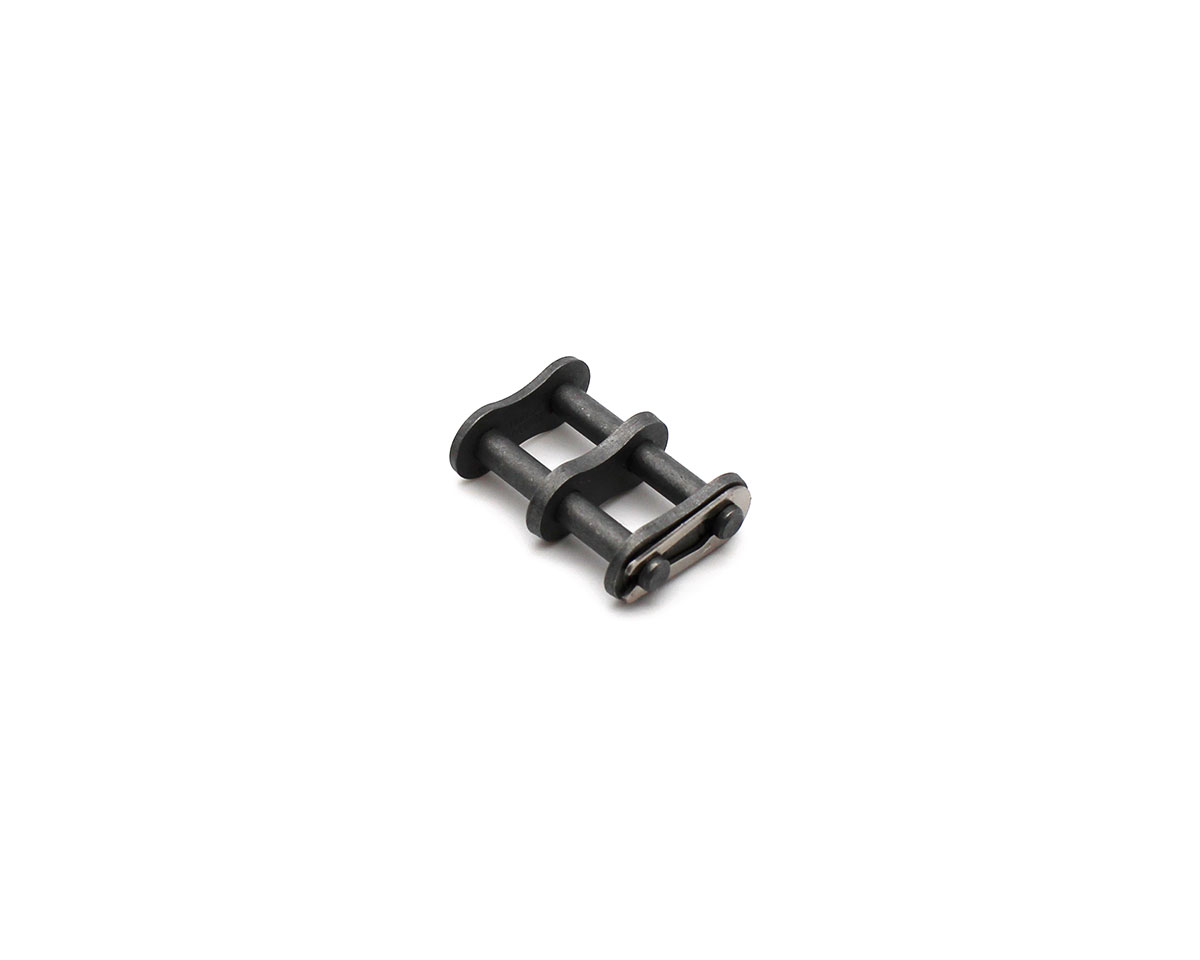

Reinforced spring clip conn.link 35-2 ANSI, 3/8" x 3/16", G8 Duplex, DIN 8188

EAN 4061408085637

Type 312RS35-2

Enhance your engineering projects with the Reinforced Spring Clip Connection Link 35-2 ANSI, featuring durable G8 Duplex design and precision specifications for optimal performance and reliability.

High-strength G8 Duplex construction ensures superior durability and resistance to wear and tear.
Precisely engineered to meet DIN 8188 standards, guaranteeing reliable performance in critical applications.
Compact dimensions of 3/8" x 3/16" with a pitch of 9.53 mm allow for efficient space utilization in mechanical assemblies.
Inner width of 4.78 mm and roller diameter of 5.08 mm enable smooth operation and reduced friction.
Manufactured by TSUBAKI, a trusted leader in mechanical power transmission products, ensuring quality and expertise.

Quantity	Price
From 1	€3.70*
From 25	€3.47*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 8 days

€3.70* / piece

Our payment methods:

Product properties

Drawing

Product description

Reinforced spring clip conn.link 35-2 ANSI, 3/8" x 3/16", G8 Duplex version, DIN 8188, pitch 9,53 mm, inner width 4,78 mm, roller-Ø 5,08 mm, TSUBAKI

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
