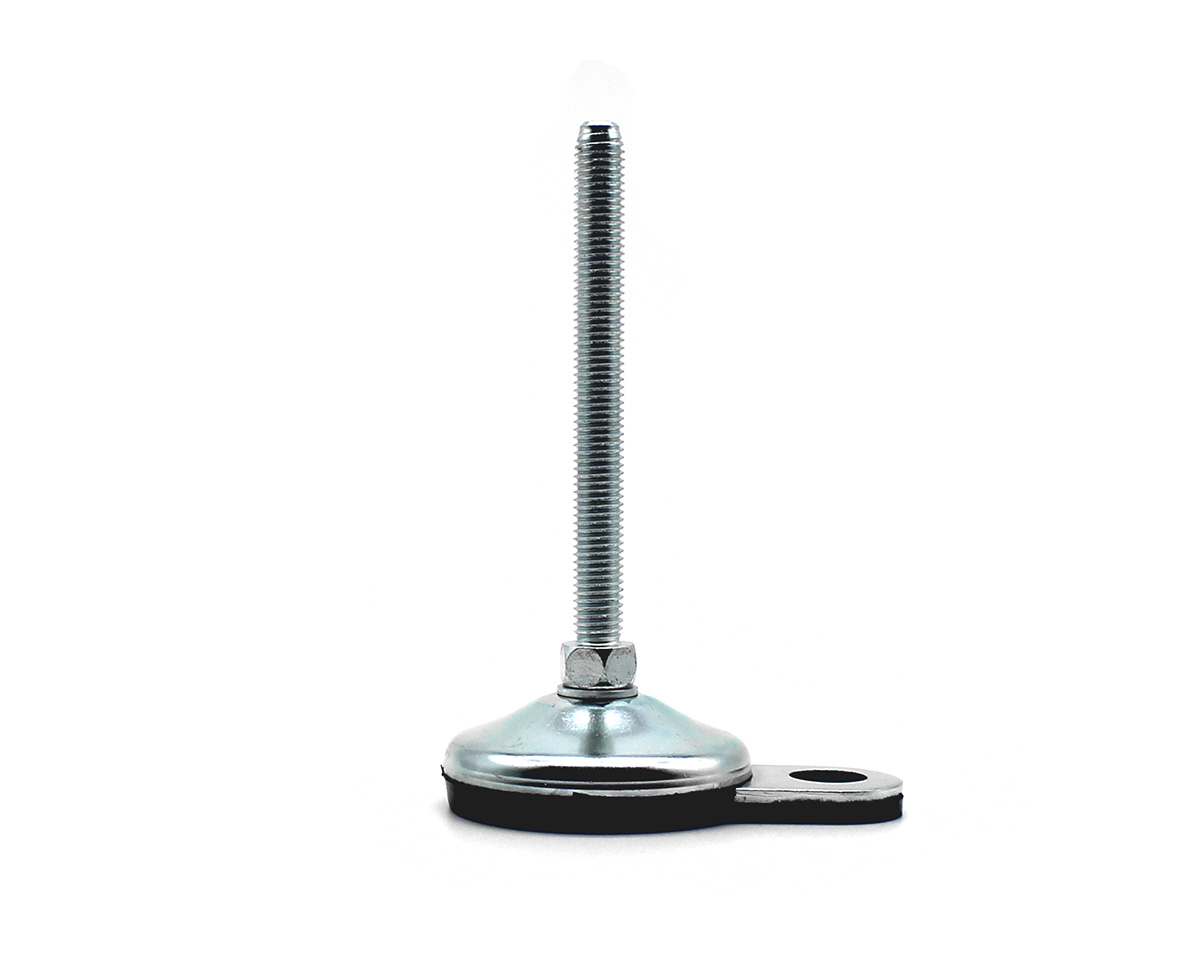

Levelling foot VULCANIZED galvanized steel, Ø 60 mm, M20 x 150 mm, Lug, NBR
Optimize your machinery stability with our Vulcanized Galvanized Steel Levelling Foot. Featuring a 60 mm diameter, M20 x 150 mm threaded spindle, and 7,000 N static load capacity, it ensures superior support and anti-slip properties.
| Quantity | Price |
|---|---|
| From 1 |
€13.28*
|
| From 5 |
€12.72*
|
| From 15 |
€12.32*
|
| From 50 |
€12.16*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 1 mounting lug |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |
| Brake: | No |
| Steerable: | no |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
