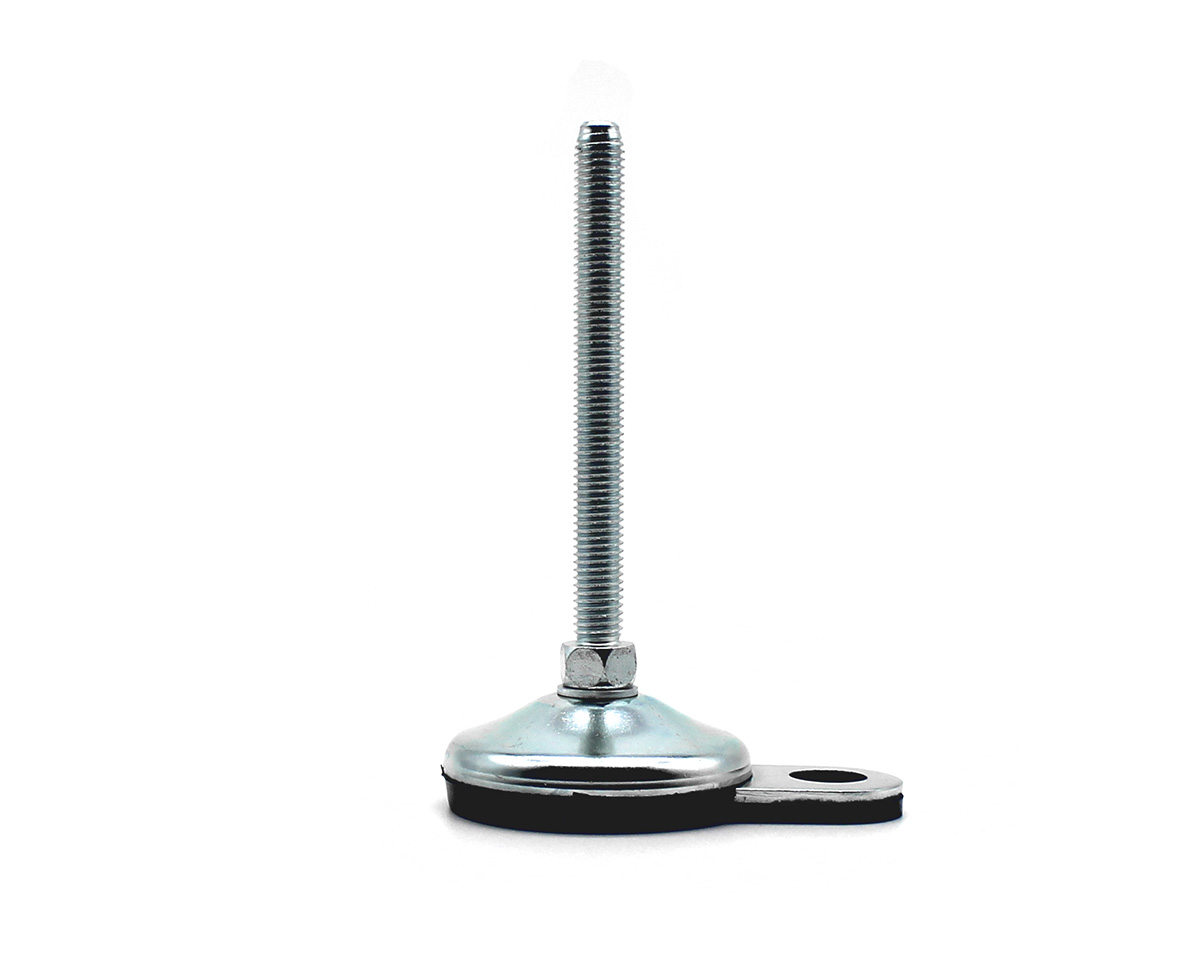

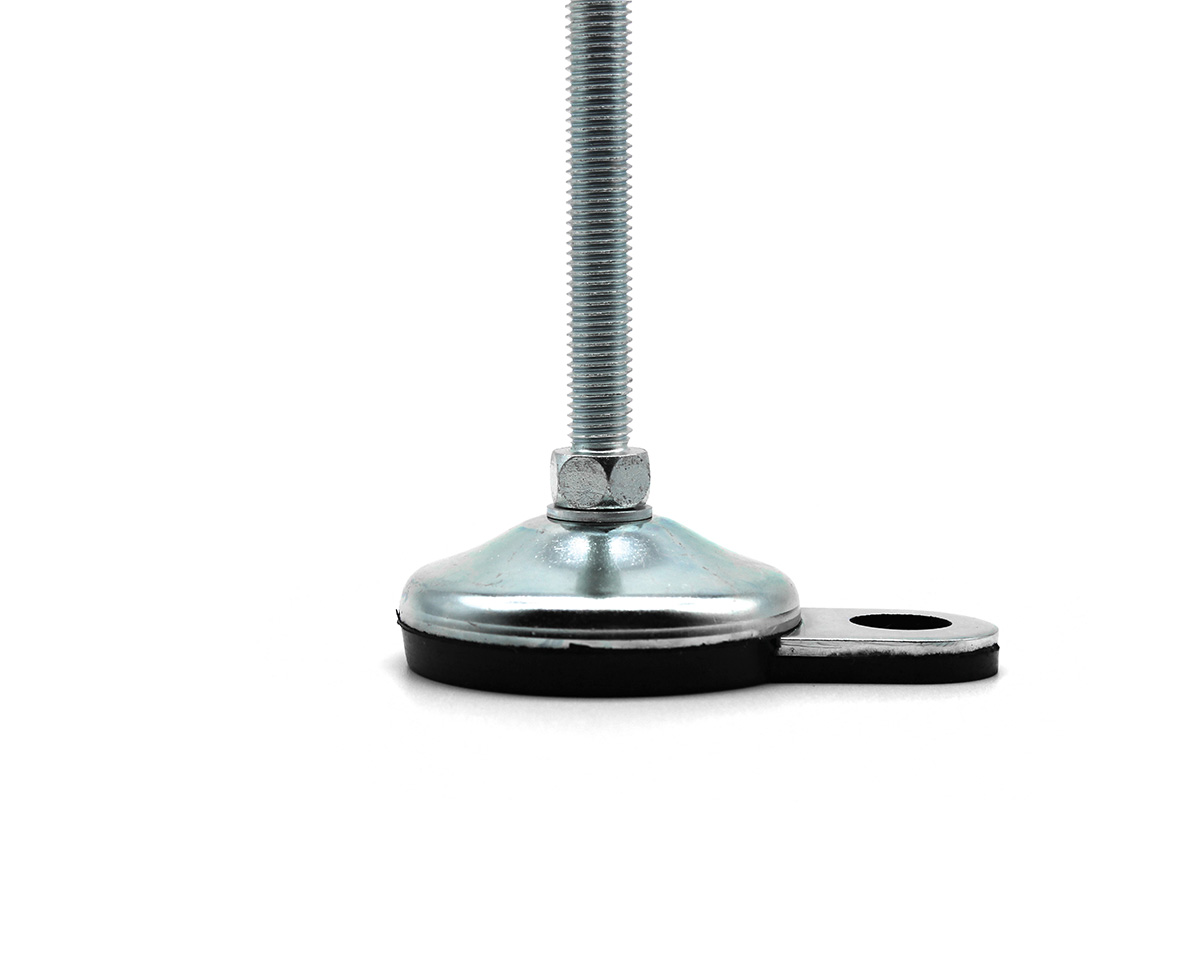

Levelling foot VULCANIZED galvanized steel, Ø 60 mm, M12 x 50 mm, Lug, NBR
Discover the VULCANIZED leveling foot, crafted from galvanized steel with a 60 mm diameter and robust M12 x 50 mm spindle. Featuring a 10° articulated screw, anti-slip NBR, and a static load capacity of 7,000 N, it ensures stability and precision for your engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.29*
|
| From 5 |
€8.90*
|
| From 15 |
€8.61*
|
| From 50 |
€8.50*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 1 mounting lug |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 50 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
