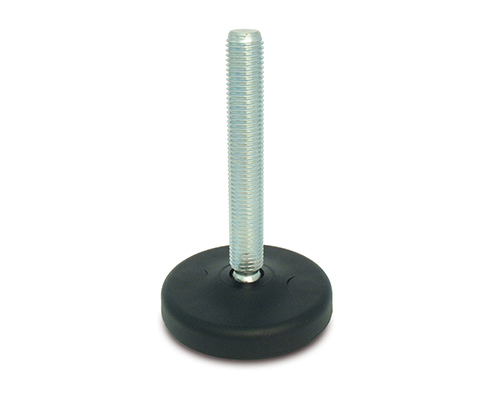

Levelling foot ECO30 PA, Ø 83 mm, M16 x 100 mm Steel, Drills, NBR
Discover the ECO30 Levelling Foot, featuring a robust 83 mm diameter polyamide base and a galvanized steel spindle. Designed for static loads of up to 16,000 N, it ensures stability with an articulated screw for precise leveling and anti-slip NBR padding.
| Quantity | Price |
|---|---|
| From 1 |
€5.26*
|
| From 5 |
€5.04*
|
| From 15 |
€4.34*
|
| From 50 |
€4.12*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
