Levelling foot PA, Ø 123 mm, M20 x 200 mm Steel, Drills, NBR

EAN 4061408014637

Type 45812875

Introducing the high-performance Levelling Foot made of durable polyamide and galvanized steel. With a 123 mm diameter and articulated screw for optimal stability, it supports static loads up to 45,000 N.

High durability with a polyamide base and galvanized steel spindle, ensuring resilience in demanding environments.
Features an articulated screw mechanism with a 4° adjustment angle for precise leveling.
Large diameter of 123 mm for increased stability and load distribution, supporting a static load of up to 45,000 N.
Equipped with two bore holes (Ø 12.5 mm) for secure anchoring to various surfaces.
Anti-slip NBR rubber surface provides enhanced grip, preventing unwanted movement in application.

Quantity	Price
From 1	€11.86*
From 5	€11.36*
From 15	€9.78*
From 50	€9.28*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€11.86* / piece

Our payment methods:

Accessories

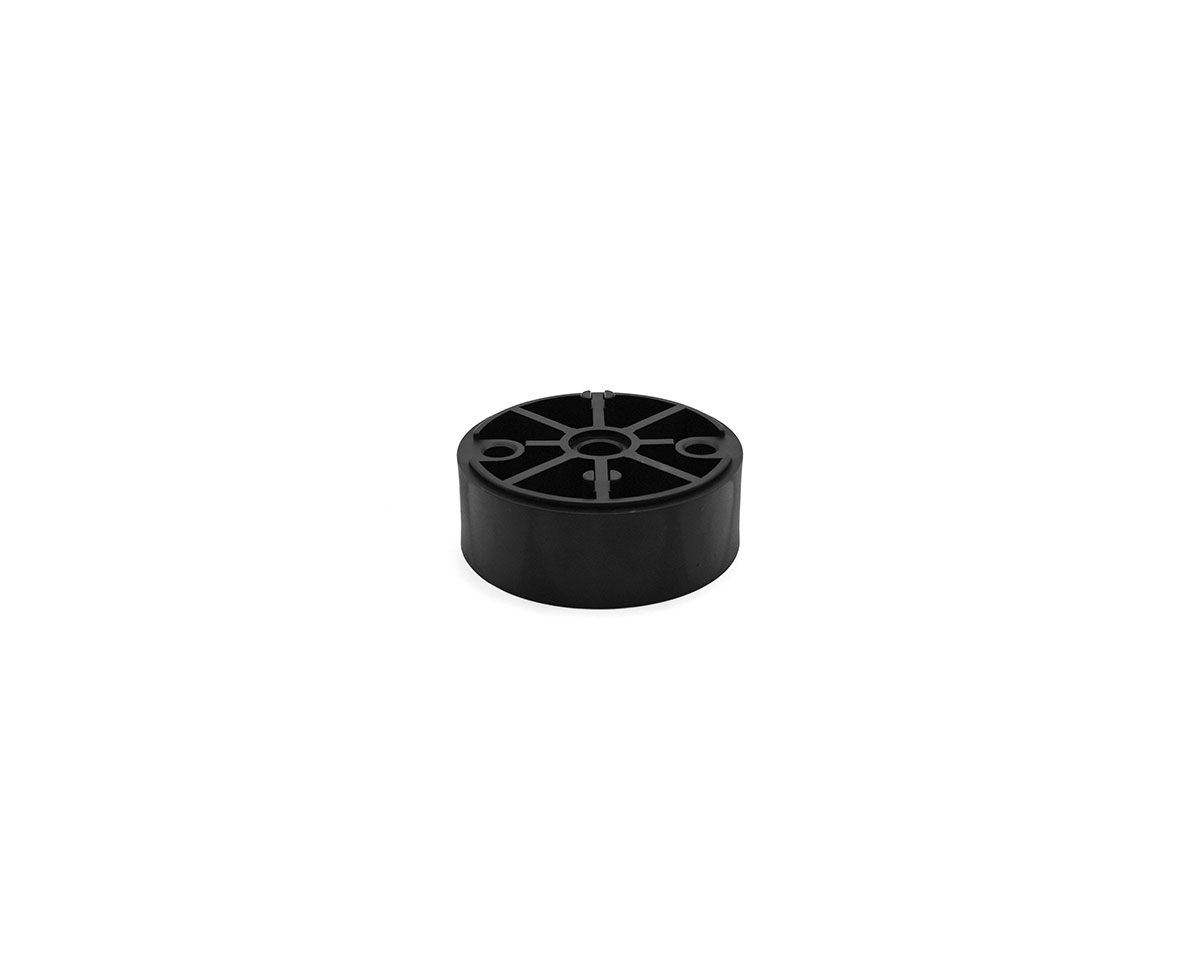

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	20
Spindle length (mm):	200
Balancing angle:	4°

Product description

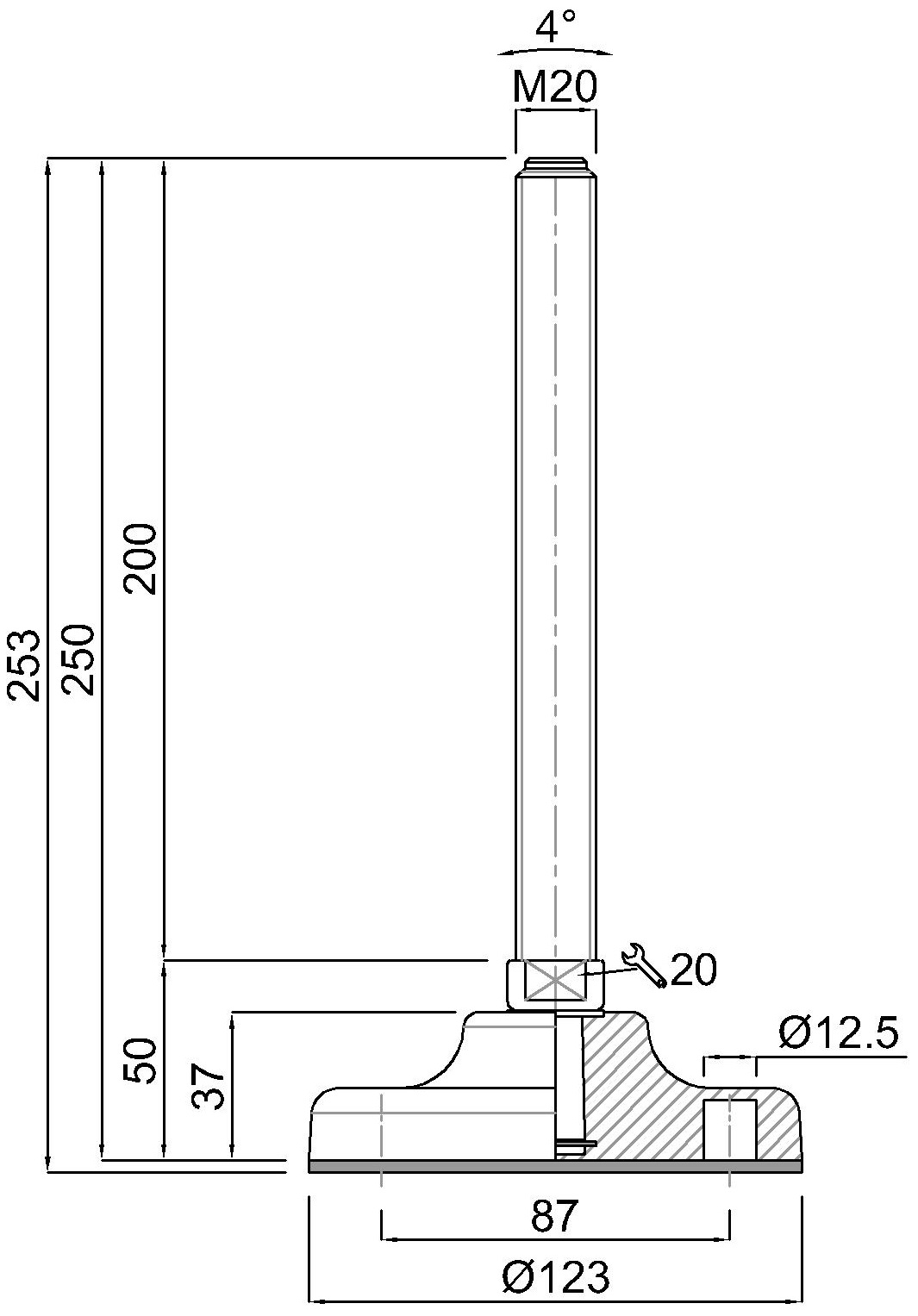

Levelling foot Polyamide, Ø 123 mm, M20 x 200 mm, Galvanized steel, Total height 253 mm, Articulated screw 4°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 45.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
