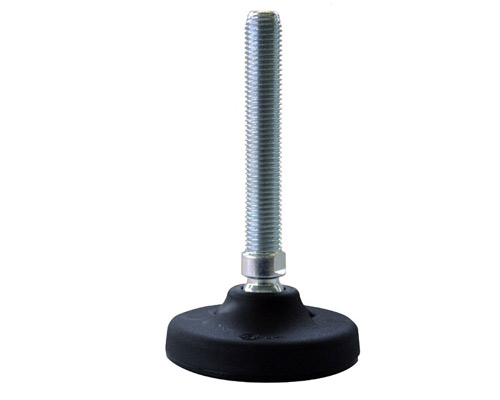

Levelling foot PA, Ø 103 mm, M20 x 100 mm Steel, Drills, NBR
Ensure stability and precision with our durable Polyamide Levelling Foot. Featuring a 103 mm diameter, articulated screw, and 25,000 N static load capacity, it's perfect for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€6.86*
|
| From 5 |
€6.57*
|
| From 15 |
€5.66*
|
| From 50 |
€5.37*
|
39 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
