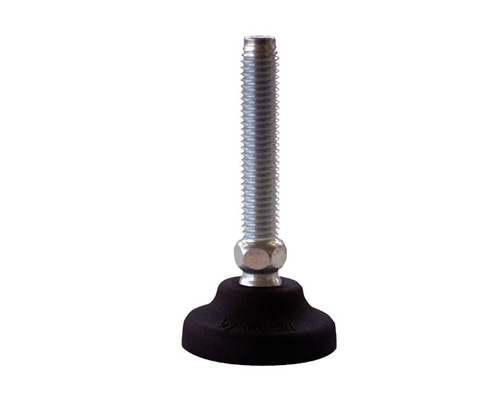

Levelling foot PA, Ø 40 mm, M10 x 75 mm Steel
Introducing our Polyamide Levelling Foot, designed for robust applications with a Ø 40 mm base and M10 x 75 mm galvanized steel spindle. Supports static loads up to 10,000 N with a 30° articulated screw for precise adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€3.31*
|
| From 5 |
€3.17*
|
| From 15 |
€2.73*
|
| From 50 |
€2.59*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 31-40 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |

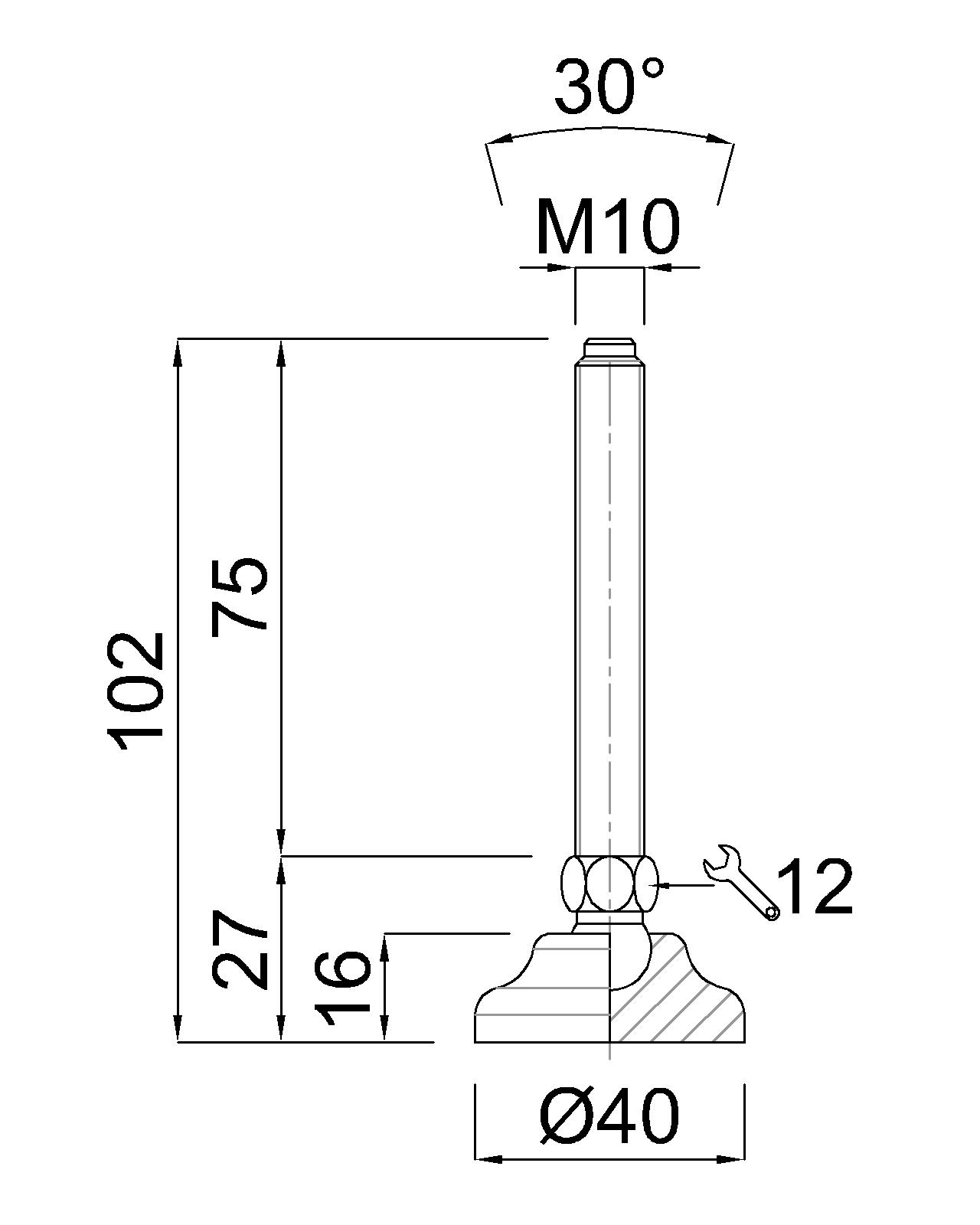

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
