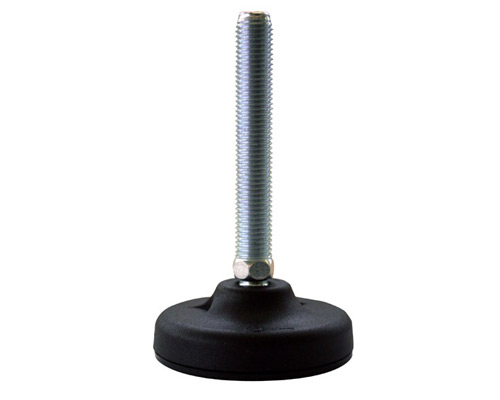

Levelling foot PA, Ø 83 mm, M12 x 125 mm Steel, Drills
Discover the robust Levelling Foot PA, designed with a durable polyamide base and galvanized steel spindle. With a static load capacity of 15,000 N and adjustable angles, it ensures stability and precision in various industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€4.78*
|
| From 5 |
€4.57*
|
| From 15 |
€3.94*
|
| From 50 |
€3.73*
|
15 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |

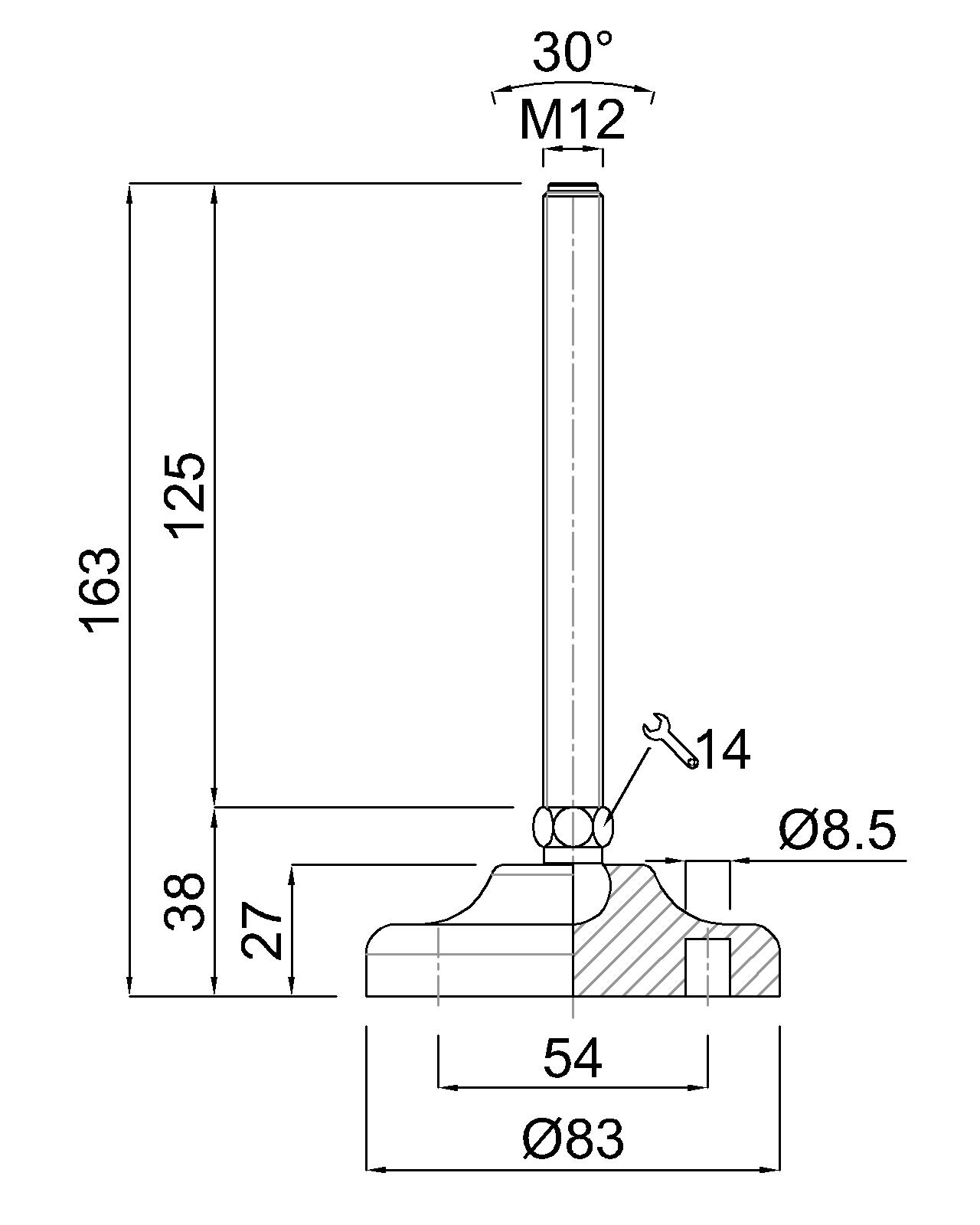

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
