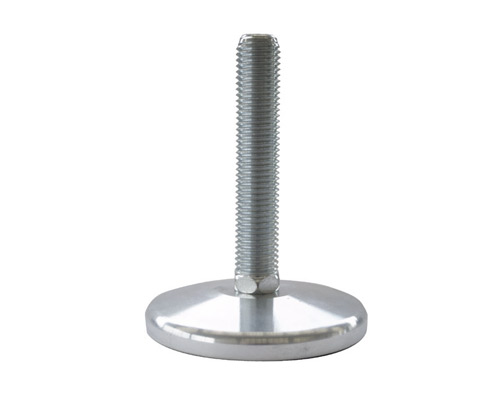

Levelling foot MASSIV Steel, Ø 159 mm, M24 x 250 mm, NBR
EAN
4061408019670
Type
45812019
The MASSIV Steel leveling foot features a robust Ø 159 mm base and a M24 x 250 mm spindle, ensuring stability with a static load capacity of 60,000 N. Enhanced with an anti-slip NBR black surface, it’s ideal for precise leveling in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€45.44*
|
| From 5 |
€43.51*
|
| From 15 |
€42.14*
|
| From 50 |
€41.59*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 250 |
| Balancing angle: | 0° |
Technical drawing
Levelling foot MASSIV Steel, Ø 159 mm, M24 x 250 mm, Galvanized steel, Total height 286 mm, Antislip NBR black, Static load 60.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
