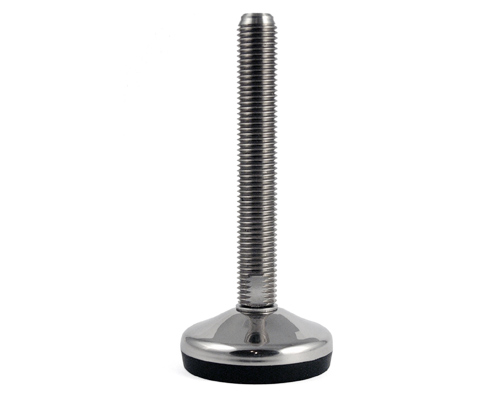

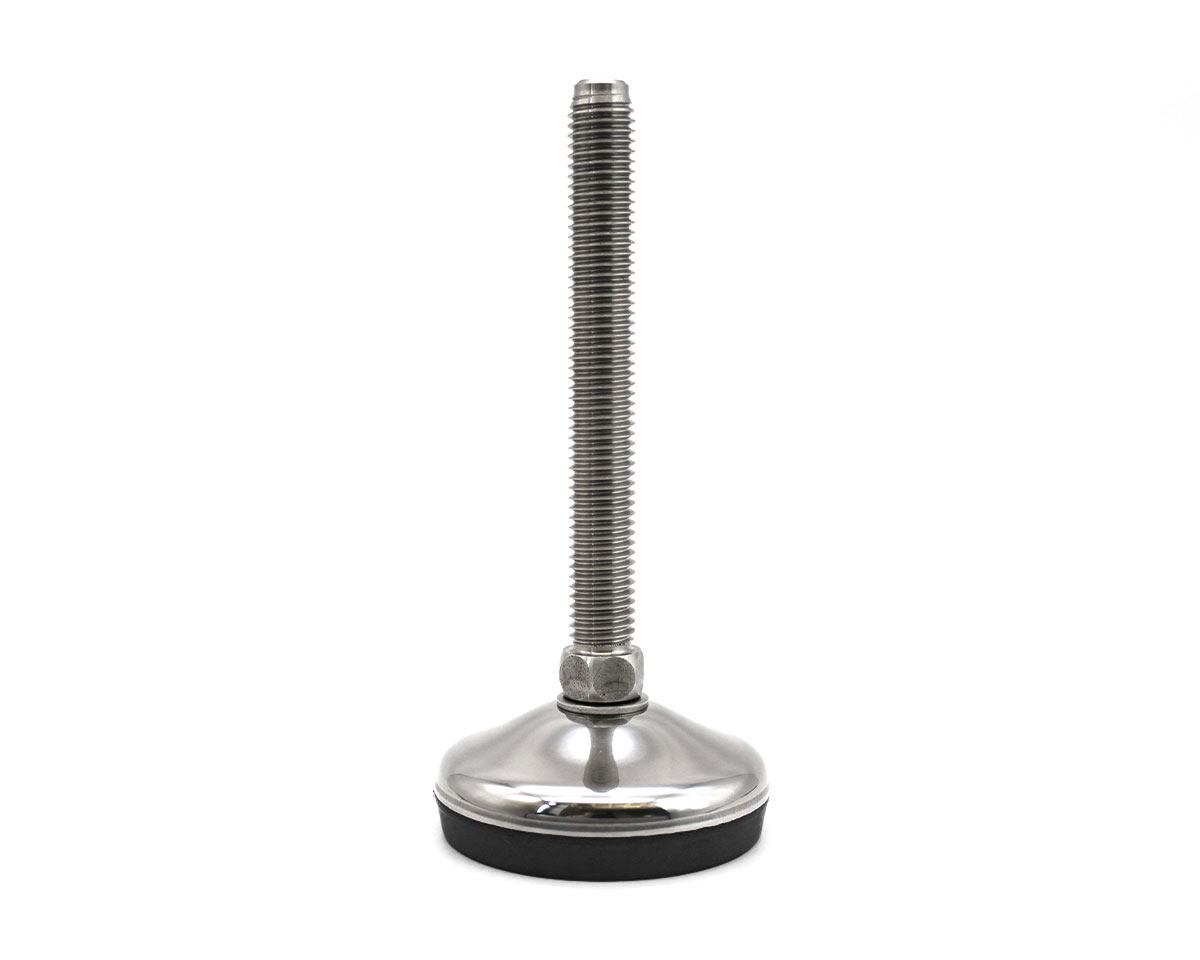

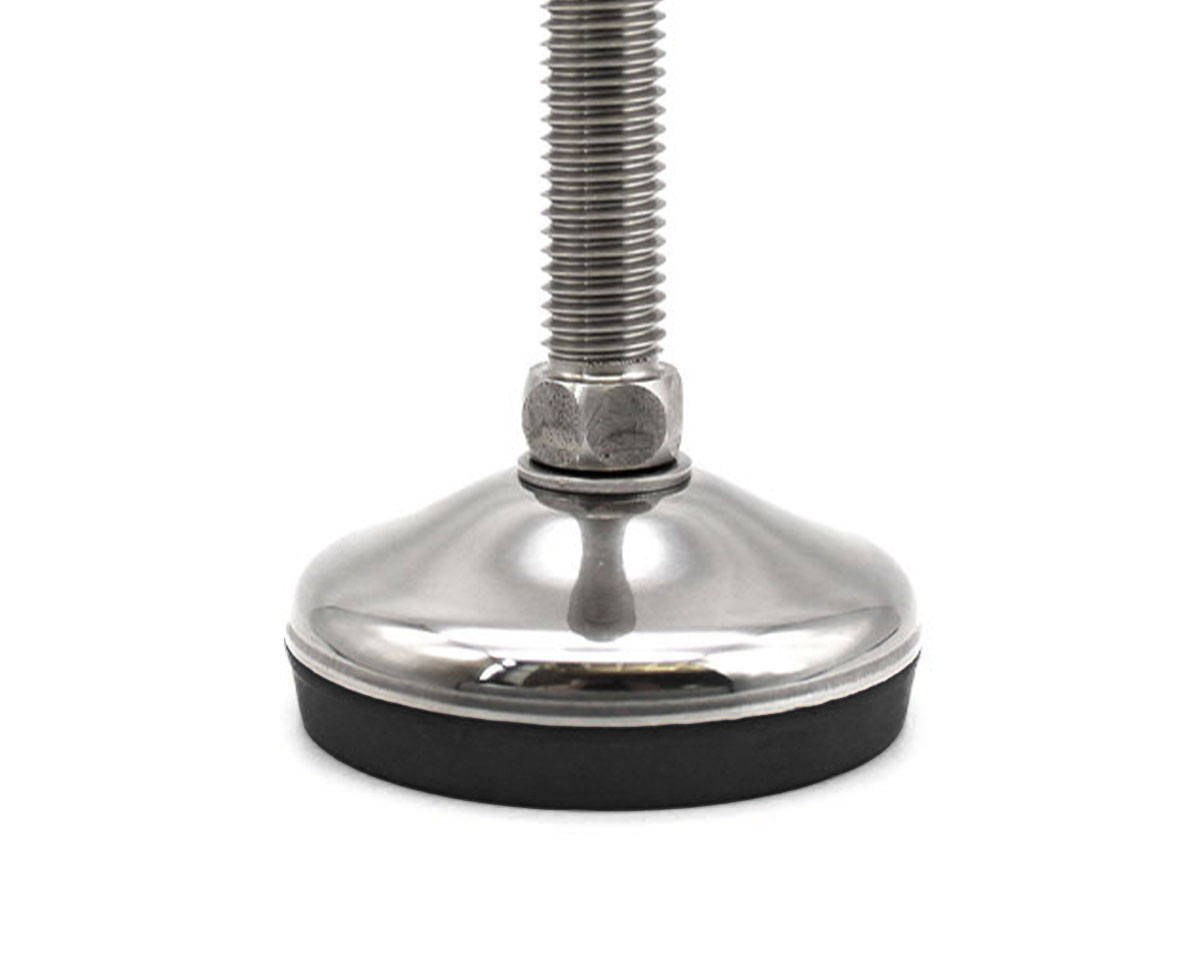

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M12 x 50 mm, NBR
Optimize your equipment stability with our vulcanized stainless steel leveling foot. With a 60 mm diameter, M12 x 50 mm threaded spindle, and a static load capacity of 7,000 N, it ensures robust support and precise leveling even at a 10° angle.
| Quantity | Price |
|---|---|
| From 1 |
€9.29*
|
| From 13 |
€8.73*
|
| From 25 |
€8.16*
|
| From 50 |
€7.77*
|
44 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 50 |
| Balancing angle: | 10° |

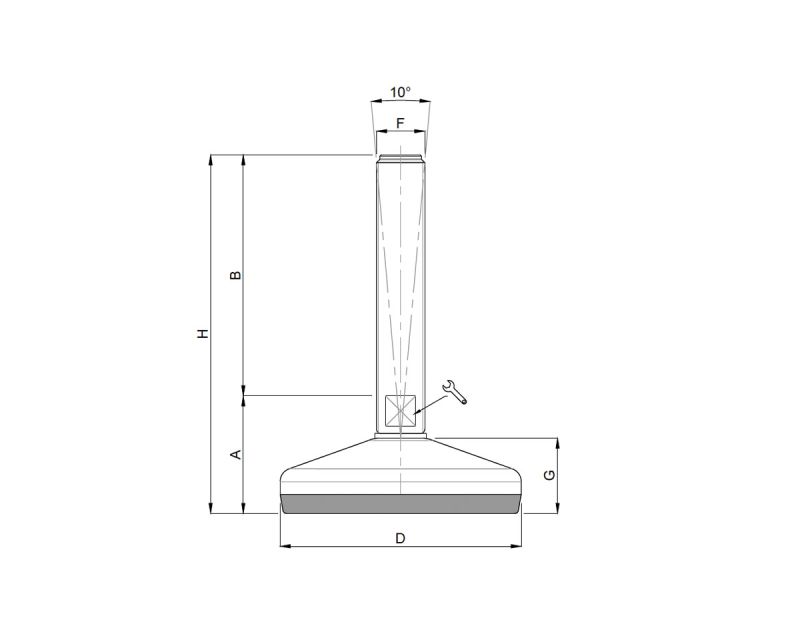

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
