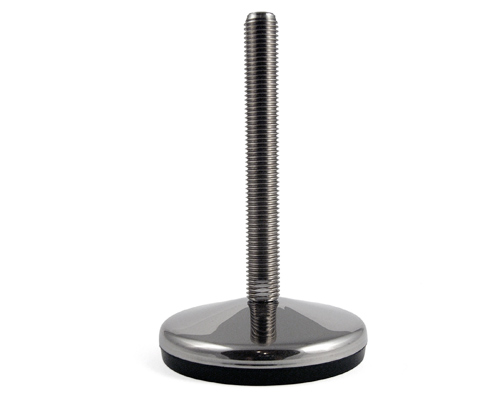

Levelling foot VULCANIZED stainless steel, Ø 120 mm, M20 x 100 mm, NBR
Discover the VULCANIZED stainless steel leveling foot, featuring a 120 mm base diameter and M20 x 100 mm spindle for superior stability. With a static load capacity of 30,000 N, it ensures reliability in challenging conditions.
| Quantity | Price |
|---|---|
| From 1 |
€23.53*
|
| From 13 |
€22.10*
|
| From 25 |
€20.68*
|
| From 50 |
€19.68*
|
33 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |

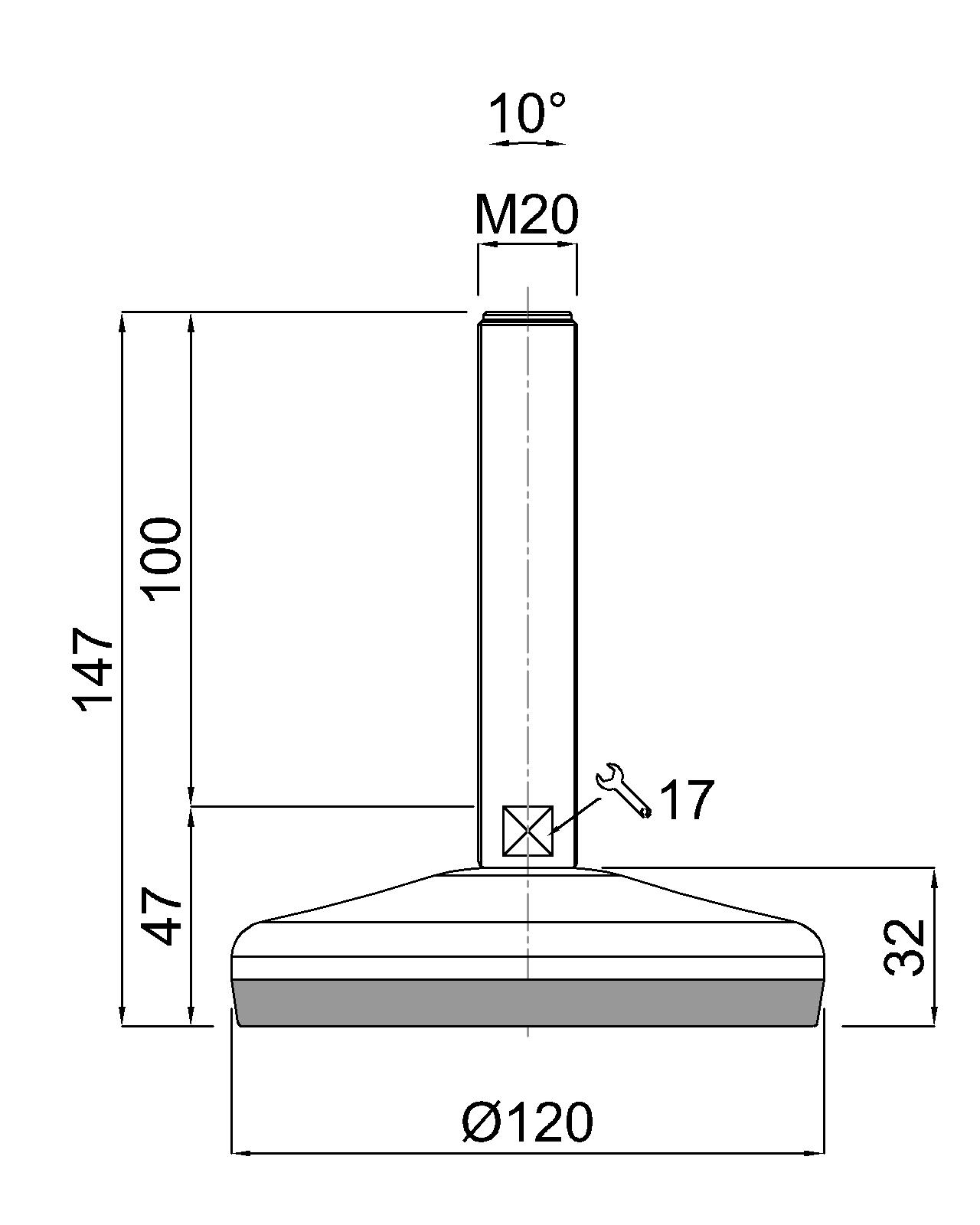

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
