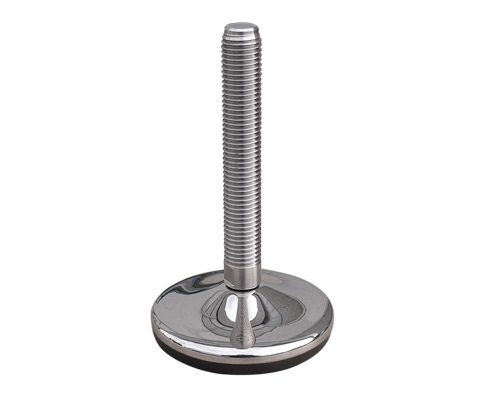

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M30 x 125 mm, NBR
Discover our VULCANIZED stainless steel leveling foot with a 100 mm diameter and M30 x 125 mm spindle for precision support. Engineered for durability, it withstands static loads up to 15,000 N and features a 10° articulated screw with black NBR anti-slip for enhanced stability. Perfect for demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€27.03*
|
| From 13 |
€25.39*
|
| From 25 |
€23.75*
|
| From 50 |
€22.60*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 125 |
| Balancing angle: | 10° |

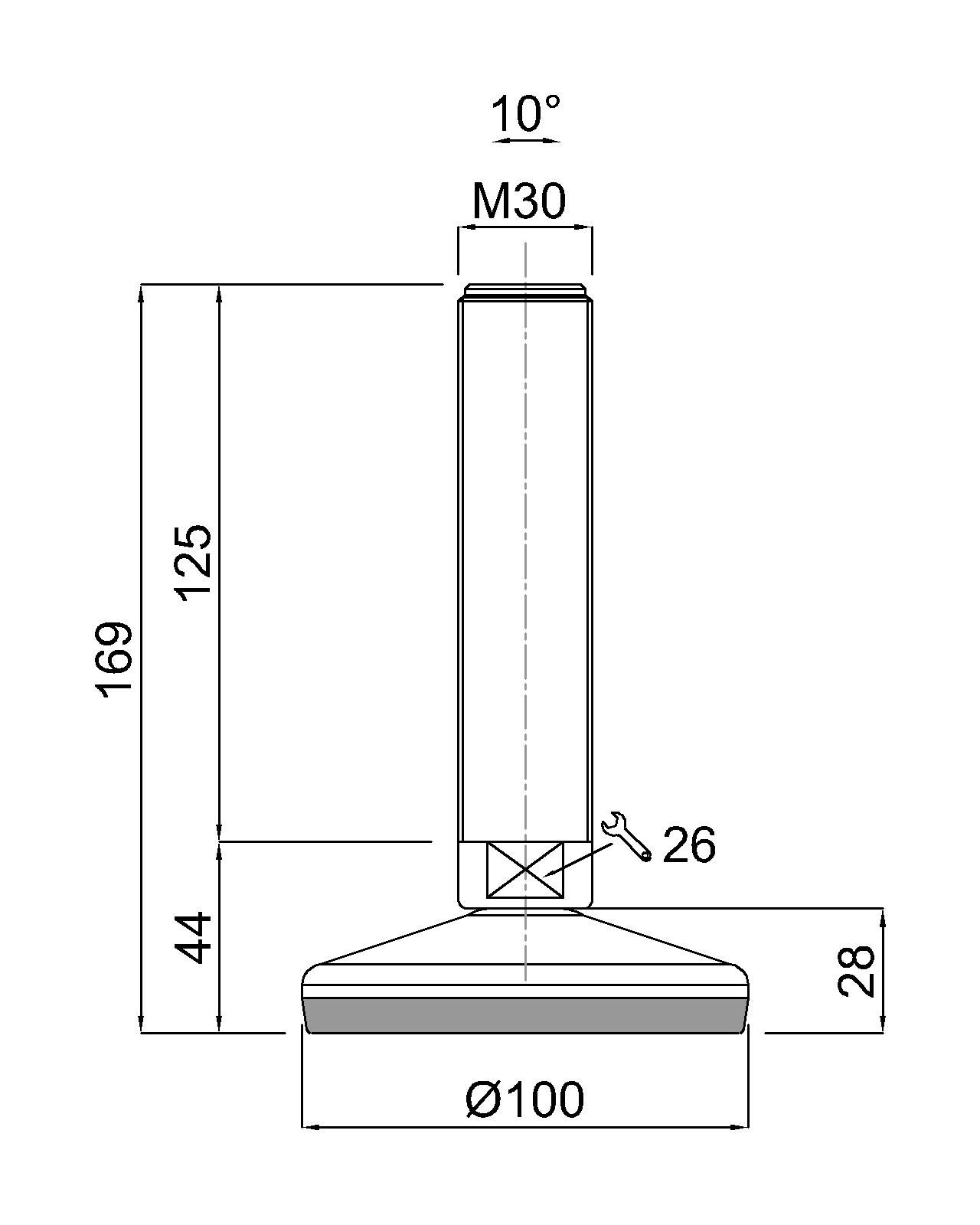

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
