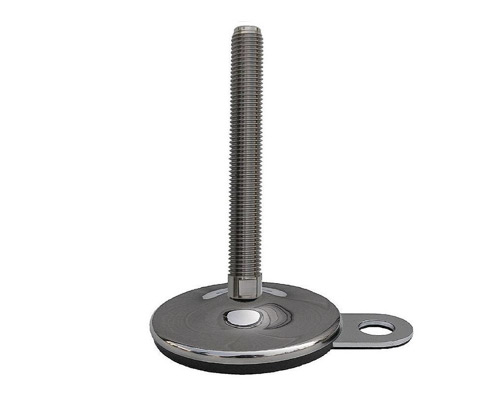

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M30x2 x 150 mm, Lug, NBR
Discover our VULCANIZED Stainless Steel Levelling Foot, designed for stability and precision. With a static load capacity of 15,000 N and a 10° articulated screw, it ensures robust performance for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€35.00*
|
| From 13 |
€32.88*
|
| From 25 |
€30.75*
|
| From 50 |
€29.27*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
