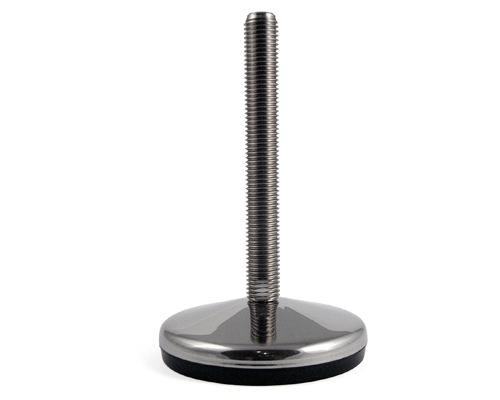

Levelling foot VULCANIZED stainless steel, Ø 120 mm, M30x2 x 150 mm, NBR
Introducing our VULCANIZED stainless steel leveling foot, featuring a robust design with a 120 mm diameter and M30x2 thread. Engineered for precision and superior load handling up to 30,000 N, it includes a 10° articulated screw for effective adjustments and an NBR anti-slip surface for enhanced stability. Ideal for demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€36.65*
|
| From 13 |
€34.43*
|
| From 25 |
€32.20*
|
| From 50 |
€30.65*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
