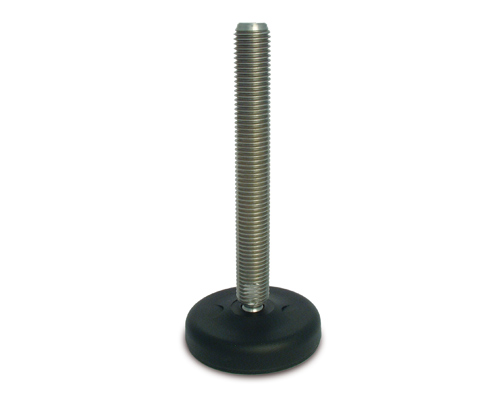

Levelling foot ECO30 PA, Ø 83 mm, M20 x 150 mm Stainless steel, Drills, NBR
The ECO30 leveling foot features a robust polyamide base with a 83 mm diameter and a stainless steel spindle, ensuring stability and support for loads up to 18,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€10.38*
|
| From 5 |
€9.27*
|
| From 15 |
€8.28*
|
| From 50 |
€8.11*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
