Levelling foot PA, Ø 123 mm, M24 x 125 mm Stainless steel, Drills, NBR

EAN 4061408114290

Type 45812883

Introducing our high-performance Levelling Foot made of durable Polyamide and robust Stainless Steel. With a 123 mm diameter, it offers superior stability, a static load capacity of 45,000 N, and adjustable articulation for precise leveling. Ideal for engineering applications needing reliable support.

Durable construction with a polyamide foot and stainless steel spindle, ensuring long-lasting performance in various environments
Large base diameter of 123 mm provides excellent stability and load distribution, capable of supporting static loads up to 45,000 N
Articulated design allowing for adjustments up to 4°, ensuring precise leveling on uneven surfaces
Equipped with two bore holes (Ø 12.5 mm) for secure attachment and reliable fixation in various applications
Antislip NBR black pad enhances grip on surfaces, preventing slipping and improving overall safety and effectiveness

Quantity	Price
From 1	€19.03*
From 5	€17.00*
From 15	€15.18*
From 50	€14.88*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€19.03* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	24
Spindle length (mm):	125
Balancing angle:	4°

Product description

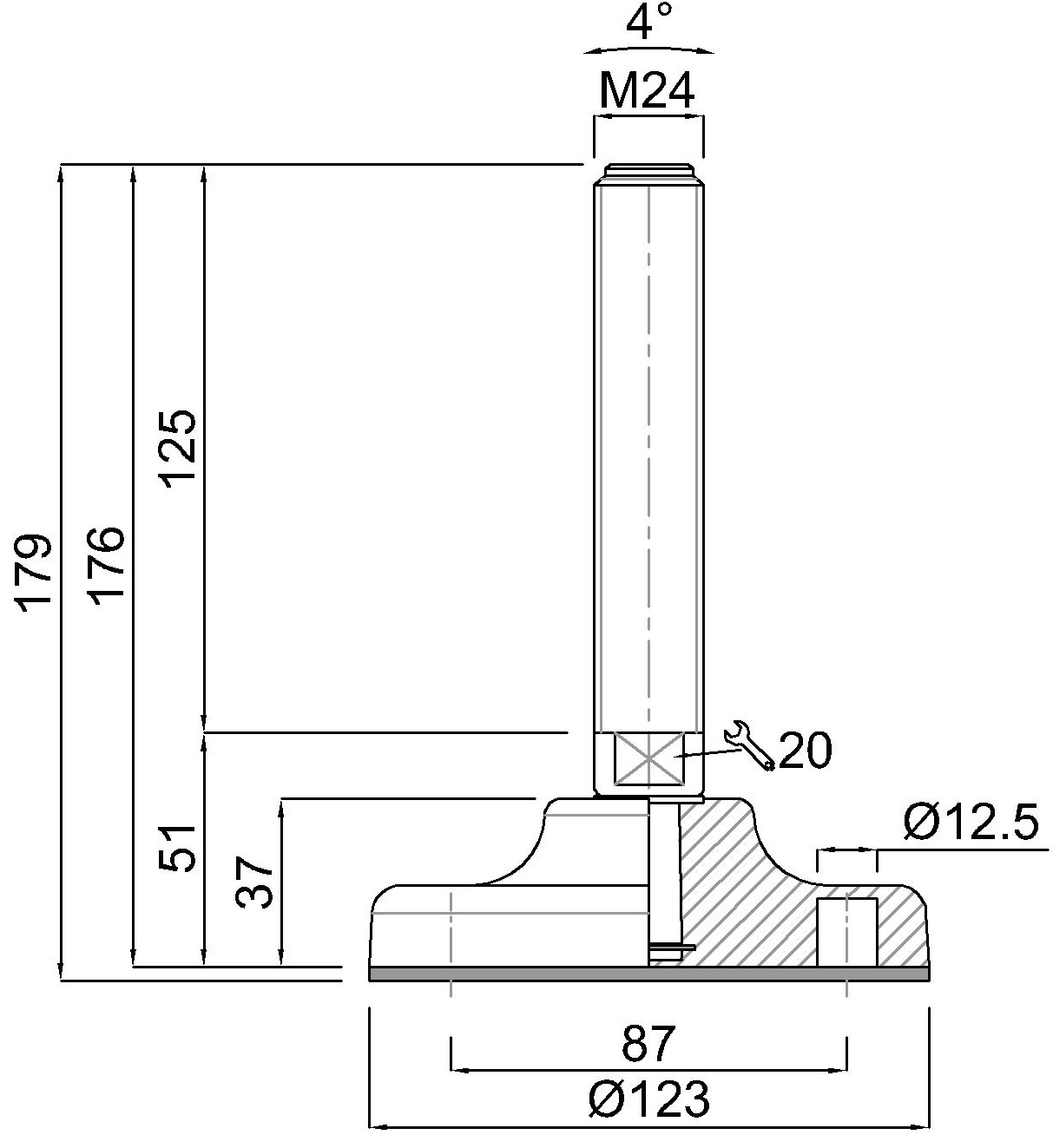

Levelling foot Polyamide, Ø 123 mm, M24 x 125 mm, Stainlees steel, Total height 178 mm, Articulated screw 4°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 45.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
