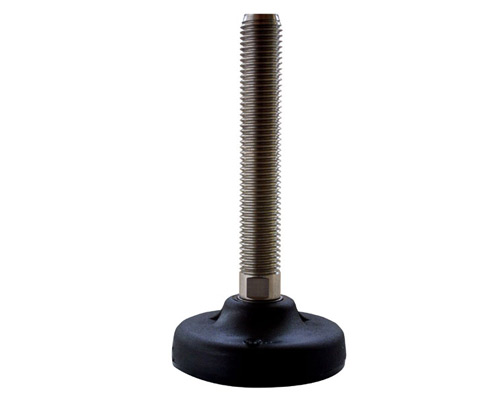

Levelling foot PA, Ø 83 mm, M16 x 175 mm Stainless steel, Drills
Optimize stability with our stainless steel levelling foot, featuring a polyamide base. Designed for precise adjustments, it supports static loads up to 20,000 N with easy installation.
| Quantity | Price |
|---|---|
| From 1 |
€9.63*
|
| From 5 |
€8.60*
|
| From 15 |
€7.68*
|
| From 50 |
€7.53*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 175 |
| Balancing angle: | 4° |
| Hygiene: | No |

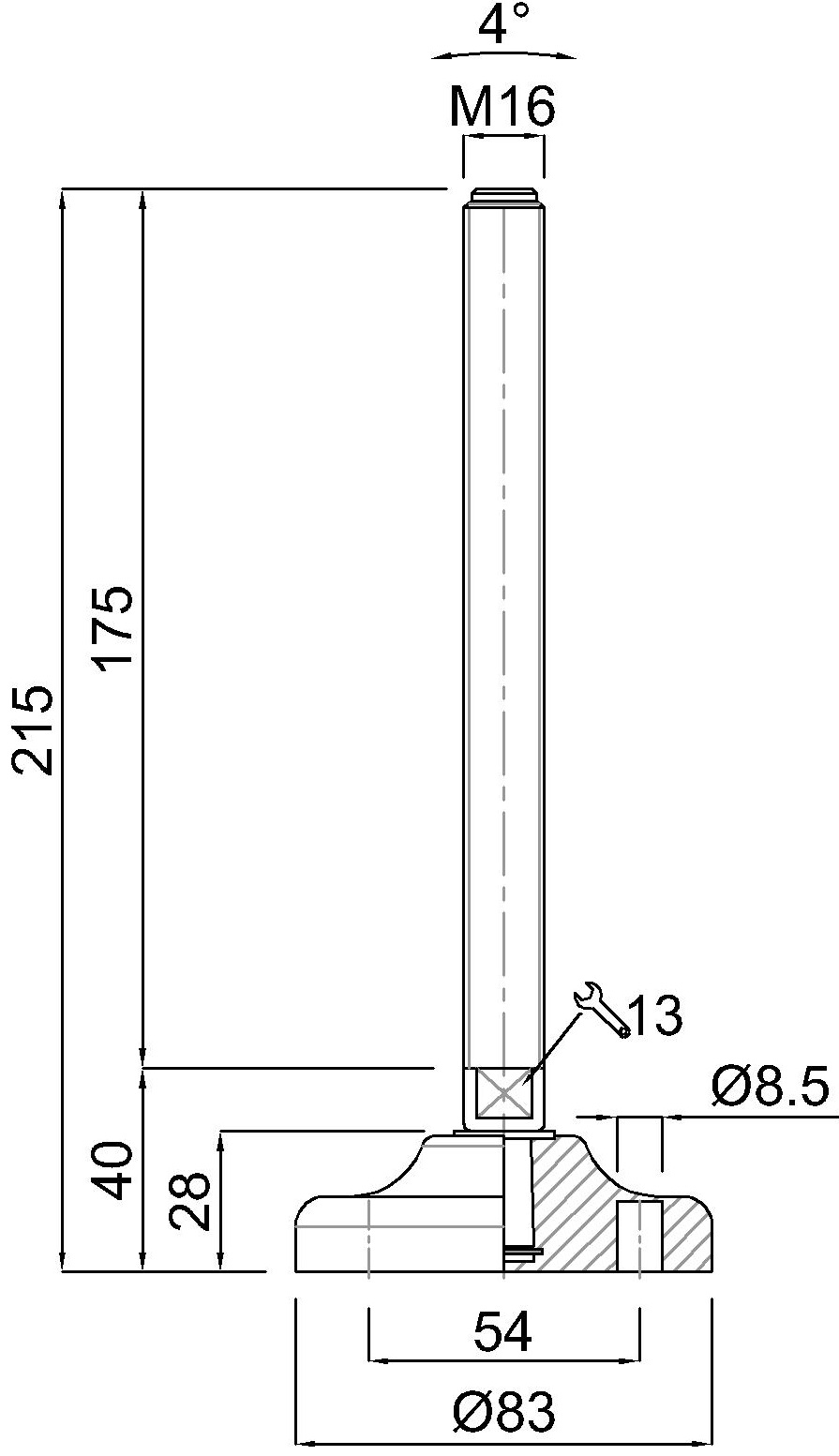

Technical drawing
