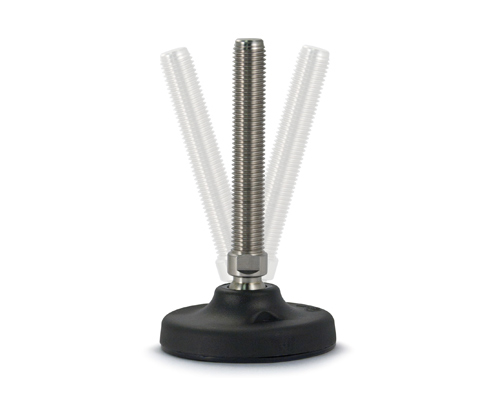

Levelling foot PA, Ø 83 mm, M16 x 175 mm Stainless steel, Drills, NBR
Optimize your equipment stability with our stainless steel leveling foot. Featuring a 30° articulated screw, anti-slip NBR pad, and a static load capacity of 20,000 N, it ensures reliable support.
| Quantity | Price |
|---|---|
| From 1 |
€9.66*
|
| From 5 |
€8.64*
|
| From 15 |
€7.71*
|
| From 50 |
€7.56*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |

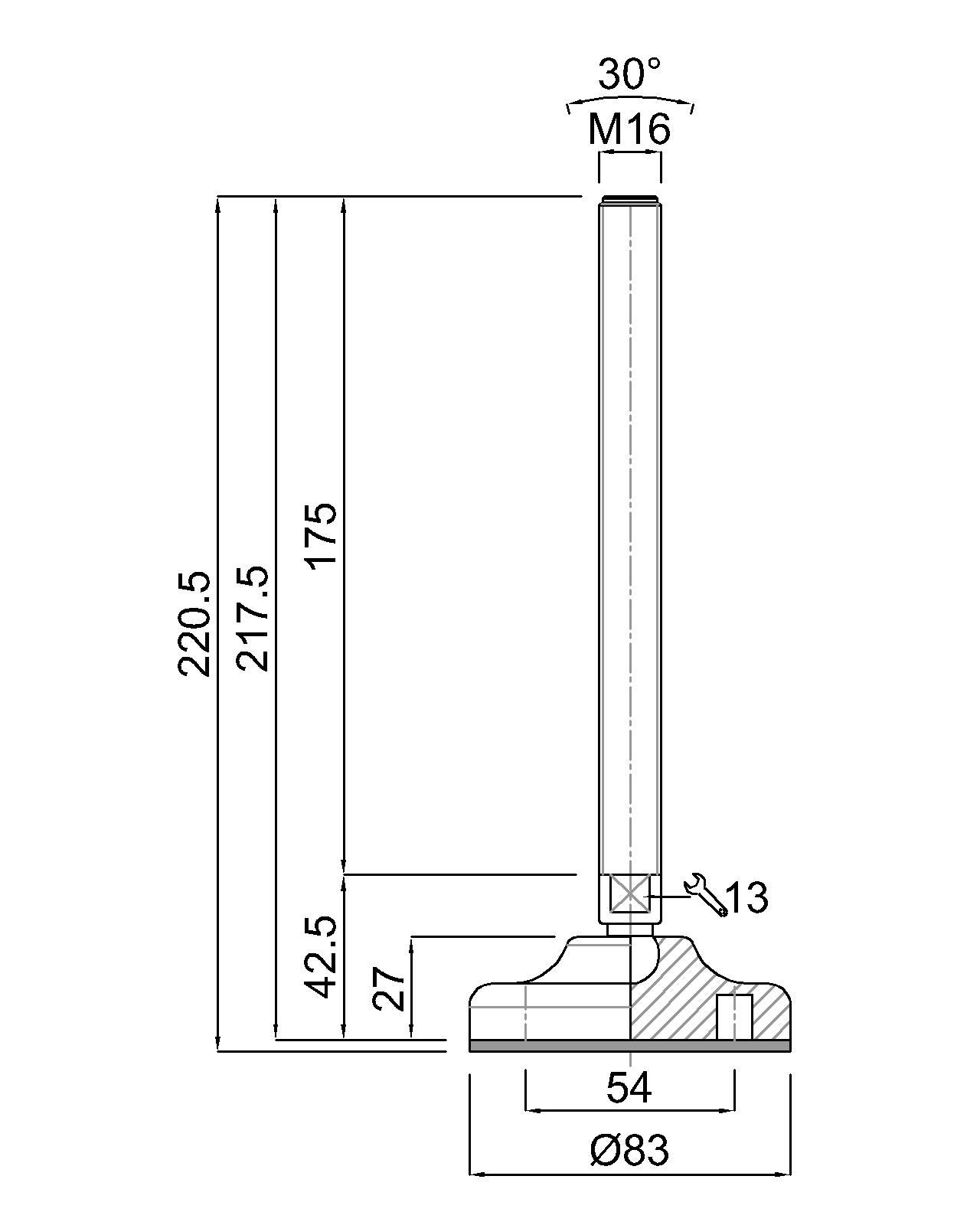

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
