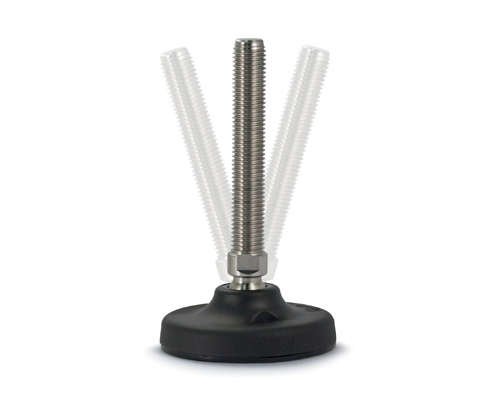

Levelling foot PA, Ø 83 mm, M20 x 100 mm Stainless steel, Drills
Optimize your engineering applications with our high-performance levelling foot. Featuring a durable stainless steel spindle and polyamide base, it supports static loads up to 20,000 N and includes articulated screw adjustment for versatile leveling.
| Quantity | Price |
|---|---|
| From 1 |
€8.07*
|
| From 5 |
€7.21*
|
| From 15 |
€6.44*
|
| From 50 |
€6.31*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
