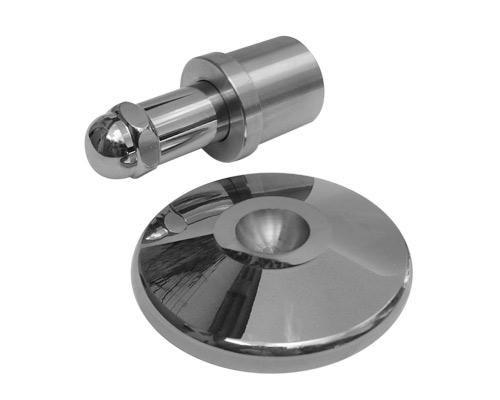

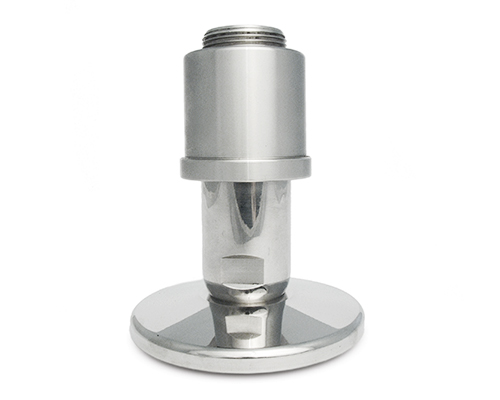

Levelling foot TEKNOTANK, Ø 120 mm Stainless steel, 1 1/4" x 150 mm, NBR
Introducing the TEKNOTANK leveling foot: crafted from stainless steel with a 120 mm diameter, it supports static loads up to 15,000 N. Featuring a 14° articulated screw and 28 mm adjustment range, it ensures stability and hygiene in any application.
| Quantity | Price |
|---|---|
| From 1 |
€123.98*
|
| From 5 |
€123.17*
|
| From 15 |
€119.92*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 1 1/4" |
| Spindle length (mm): | 150 |
| Balancing angle: | 14° |
| Hygiene: | Yes |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
