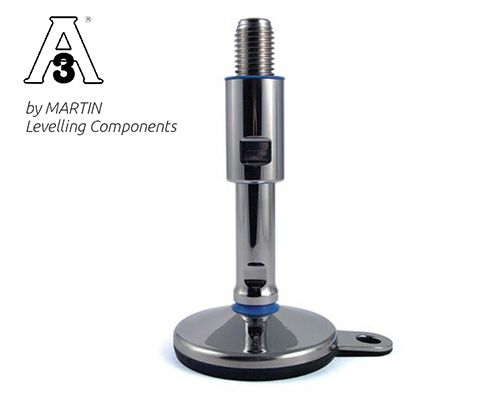

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M20 x 190 mm, Lug, NBR

EAN 4061408110537

Type 45827148F/3A

Optimize your equipment with the TEKNO-HYGIENIC 3-A leveling foot, featuring a durable stainless steel design, 70 mm adjustment range, and 20,000 N static load capacity. Perfect for hygienic environments.

Constructed from high-grade stainless steel for enhanced durability and corrosion resistance.
Features a hygienic design certified by the 3-A Sanitary Standard, making it ideal for use in sensitive environments.
Adjustable height with a total height of 243 mm and a range of 70 mm for versatile leveling applications.
Capable of supporting static loads up to 20,000 N, ensuring reliable performance under demanding conditions.
Equipped with an anti-slip NBR footing for increased stability and safety in various installations.

Quantity	Price
From 1	€49.25*
From 13	€48.18*
From 41	€47.47*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€49.25* / piece

Our payment methods:

Accessories

Hygienic 3-A nut M12 with blue silicone gasket

Type No.: 458DDM12I/3A

€7.24*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	190
Balancing angle:	15°
Hygiene:	Yes
Hygiene certification:	3-A Sanitary Standard

Product description

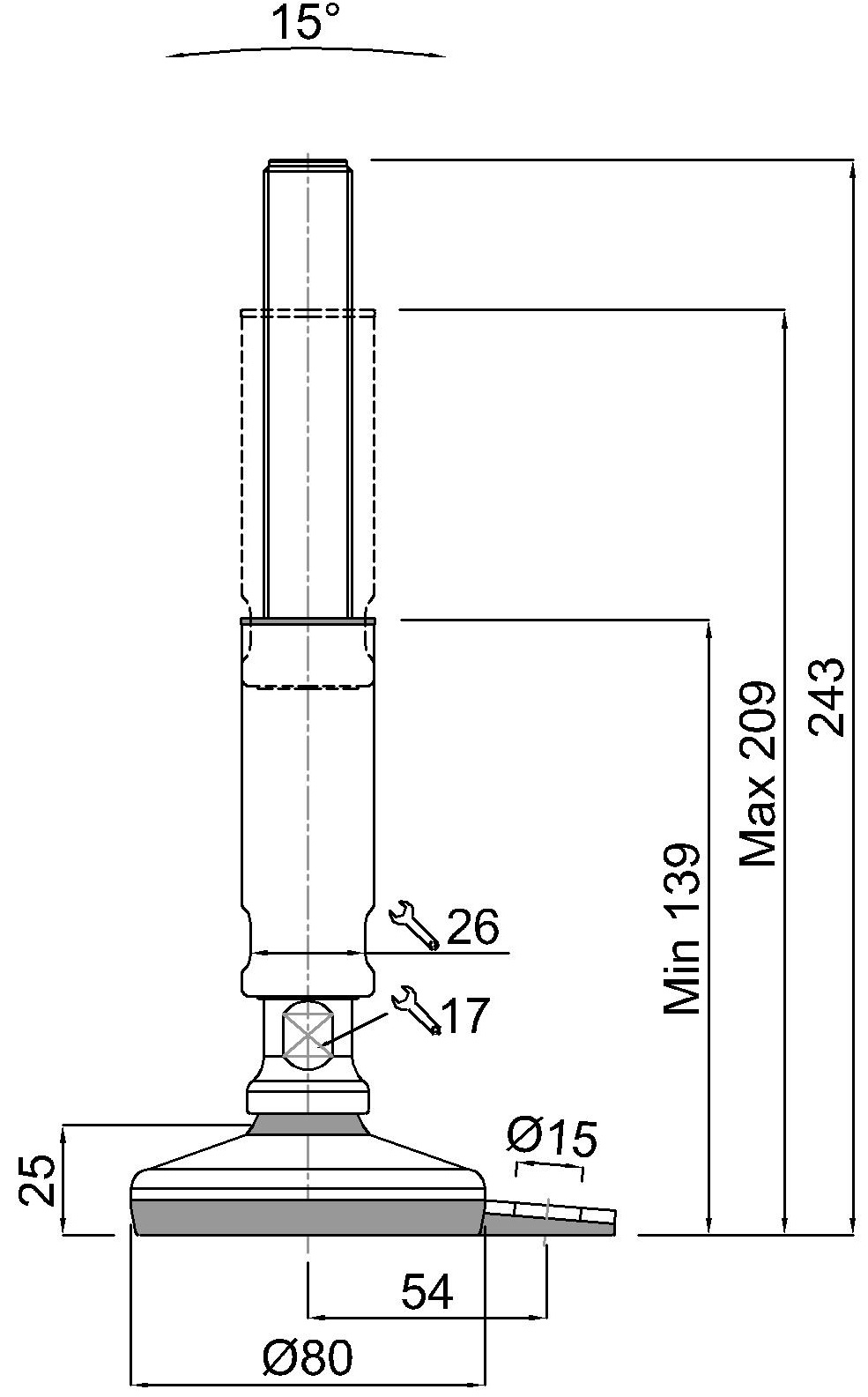

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M20 x 190 mm, Stainlees steel, Total height 243 mm, Articulated screw 15°, Adjustment range 70 mm, Bushing 85 mm, Lug Ø 15 mm, Antislip NBR black, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
