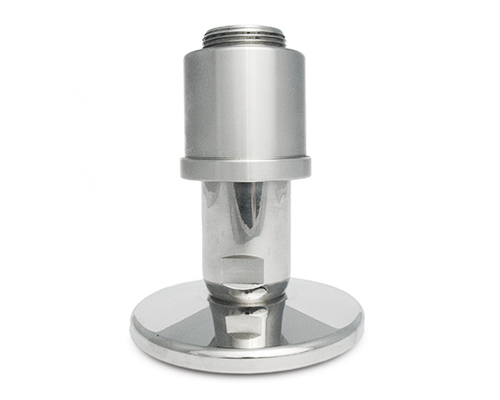

Levelling foot TEKNOTANK, Ø 100 mm Stainless steel, 3/4" x 100 mm
The TEKNOTANK levelling foot features a robust stainless steel design with a 100 mm diameter and a total height of 120 mm, ensuring stability with a static load capacity of 70,000 N. Its articulated screw allows for a precise 14° adjustment range of 18 mm, making it ideal for various applications while maintaining hygienic standards.
| Quantity | Price |
|---|---|
| From 1 |
€68.71*
|
| From 5 |
€68.26*
|
| From 15 |
€66.47*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 3/4" |
| Spindle length (mm): | 100 |
| Balancing angle: | 14° |
| Hygiene: | Yes |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
