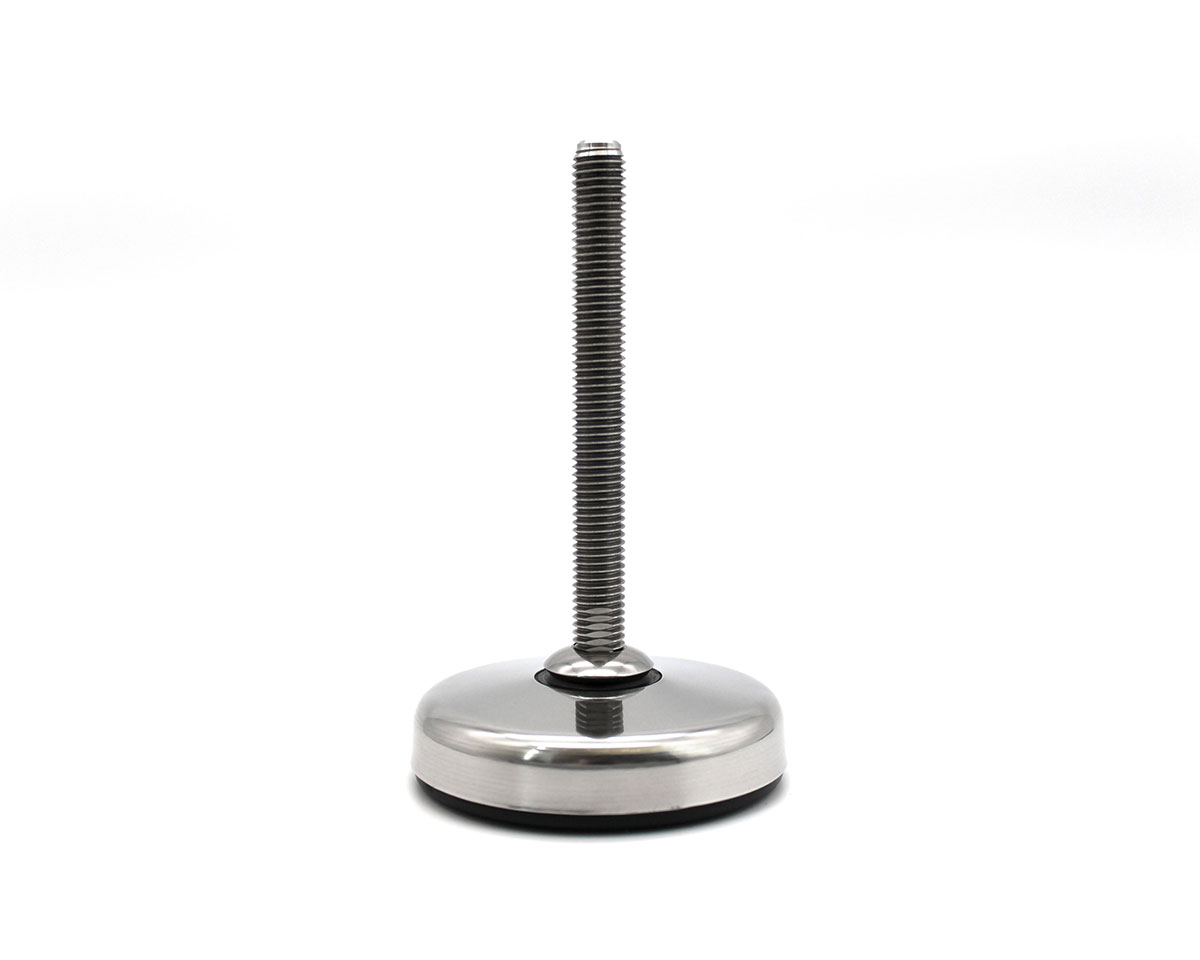

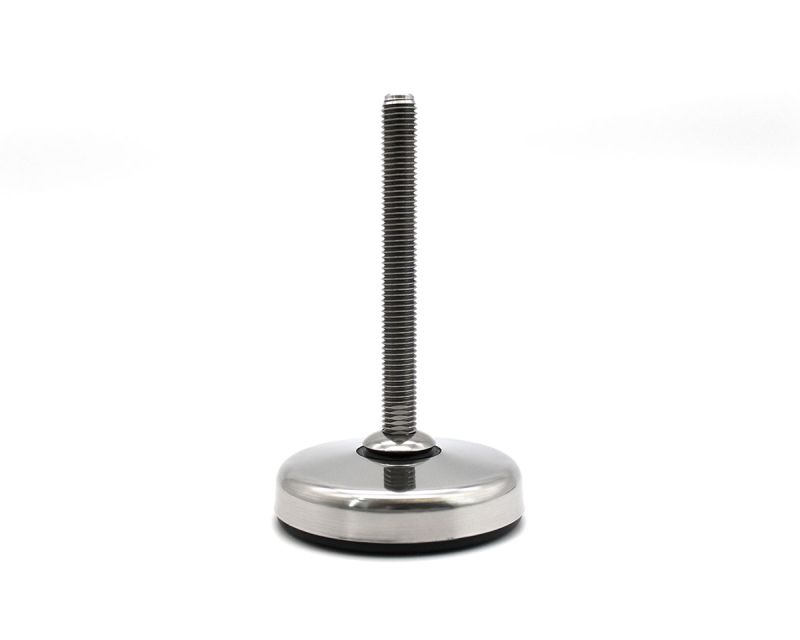

Levelling foot ECO16 PA Stainless steel, Ø 103 mm, M20 x 100 mm
The ECO16 Levelling Foot combines durable polyamide and stainless steel construction for enhanced stability. With a 30,000 N static load capacity and a 16° articulation angle, it ensures precise leveling in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€13.57*
|
| From 5 |
€12.13*
|
| From 15 |
€10.83*
|
| From 50 |
€10.61*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |

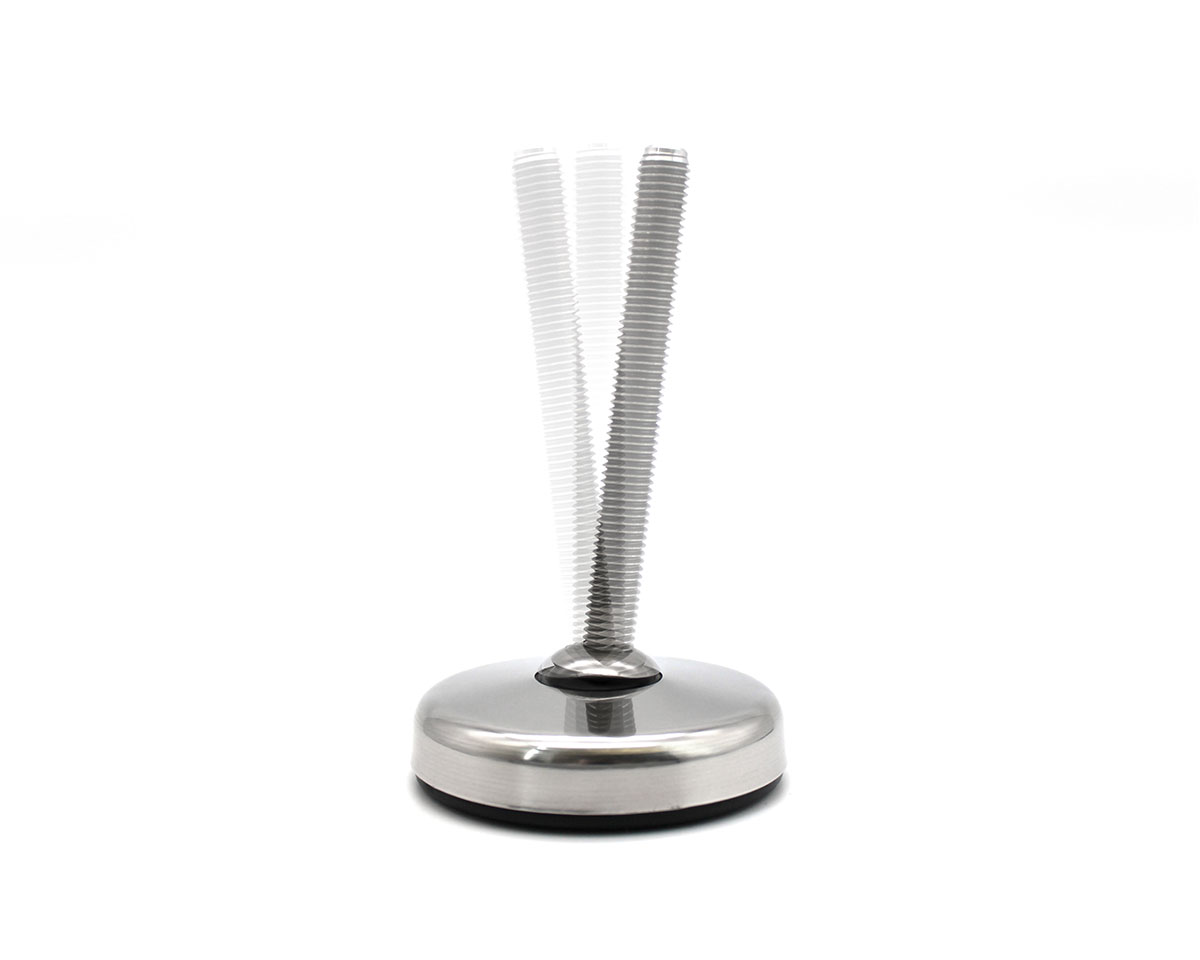

| Balancing angle: | 16° |

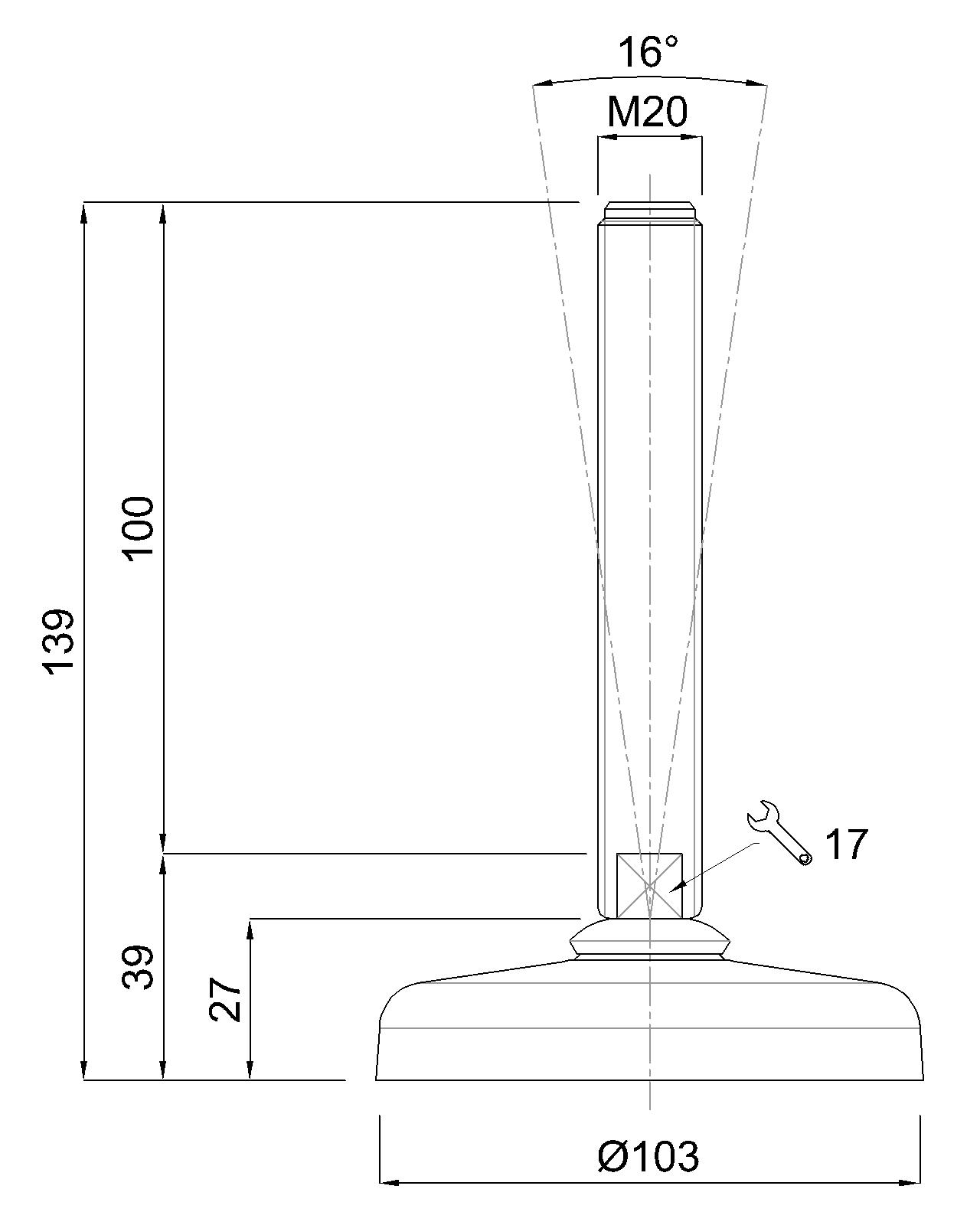

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
