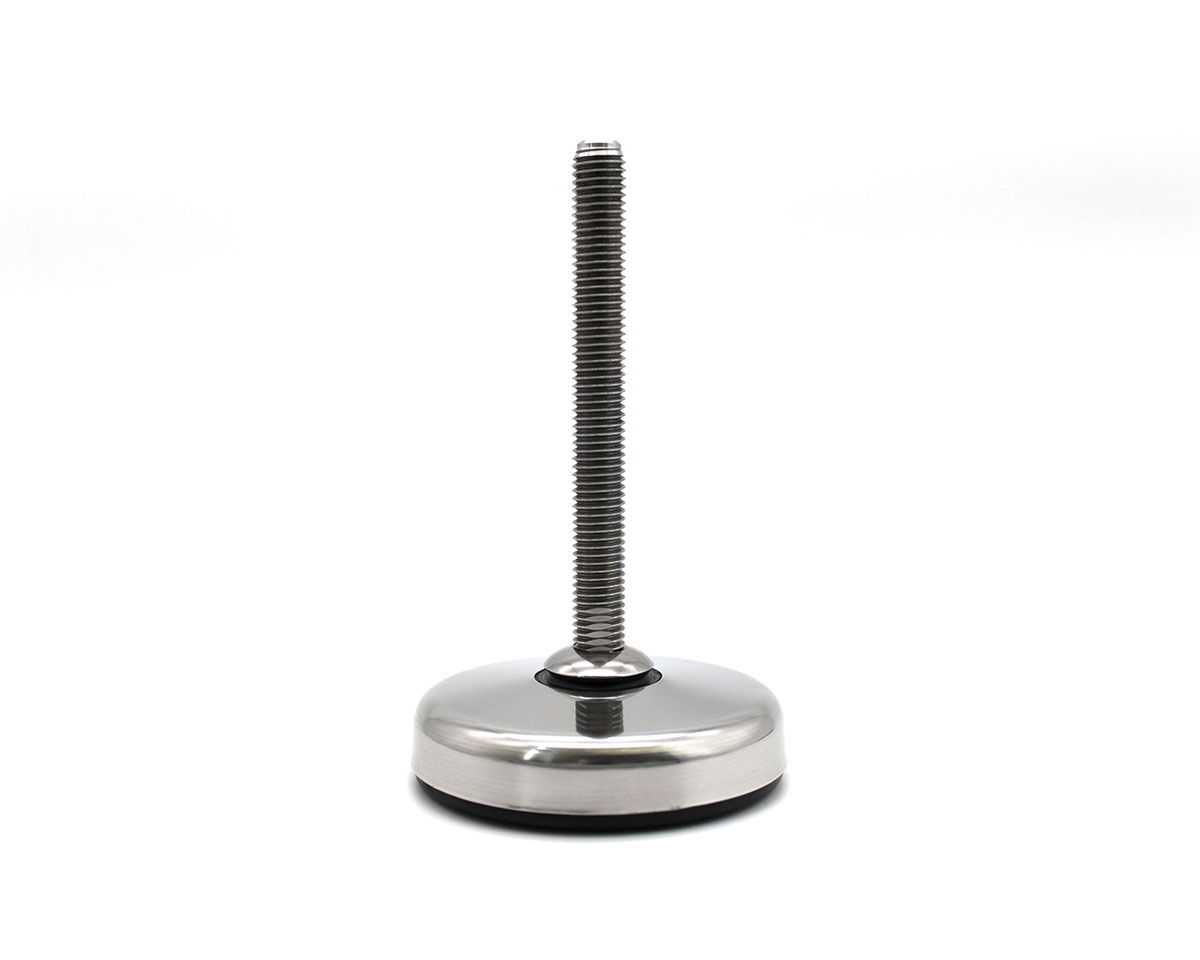

Levelling foot ECO16 PA Stainless steel, Ø 103 mm, M16 x 200 mm, NBR
The ECO16 Levelling Foot combines robust stainless steel and polyamide construction with a 240 mm total height. Its articulated screw offers a 16° adjustment angle, ensuring stability under static loads up to 30,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€15.13*
|
| From 5 |
€13.52*
|
| From 15 |
€12.08*
|
| From 50 |
€11.83*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 200 |
| Balancing angle: | 16° |

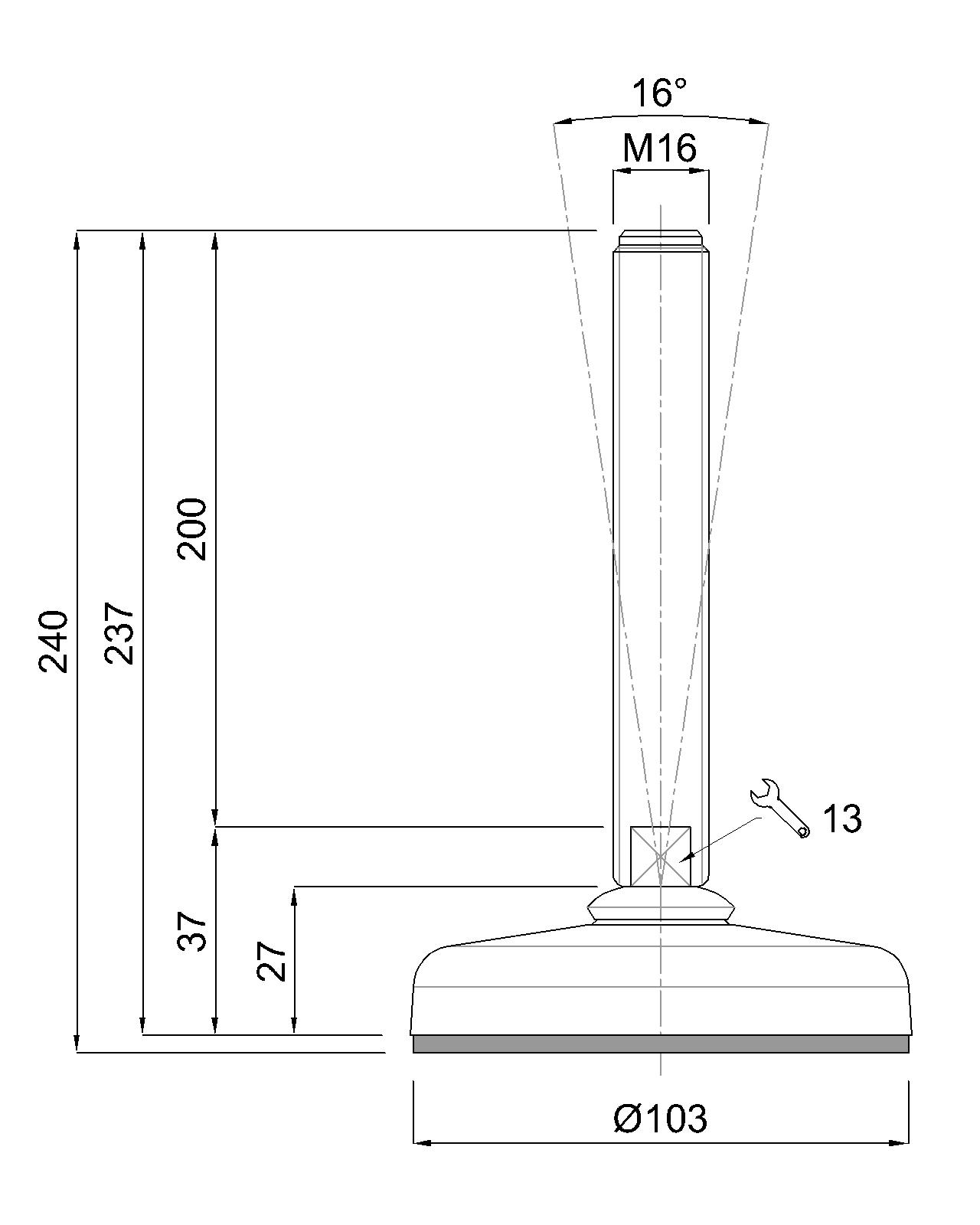

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
