Levelling foot ECO16 PA Stainless steel, Ø 103 mm, M16 x 100 mm
Discover the ECO16 Levelling Foot, designed for precision support with a durable stainless steel spindle and robust polyamide base. Ideal for static loads up to 30,000 N, this solution ensures stability and adaptability.
| Quantity | Price |
|---|---|
| From 1 |
€11.49*
|
| From 5 |
€10.26*
|
| From 15 |
€9.17*
|
| From 50 |
€8.98*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 16° |
| Hygiene: | No |

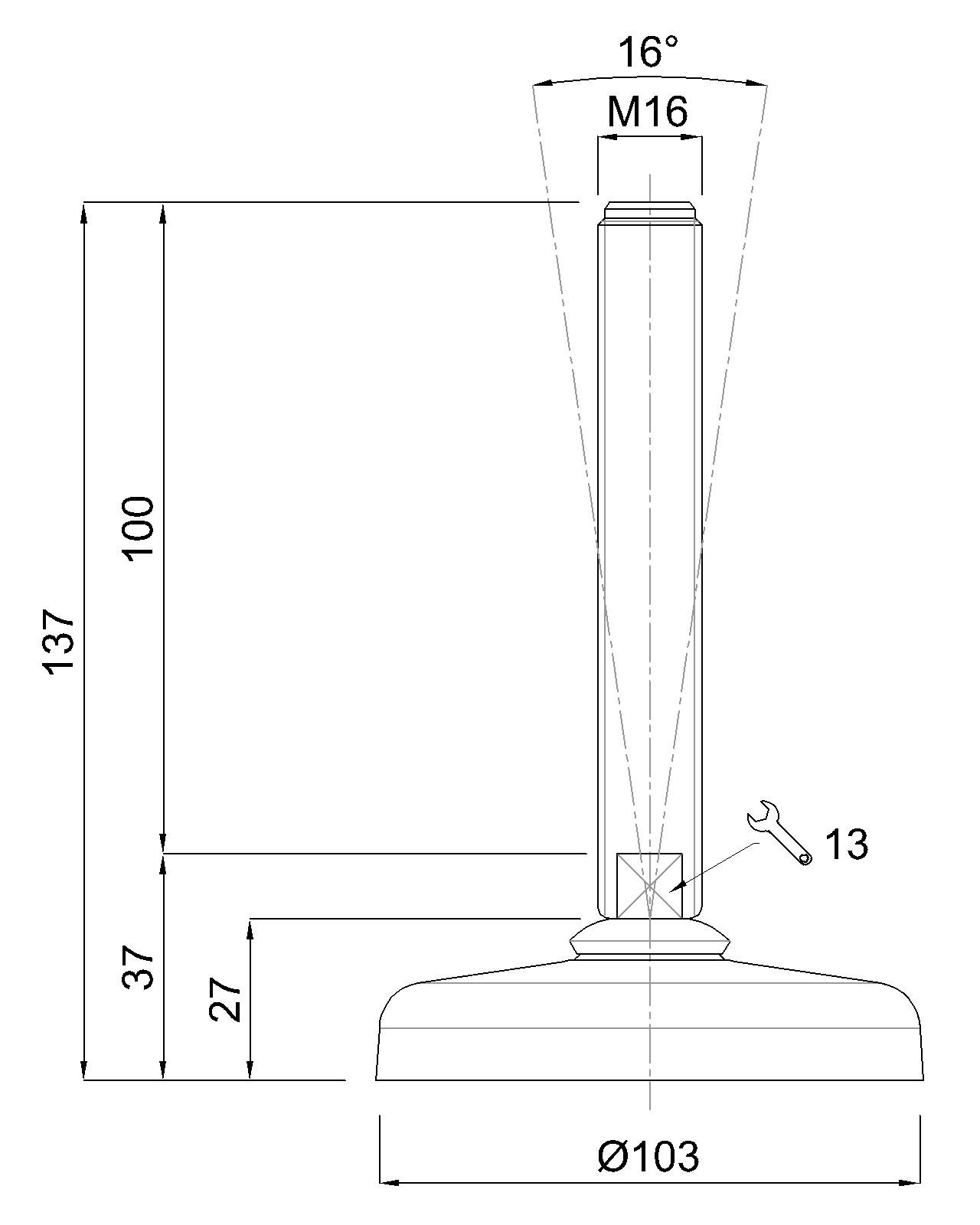

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
