Levelling foot ECO30 PA Stainless steel, Ø 83 mm, M10 x 100 mm, NBR
Discover the ECO30 Levelling Foot, featuring a durable polyamide base and stainless steel spindle. With a static load capacity of 10,000 N and a 30° articulated screw, it ensures stability and precision in your applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.79*
|
| From 5 |
€8.75*
|
| From 15 |
€7.82*
|
| From 50 |
€7.66*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |

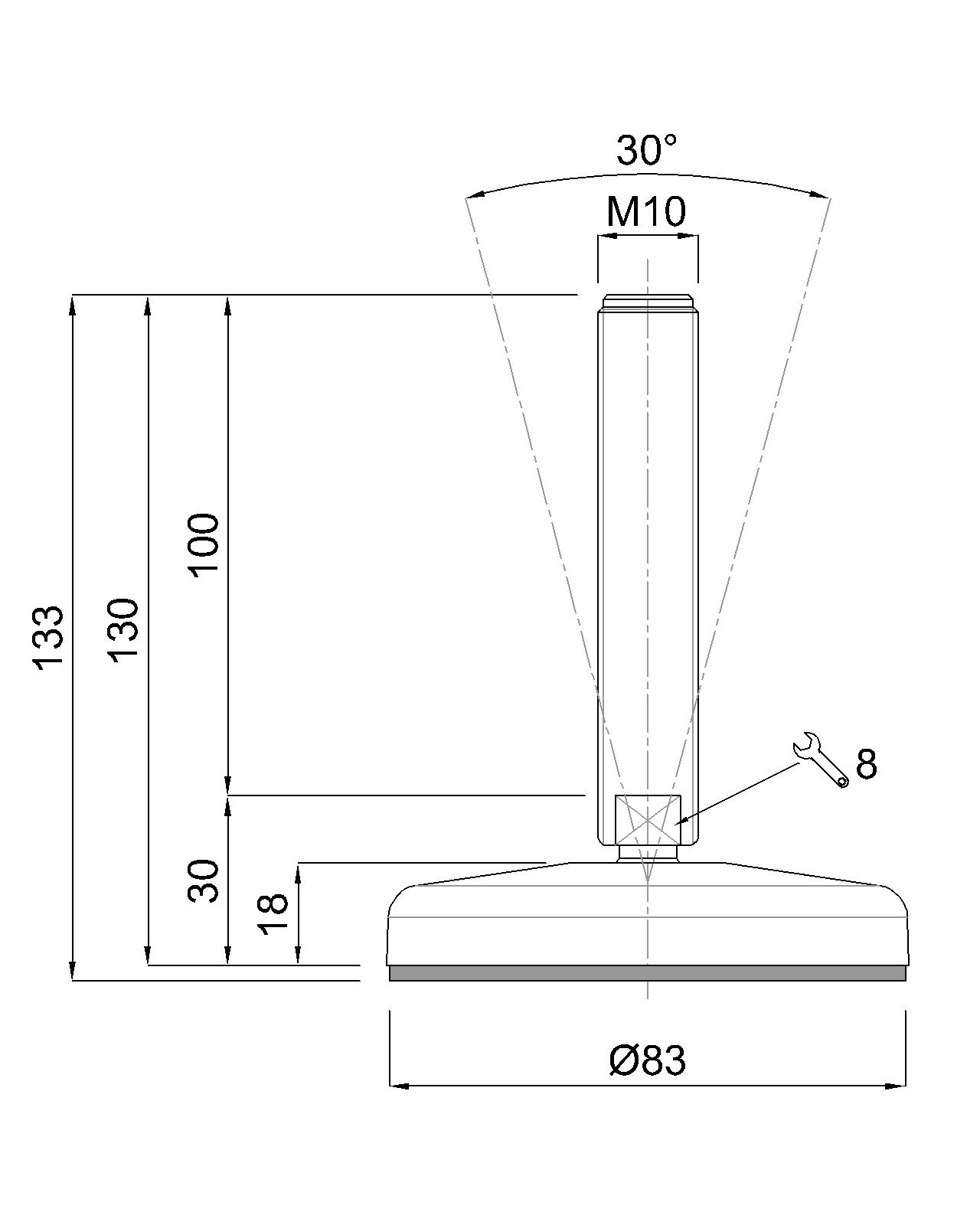

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
