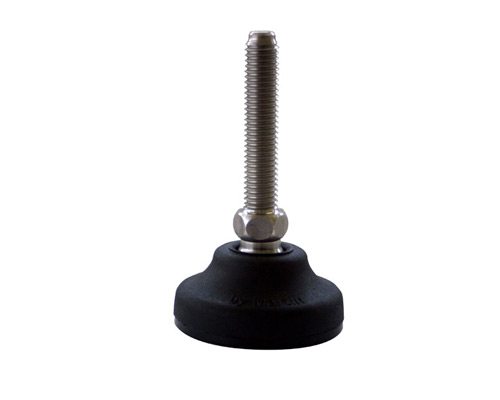

Levelling foot PA, Ø 50 mm, M12 x 50 mm Stainless steel, NBR
Optimize your equipment's stability with our robust Levelling Foot PA. Featuring a durable Ø 50 mm polyamide base and M12 stainless steel spindle, it supports static loads up to 11,000 N and accommodates a 30° adjustment angle.
| Quantity | Price |
|---|---|
| From 1 |
€5.49*
|
| From 5 |
€4.91*
|
| From 15 |
€4.38*
|
| From 50 |
€4.29*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 50 |
| Balancing angle: | 30° |
| Anti-slip: | NBR black |

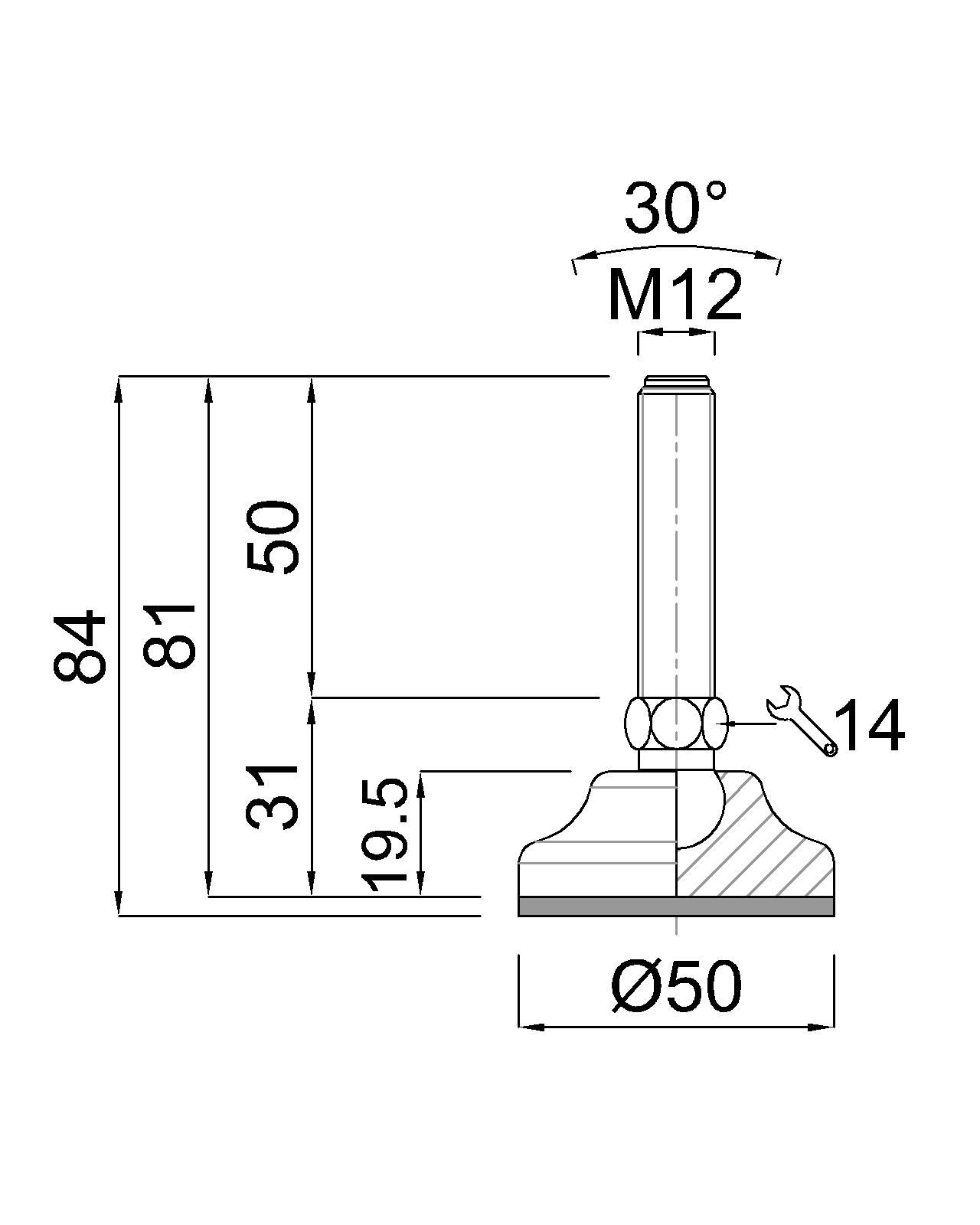

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
