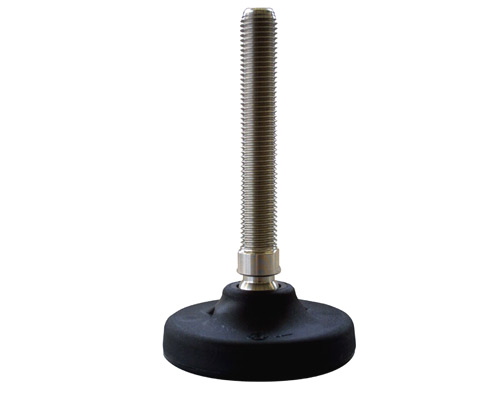

Levelling foot PA, Ø 103 mm, M16 x 150 mm Stainless steel, Drills
Discover our high-performance Levelling Foot made of durable polyamide with a diameter of 103 mm. Featuring a stainless steel spindle, it supports static loads up to 25,000 N and allows for adjustable angles up to 30°. Ideal for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.27*
|
| From 5 |
€7.39*
|
| From 15 |
€6.60*
|
| From 50 |
€6.47*
|
45 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |

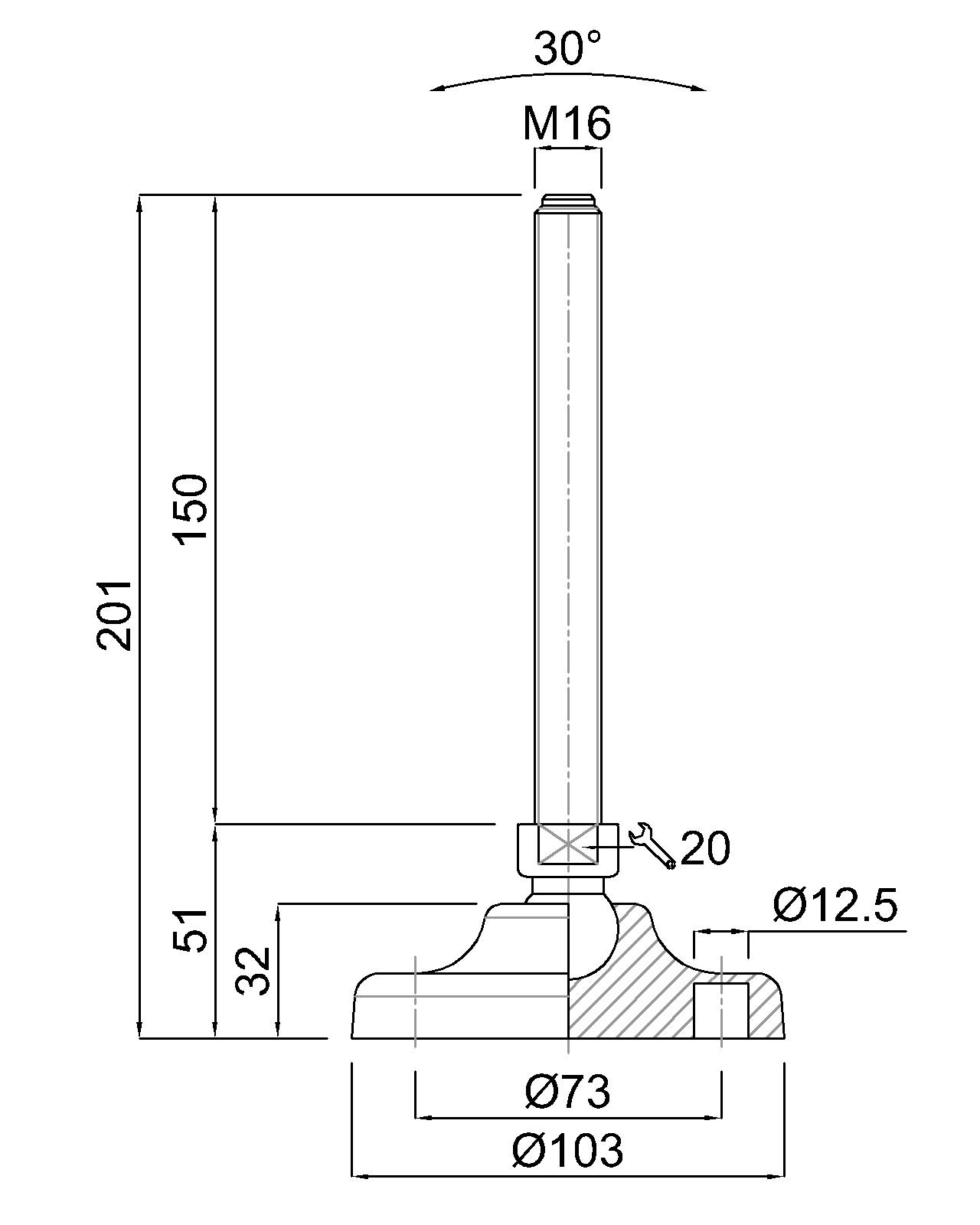

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
