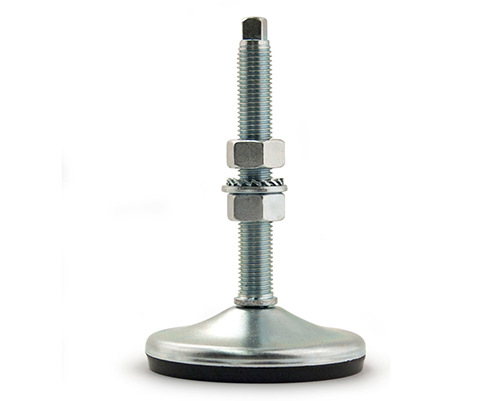

Levelling foot ANTIVIBRATION, Ø 120 mm Steel, M20 x 125 mm, incl. Nut, NBR
Discover our Antivibration Levelling Foot, featuring a 120 mm steel base and M20 x 125 mm galvanized screw. With NBR anti-slip properties and dynamic load capacity of 6,000 N, it ensures stability and optimal vibration damping.
| Quantity | Price |
|---|---|
| From 1 |
€24.02*
|
| From 5 |
€23.70*
|
| From 15 |
€23.38*
|
| From 50 |
€22.59*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | Yes |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |

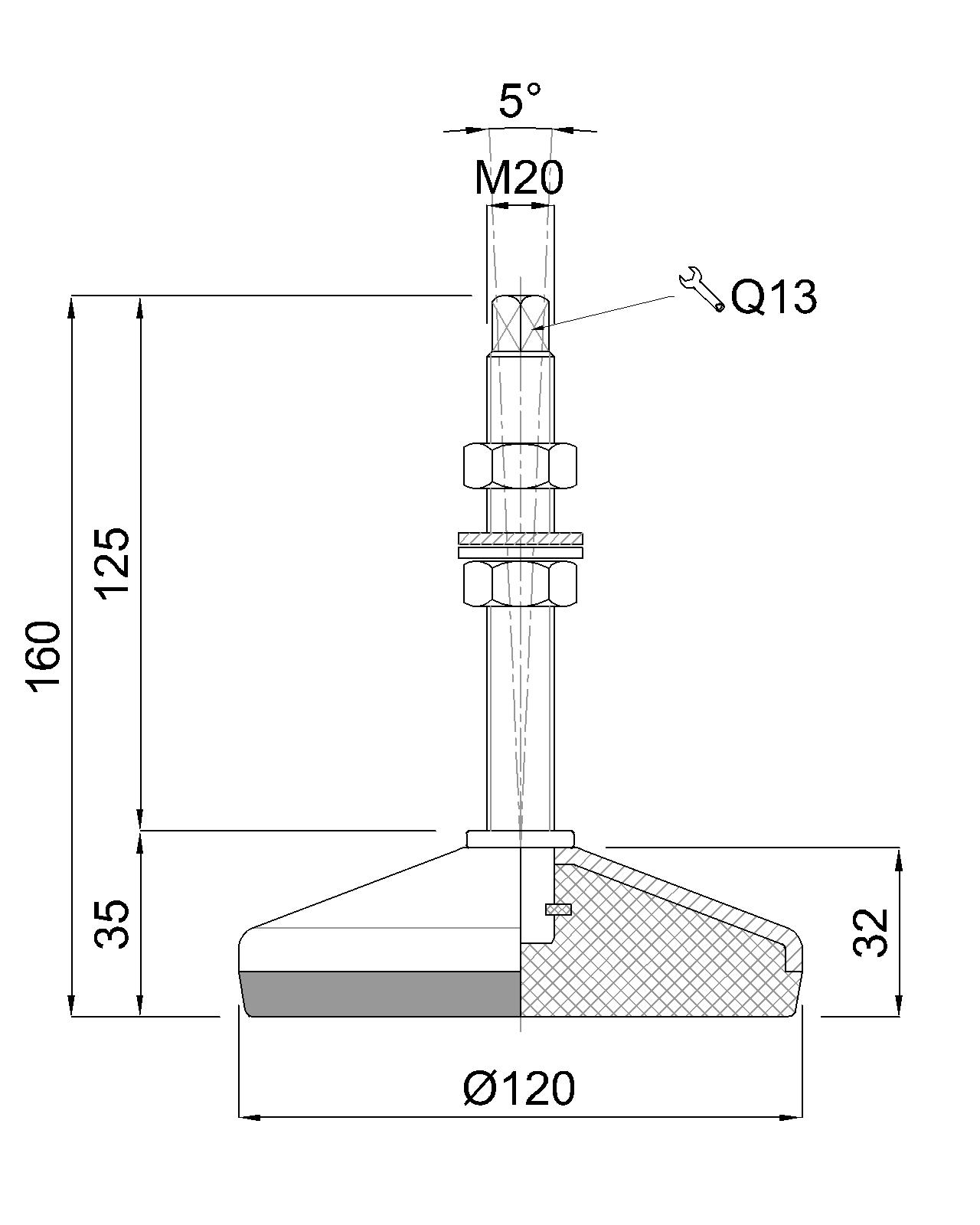

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
