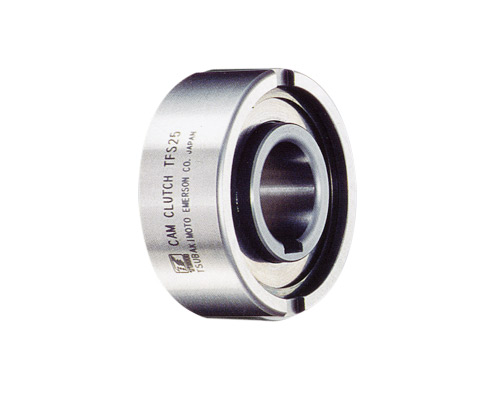

Clamp body freewheel unit Ø 25 X Ø 62 TFS25 TSUBAKI
EAN
4061408054350
Type
37TFS25
The TFS25 Clamp Body Freewheel Unit features a compact design with a 25 mm inner diameter and a 62 mm outer diameter, providing up to 128 Nm of torque. Ideal for precise applications.
| Quantity | Price |
|---|---|
| From 1 |
€141.39*
|
| From 4 |
€135.09*
|
| From 50 |
€130.59*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Product properties
| Ø Shaft: | 25 |
| Torque Nm: | 1 - 150 |
| Centrifugal force lifting: | No |
| Type/Variant: | TFS |
| Bearing: | No |
Technical drawing
Clamp body freewheel unit, inner Ø 25 mm H7, outer Ø 62 mm width 24 mm, Torque 128 Nm, keyway in inner ring 8 x 2,0 mm, with vertical keyway on outer ring
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
