Hygienic Spindles for Certified Machine Feet
Hygienic wheel spindles provide a height-adjustable stainless steel connection for swivel castors, support plates and mobile machine frames in food-processing and other washdown-sensitive environments. MOVET offers USDA-certified TEKNOCLEAN spindles in M16, M20, M24 and M30, with different lengths and M12 male or female connection options for cleanable machine installations.
Hygienic Wheel Spindles for Food and Washdown Equipment
Hygienic wheel spindles provide an adjustable connection between machinery, frames, swivel castors and supporting plates. They are designed for equipment used in production areas where moisture, regular cleaning and cleanable machine construction must be considered.
MOVET supplies TEKNOCLEAN stainless steel threaded spindles in different thread sizes, lengths and connection designs. The range includes height-adjustable spindles for swivel castors as well as a compact M30 spindle for individual machine and levelling constructions.
Which Hygienic Spindle Suits the Construction?
The correct spindle depends on the main thread, required length and connection to the castor, mounting plate or adjoining machine component. The following overview explains the basic designs:
| Spindle design | Connection | Typical use |
|---|---|---|
| Castor spindle with male pin | M12 external thread | Connection to a castor or mounting plate with a compatible M12 female thread |

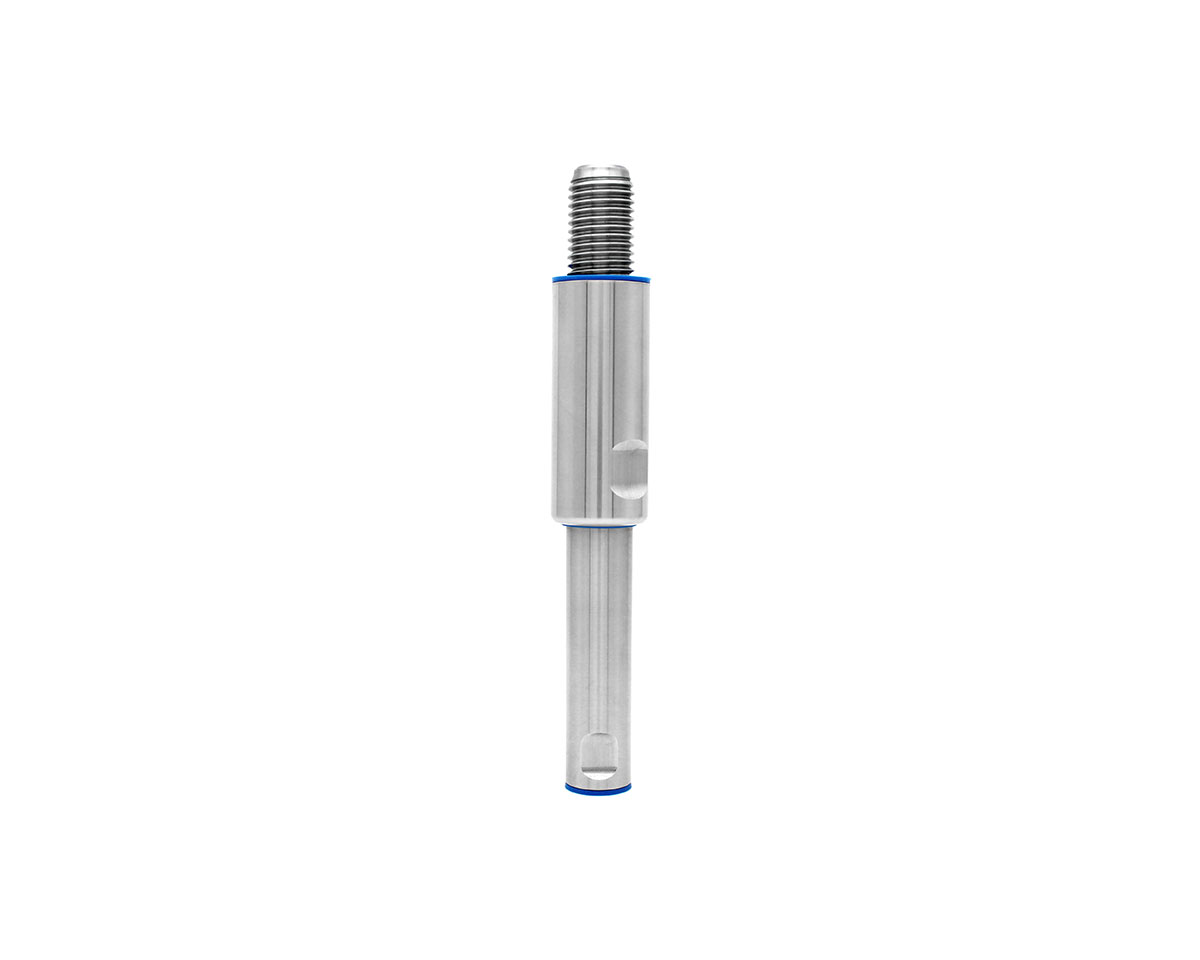

| Castor spindle with female thread | M12 internal thread | Connection to a castor or component with a compatible M12 threaded pin |

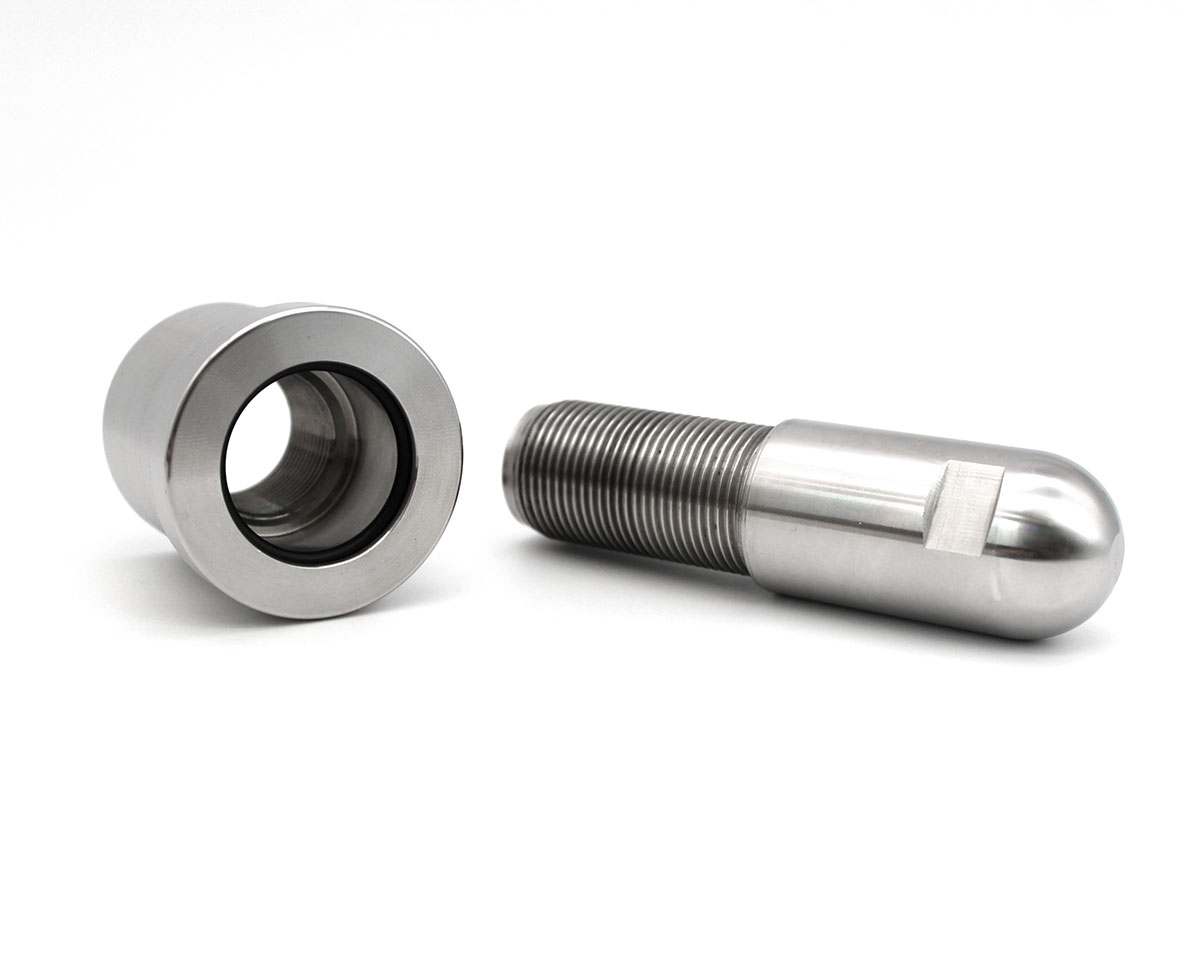

| M30 stainless steel spindle | M30 main thread with spanner flats | Individual machine, support and levelling constructions |
Male- and female-threaded connection designs are not interchangeable. Before ordering, compare the main thread, M12 connection, spindle length and technical drawing with the existing construction.
Select Stainless Steel Spindles by Thread and Length
The main thread must correspond to the threaded connection in the machine frame and the mechanical requirements of the installation. The available hygienic spindles cover the following dimensions:
| Main thread | Available spindle lengths | Connection options |
|---|---|---|
| M16 | 150 or 200 mm | M12 male pin or M12 female thread |
| M20 | 150 or 200 mm | M12 male pin or M12 female thread |
| M24 | 150 or 200 mm | M12 male pin or M12 female thread |
| M30 | 100 mm | Standalone spindle with spanner flats |
A larger thread does not automatically provide the correct load capacity for every application. Thread engagement, spindle extension, material of the mating component, side loads and the design of the attached castor or support plate must also be evaluated.
Height-Adjustable Spindles for Precise Machine Positioning
The installation height is adjusted by screwing the stainless steel spindle into or out of the corresponding threaded support. This allows a machine, work table, frame or castor assembly to be aligned to the required operating height or ground clearance.
The 150 mm castor spindles provide an adjustment range of 85 to 130 mm. The 200 mm versions cover an adjustment range of 110 to 180 mm. The actual usable range also depends on the mating structure and the minimum thread engagement required for a stable connection.
The spindle must not be extended beyond the permitted adjustment range. Insufficient thread engagement can reduce stability and increase the bending load acting on the threaded spindle.
Hygienic Spindles for Swivel Castors
TEKNOCLEAN wheel spindles combine a height-adjustable stainless steel thread with a compatible castor or support plate. They can be used to make machines, work tables and mobile frames both movable and adjustable in hygiene-sensitive production environments.

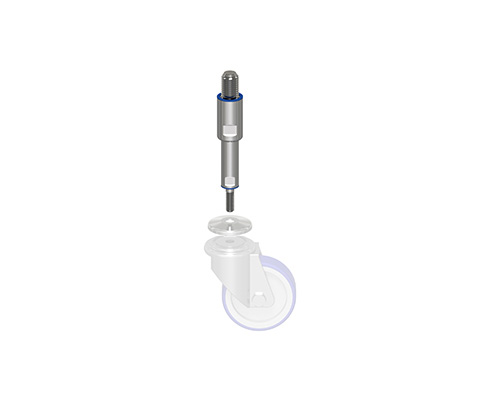

Depending on the machine design, the spindle can be selected with an M12 × 37 mm male pin or an M12 × 15 mm female thread. The connection type must match the mounting point on the castor or adjoining component.
The castor is not included with the individual spindle. Compatible support plates with diameters of 60 or 80 mm are available separately. Suitable products can be found under castors and wheels and accessories for wheels .
USDA-Certified Stainless Steel Spindles
The TEKNOCLEAN hygienic wheel spindles are manufactured from stainless steel and are available with USDA hygiene certification. Their construction is intended for machinery used in wet and regularly cleaned food-processing and industrial environments.
A blue silicone gasket seals the transition between the threaded spindle and guide sleeve. The contrasting colour makes damage, contamination or a missing sealing element easier to identify during visual inspection.
Certification of the spindle alone does not confirm that the complete machine is hygienically designed. The castor, mounting plate, threaded connection, fasteners and surrounding components must also be suitable for the intended cleaning procedure.
Installing and Cleaning Hygienic Threaded Spindles
Before installation, the threads should be clean, undamaged and free from foreign material. The spindle must engage sufficiently deeply in the mating thread and should be loaded as axially as possible.
Permanent side loads, misalignment or insufficient thread support can place additional stress on the spindle and adjoining component. Mobile equipment must also be assessed for castor load, travelling forces, braking forces, impacts and uneven floor conditions.
During cleaning, inspect the threaded area, guide sleeve, silicone gasket and castor connection. A damaged or permanently deformed gasket should be replaced. Material suitability should be reassessed whenever the cleaning chemical, concentration or operating temperature changes.
Select and Buy Hygienic Wheel Spindles
Use the product filters to select the stainless steel spindles by spindle diameter, length and hygiene certification. Then compare the technical drawing, adjustment range and connection type with the planned machine or castor construction.
For a swivel-castor installation, determine whether an M12 male pin or M12 female thread is required. For stationary support and levelling applications, the footplate, expected load, installation height and required floor contact area must also be considered.
Suitable stationary supports are available under certified hygienic levelling feet . MOVET also supplies matching castors, support plates and connection components for cleanable machine installations.
