Hygienic Bearings for Certified Machinery
Unsere Hygiene-Lager bestehen aus korrosionsbeständigen Materialien und sind speziell für den Einsatz in hygienekritischen Umgebungen entwickelt. Sie bieten eine zuverlässige Wellenlagerung und sind leicht zu reinigen.
MOVET® 3-hole flange bearing FBL 206, housing white, MB stainless steel, Ø 30 mm

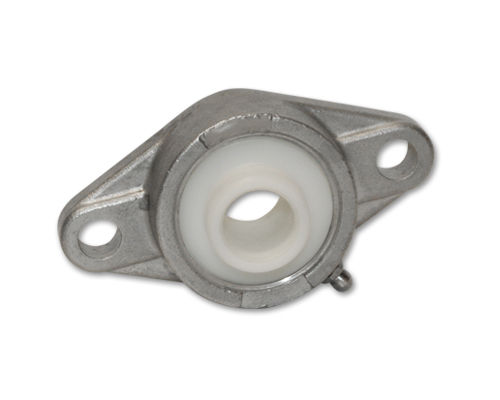

MOVET® 2-hole flange bearing SFL 202, housing inox, PNS POM, Ø 15 mm
MOVET® Pillow block bearing PPL 208, housing white, MB stainless steel, Ø 40 mm
MOVET® Blue Hygienic Take up bearing unit TPL 204, housing blue, MB stainless steel, Ø 20 mm

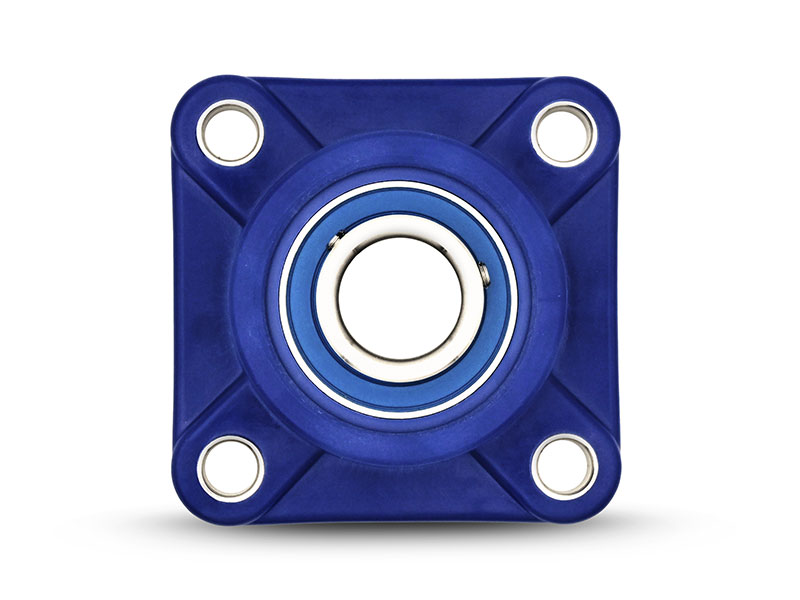

MOVET® Blue Hygienic 4-hole flange bearing FPL 208, housing blue, MB stainless steel, Ø 40 mm
MOVET® 2-hole flange bearing SFL 210, housing inox, MB stainless steel, Ø 50 mm
MOVET® Pillow block bearing PPL 206, housing white, MB stainless steel, Ø 30 mm
MOVET® 2-hole flange bearing NFL 204, housing white, MB stainless steel, Ø 20 mm

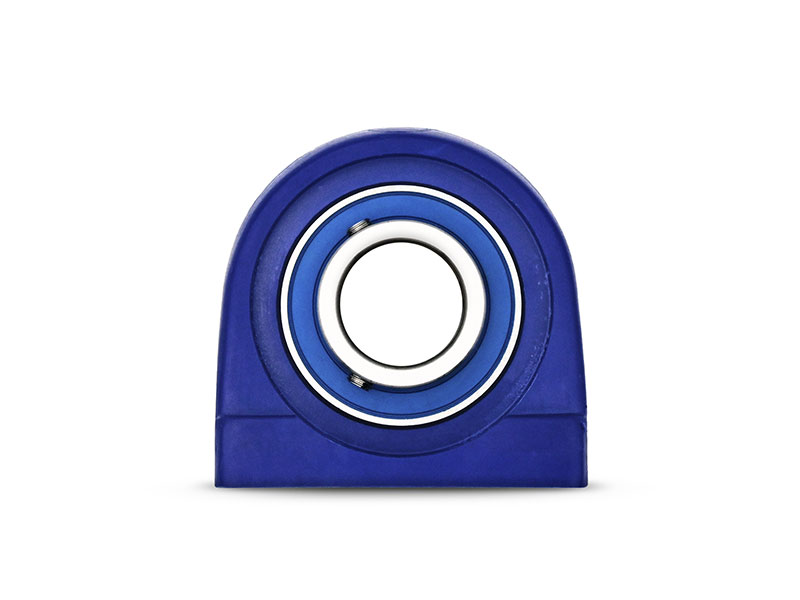

MOVET® Waterproof IP69K Pillow block bearing TBLW 206, housing blue, MB stainless steel, Ø 30 mm

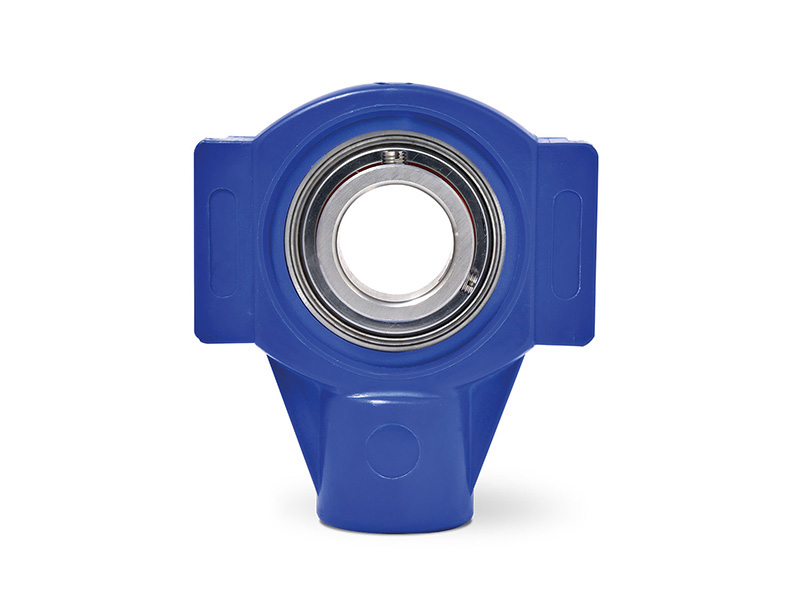

MOVET® Blue Hygienic Take up bearing unit TPL 201, housing blue, MB stainless steel, Ø 12 mm

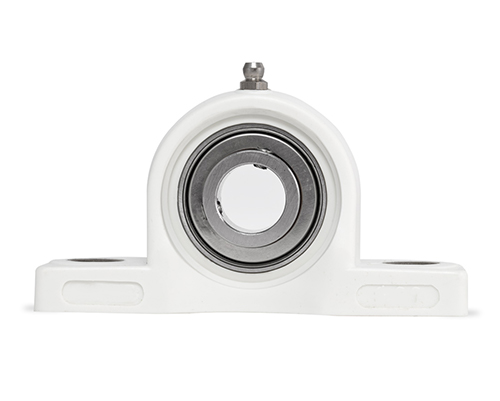

MOVET® Pillow block bearing PPL 205, housing white, MB stainless steel, Ø 25 mm

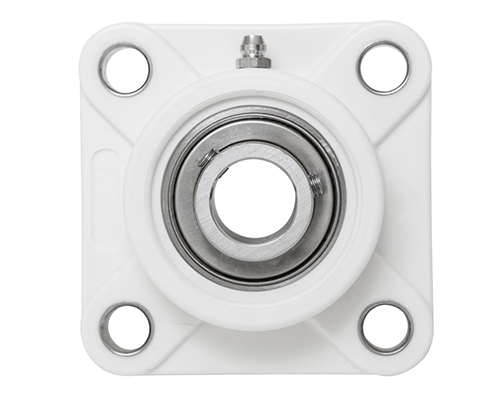

MOVET® 4-hole flange bearing FPL 210, housing white, MUC stainless steel, Ø 50 mm
MOVET® 4-hole flange bearing SF 205, housing inox, PNS POM, Ø 25 mm

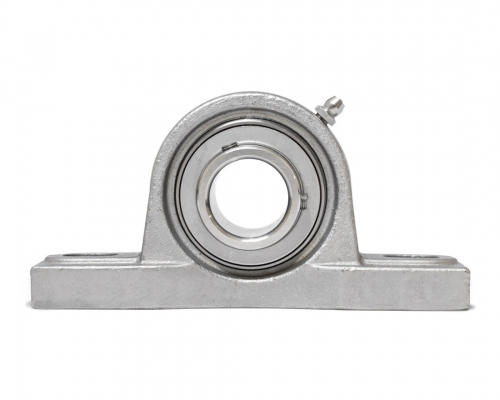

MOVET® Pillow block bearing SP 206, housing inox, MUC stainless steel, Ø 30 mm

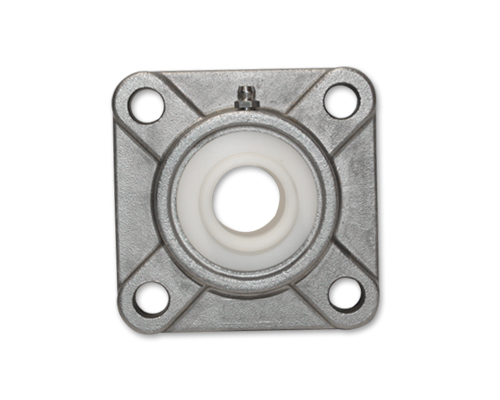

MOVET® 4-hole flange bearing SF 204, housing inox, PNS POM, Ø 20 mm

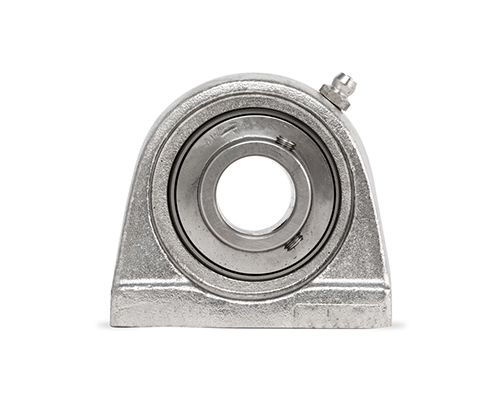

MOVET® Pillow block bearing SPA 207, housing inox, MUC stainless steel, Ø 35 mm

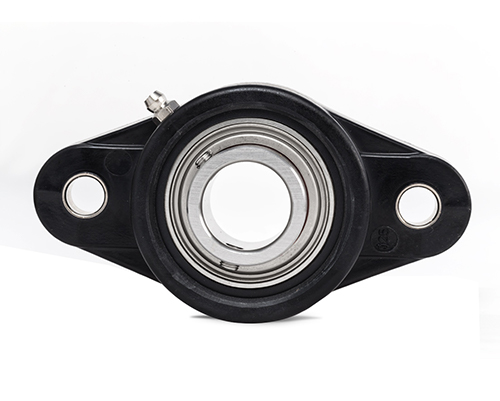

MOVET® 2-hole flange bearing NFL 209, housing black, MUC stainless steel, Ø 45 mm
MOVET® 2-hole flange bearing SFL 201, housing inox, MUC stainless steel, Ø 12 mm

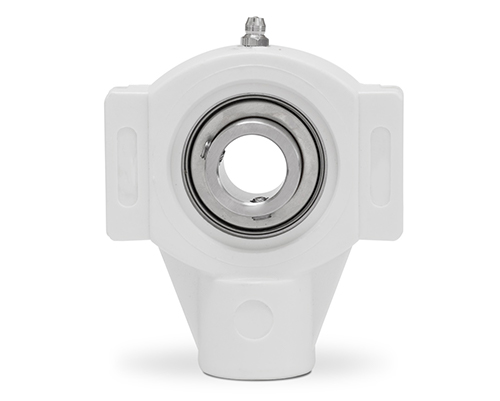

MOVET® Take up bearing unit TPL 206, housing white, MUC stainless steel, Ø 30 mm

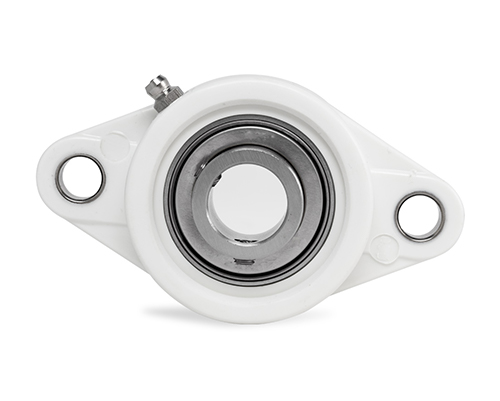

MOVET® 2-hole flange bearing NFL 206, housing white, MB stainless steel, Ø 30 mm

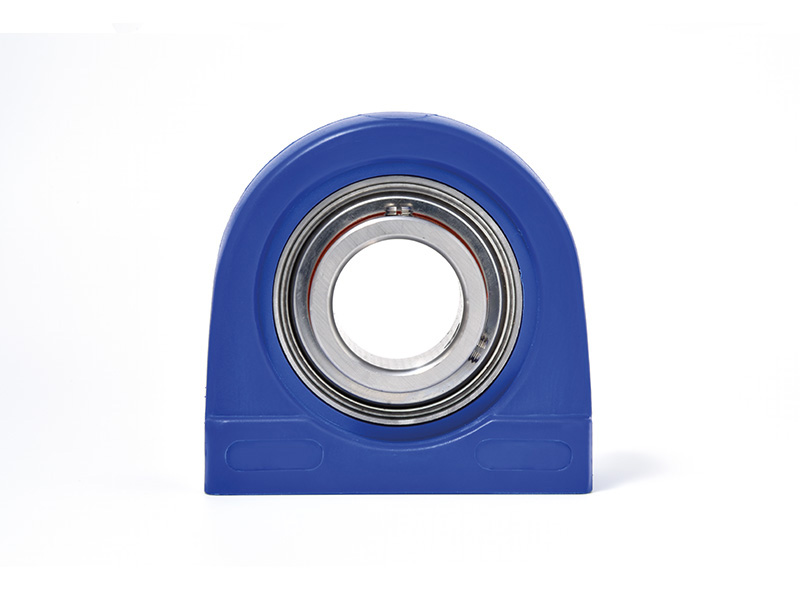

MOVET® Waterproof IP69K Pillow block bearing TBLW 201, housing blue, MB stainless steel, Ø 12 mm
MOVET® 2-hole flange bearing NFL 201, housing white, MUC stainless steel, Ø 12 mm

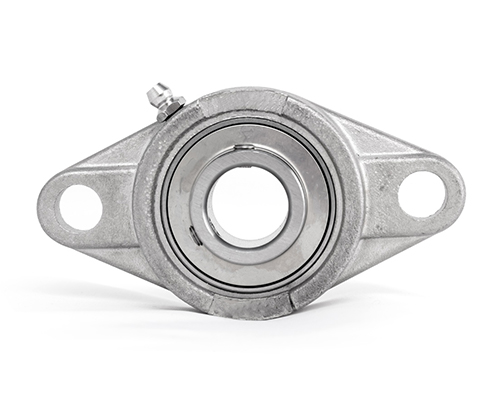

MOVET® 2-hole flange bearing SFL 204, housing inox, MUC stainless steel, Ø 20 mm

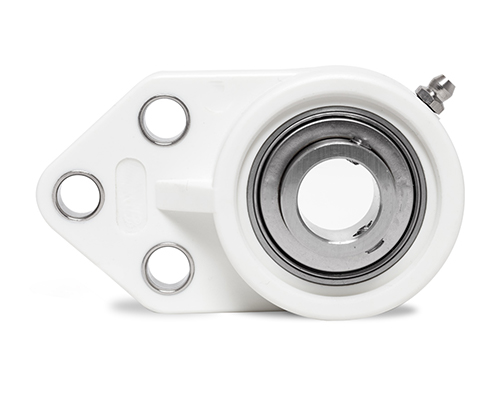

MOVET® 3-hole flange bearing FBL 203, housing white, MB stainless steel, Ø 17 mm
Hygienic Bearings for Food and Washdown Applications
Hygienic bearings provide reliable shaft support in machinery and production systems with increased requirements for cleanliness, corrosion resistance and regular cleaning. Typical applications include conveyor systems, packaging machinery and processing equipment in the food, beverage and pharmaceutical industries.
The MOVET range includes hygienic flange bearing units, pillow block bearings and take-up units with plastic or stainless steel housings. Depending on the application, MOVET Blue bearing units, Blue Waterproof versions, stainless steel bearing units and standard designs are available.
Which Hygienic Bearing Unit Is Suitable for the Application?
The appropriate product family depends primarily on the cleaning conditions, required sealing concept, housing material and installation environment. The following comparison provides an initial overview:
| Product family | Design features | Typical selection criteria |
|---|---|---|
| MOVET Blue | Blue plastic housing with a corrosion-resistant bearing insert | Hygienic machine design and improved visual detectability |
| Blue Waterproof | Additionally sealed bearing unit, with selected models rated to IP69K | Wet areas and intensive washdown processes |
| Stainless steel | Corrosion-resistant stainless steel housing and different bearing insert options | Moisture, regular cleaning and demanding industrial environments |
| Standard | Plastic housings in different colours with various bearing inserts | Industrial applications without the need for a complete waterproof sealing system |
Selecting Hygienic Bearings by Housing Design
The housing design must match the mounting position, available installation space and bolt pattern of the machine. 2-bolt flange bearings are suitable for compact mounting surfaces, while 3-bolt flange bearings use a triangular mounting pattern. 4-bolt flange bearings are fixed through four mounting points.
Pillow block bearings are designed for mounting on horizontal machine surfaces. Take-up bearing units are used where the bearing position must remain adjustable within a guide, for example when tensioning shafts or conveyor components.

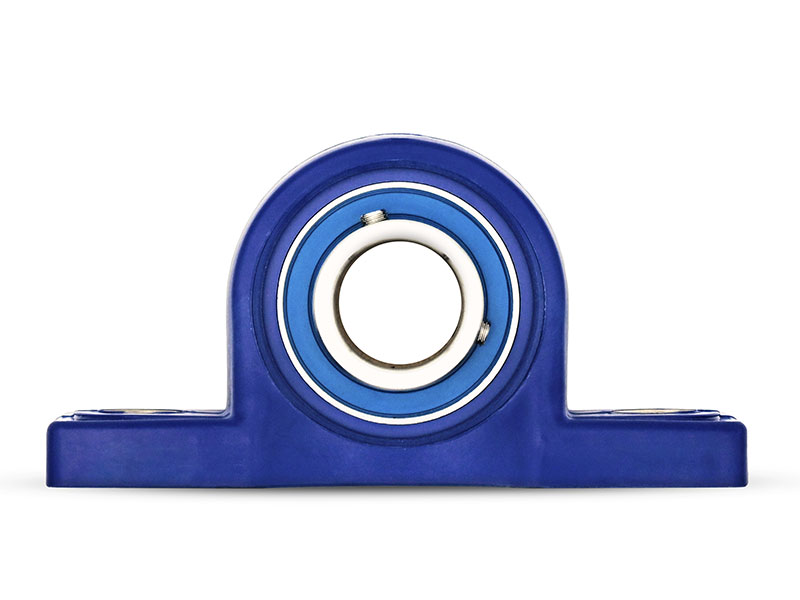

MOVET Blue Hygienic Bearing Units
MOVET Blue hygienic bearings combine a blue plastic housing with a corrosion-resistant bearing insert. The distinctive colour provides a clear visual contrast in many food-processing and hygiene-sensitive production areas and can make damaged or detached housing material easier to identify.
The range includes different flange bearing units, pillow block bearings and take-up units. In addition to the shaft diameter, the bolt pattern, housing dimensions, bearing centre height and available installation space must be considered when selecting the appropriate unit.
Blue Waterproof Bearings for Intensive Washdown
MOVET Blue Waterproof bearing units are designed for machine areas with increased sealing requirements. The waterproof bearing solutions combine a hygienically designed housing with additional protection around the bearing and shaft. Selected models are available with an IP69K protection rating.
The sealing performance depends on the complete combination of bearing housing, bearing insert, protective cap, shaft seal and correct installation. Suitability for high-pressure cleaning, elevated cleaning temperatures and specific cleaning agents must therefore be checked using the technical data of the selected bearing unit.
Check Shaft Diameter, Bolt Spacing and Bearing Insert
Hygienic bearing units are available for shaft diameters from 12 to 60 mm. The shaft diameter alone is not sufficient to determine the correct bearing unit. Bolt spacing, housing height, shaft centre position and available mounting area must also correspond to the machine design.
Depending on the product, different stainless steel or plastic bearing inserts are available. Load capacity, permitted speed, sealing performance and resistance to operating media are determined by the complete combination of housing, bearing insert and operating conditions. The product-specific technical data should therefore always be checked before selection.
Protective Caps and Shaft Seals for Hygienic Bearings
Protective caps cover exposed bearing and shaft areas. Closed caps are suitable for housing sides without a through-shaft, while open versions protect the bearing area around a continuous shaft.
Shaft seals can provide additional protection against moisture and contamination at the transition between the stationary bearing housing and rotating shaft. All accessories must match the housing size, product series and shaft diameter. Suitable components are available under accessories for bearing housings .
Select and Buy Hygienic Bearing Units
Use the product filters to narrow down the available hygienic bearings by product family, shaft diameter, housing design, housing material, bolt spacing and bearing insert. Waterproof versions and units suitable for protective caps or shaft seals can also be selected directly.
Before ordering, compare the technical drawings and mounting dimensions with the existing machine. The selection should also take account of load, speed, temperature, cleaning agents and cleaning processes. Where the required design is not available as a standard product, MOVET can assist with selecting a suitable hygienic bearing solution.
